Home >> Buick >> 2002 >> LeSabre Custom, 4T65E/MN3 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Rear Integration Module (RIM) Connector End View C1

Rear Integration Module (RIM) Connector End View C1

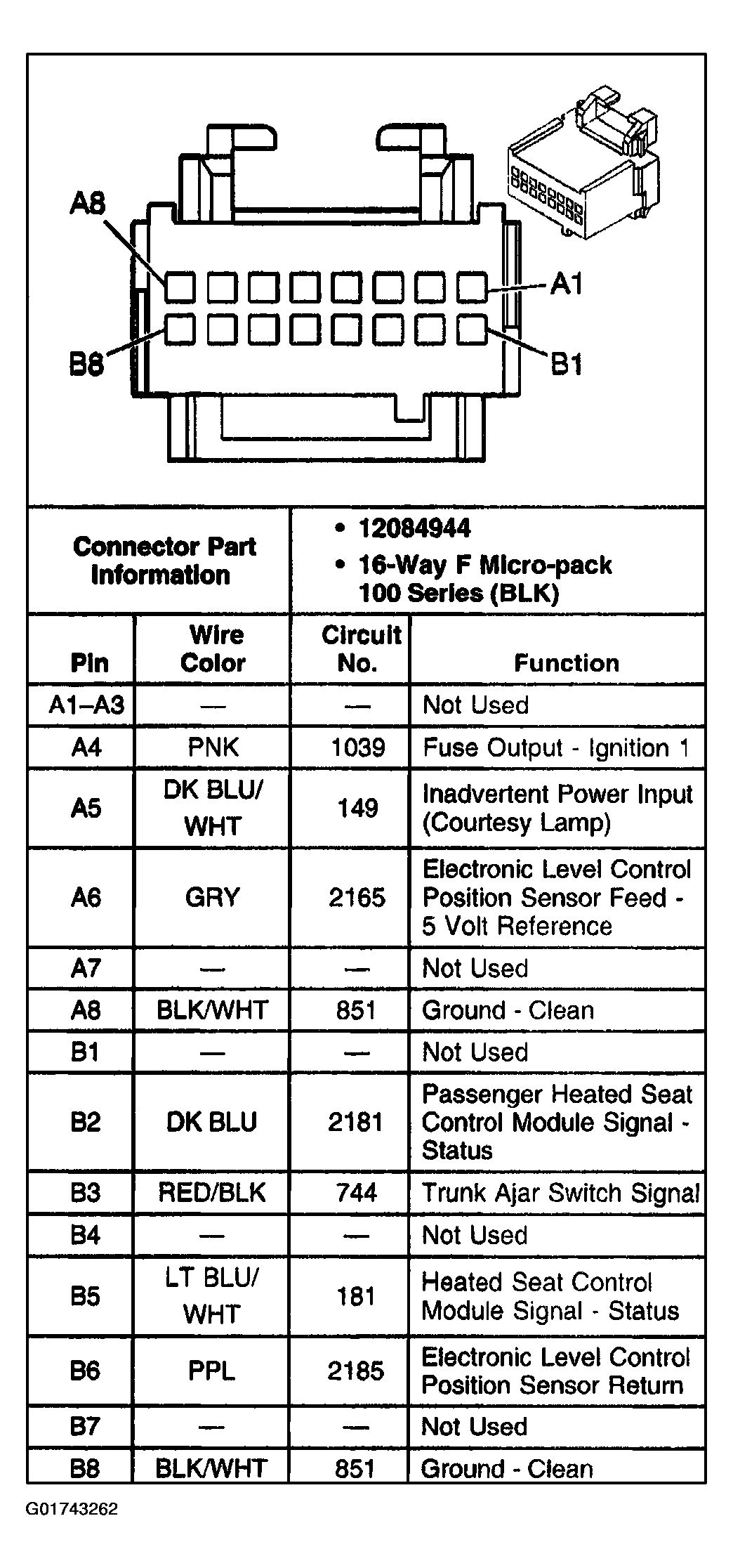

Fig 1: Rear Integration Module (RIM) C1, Connector End View
G01743262Courtesy of GENERAL MOTORS CORP.


Fig 1: Rear Integration Module (RIM) C1
G01743041Courtesy of GENERAL MOTORS CORP.
