Installation Procedure

  1. Connect the electrical connector to the memory seat switch.
  2. Align the memory switch to the opening in the door trim panel.
  3. Snap the memory seat switch into the door trim panel.

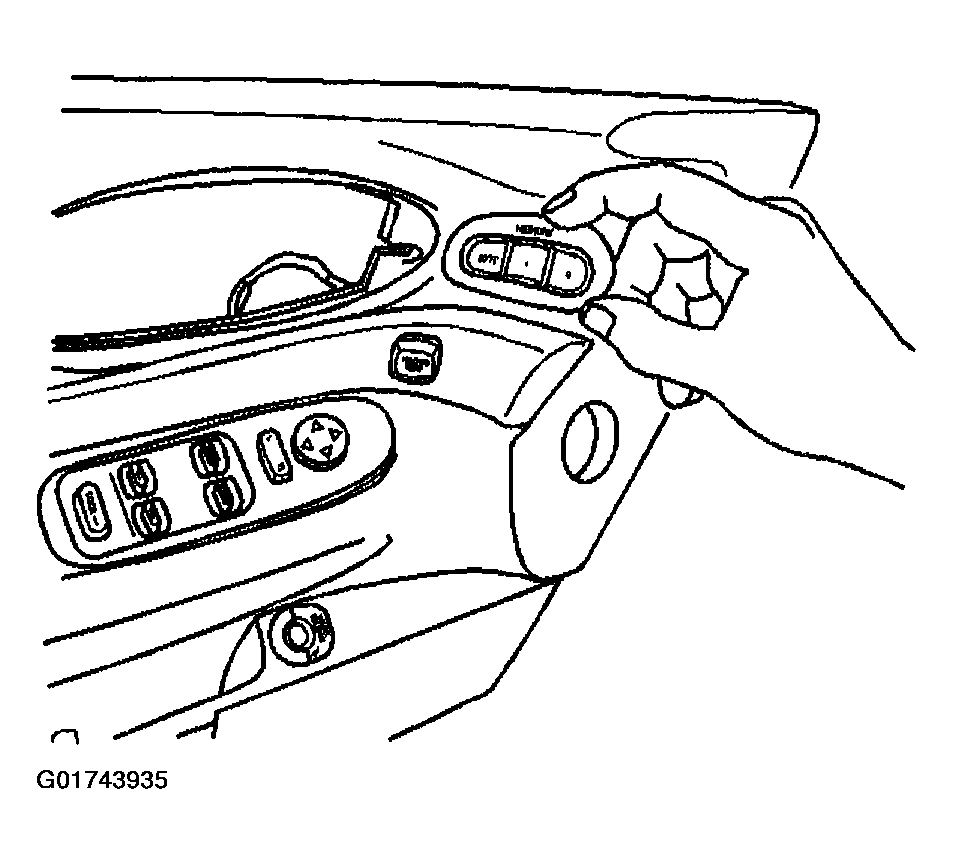

    4. Fig 1: Snapping Memory Seat Switch Into Door Trim Panel
    G01743935Courtesy of GENERAL MOTORS CORP.
