Connector Terminal Identification
>>
Hazard Lamp/Turn Signal
>>
Century & Regal
Century & Regal

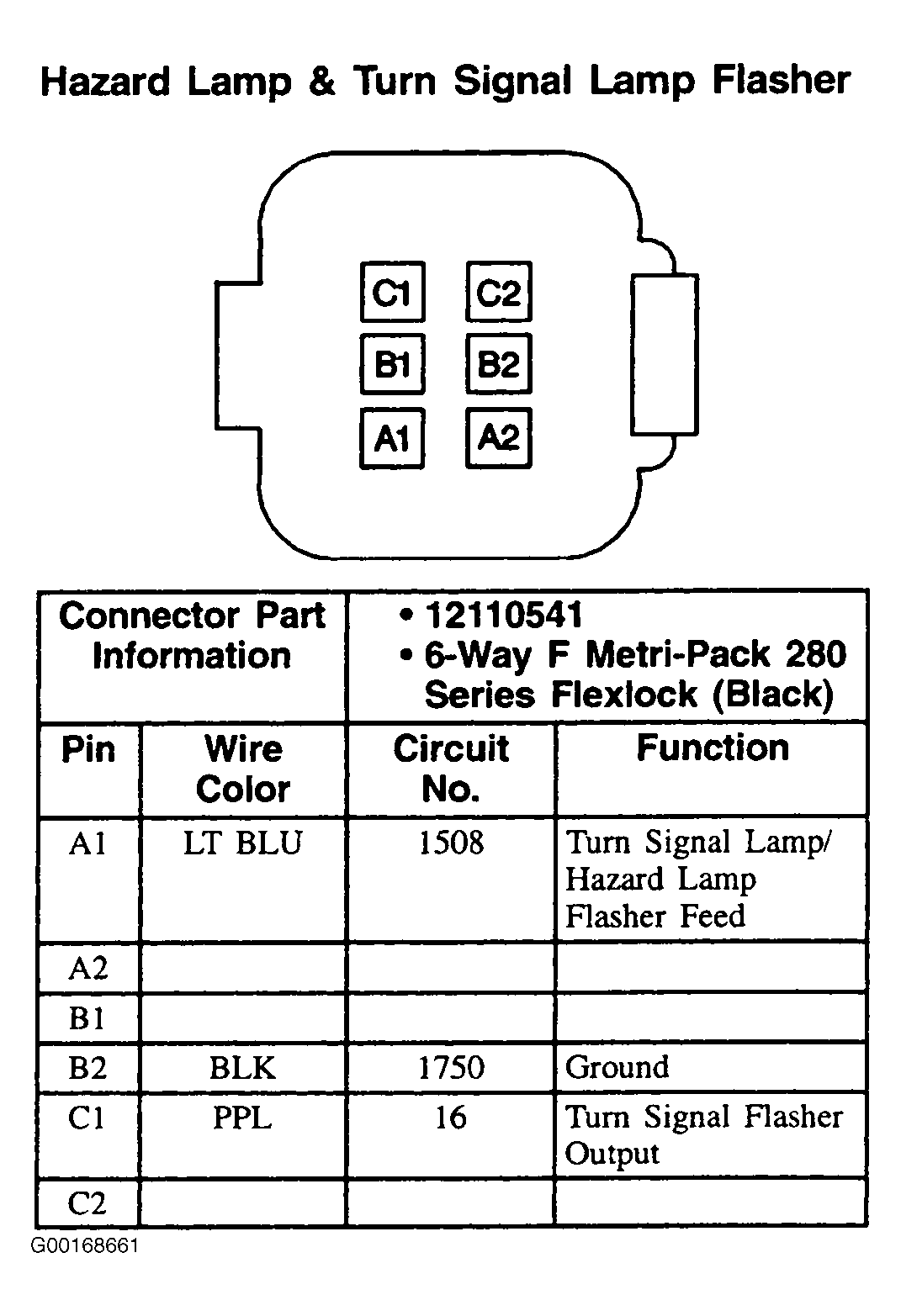

Fig 1: Hazard Lamp & Turn Signal Lamp Flasher (Century & Regal) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
