Fuel Tank C2

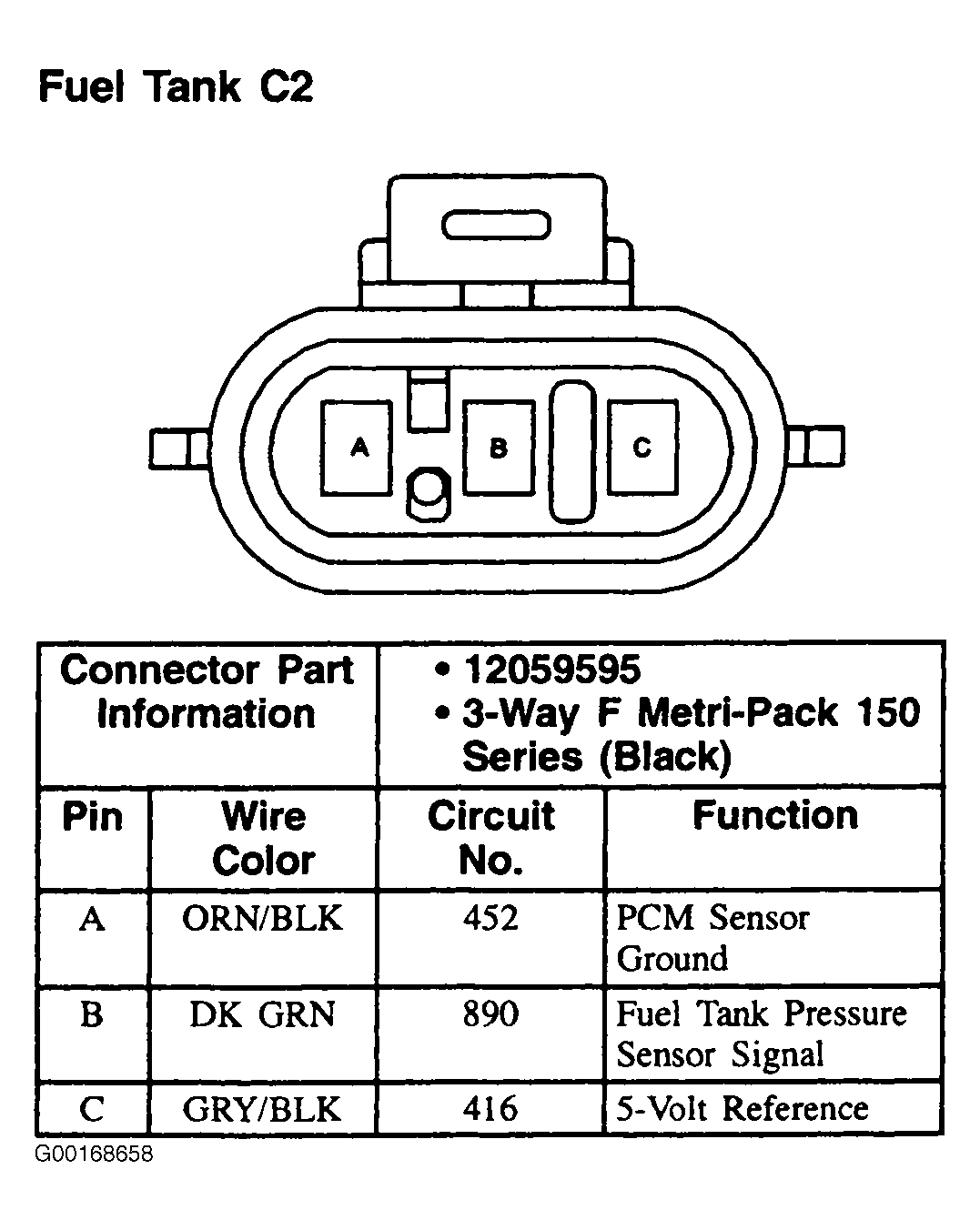

Fig 1: Fuel Tank C2 (Century & Regal) - 3-Pin Connector (Black)
G00168658Courtesy of GENERAL MOTORS CORP.
