Grand Prix

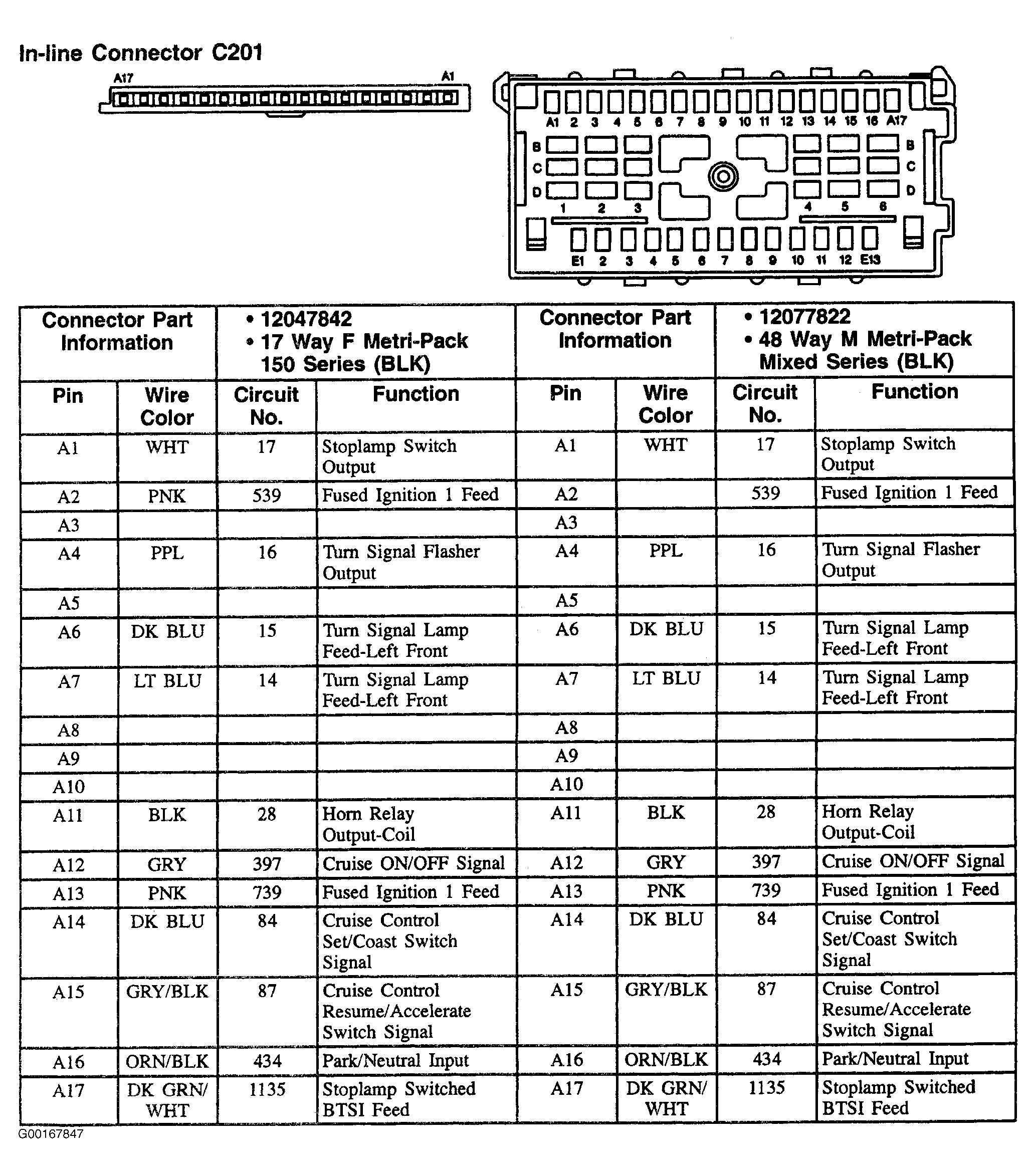

Fig 1: C201 (Grand Prix) - 17-Pin/48-Pin Connector (Row A, Black/Black)
G00167847Courtesy of GENERAL MOTORS CORP.

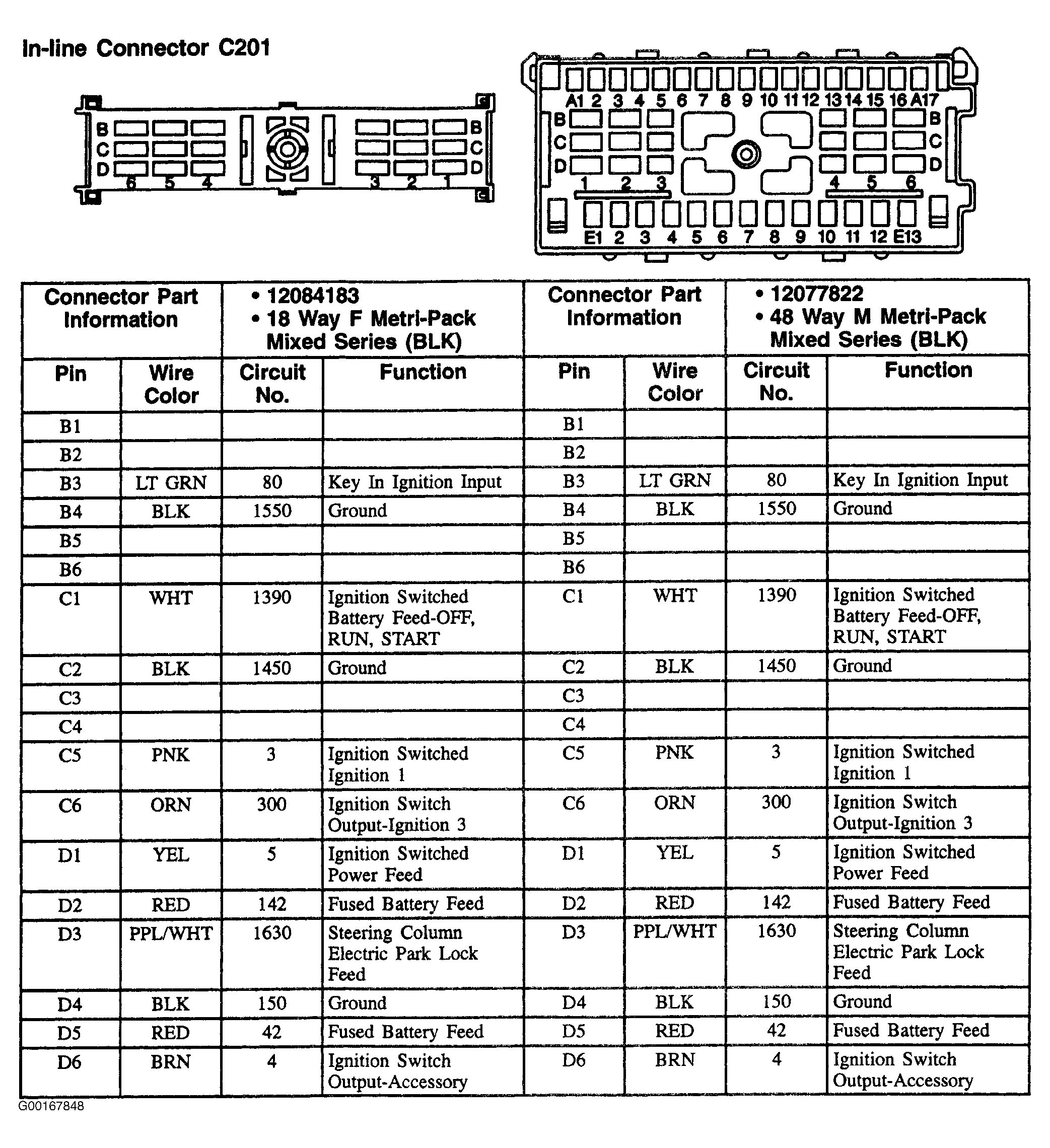

Fig 2: C201 (Grand Prix) - 18-Pin/48-Pin Connector (Row B-D, Black/Black)
G00167848Courtesy of GENERAL MOTORS CORP.

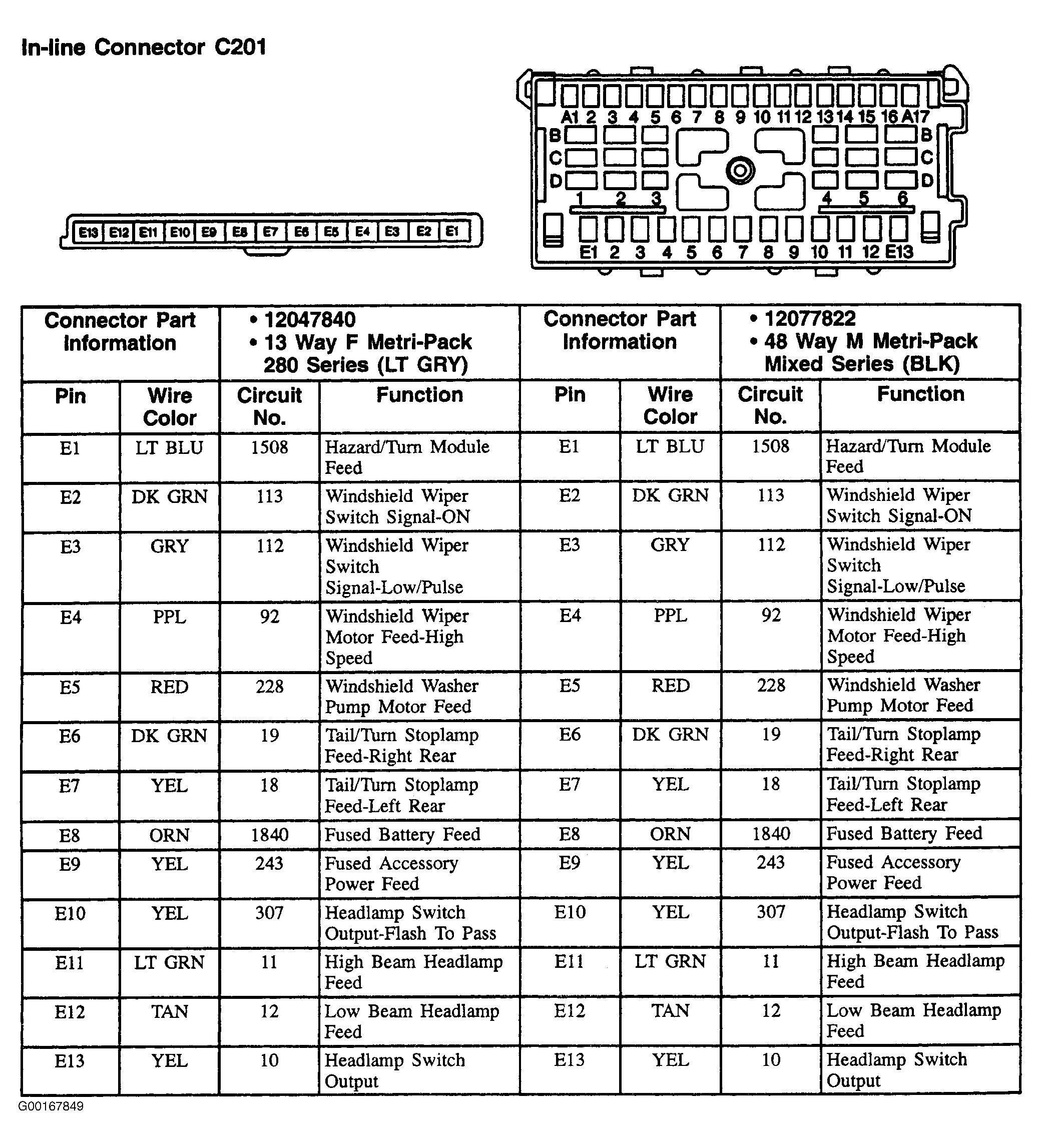

Fig 3: C201 (Grand Prix) - 13-Pin/48-Pin Connector (Row E, Light Gray/Black)
G00167849Courtesy of GENERAL MOTORS CORP.
