Air Drier Test
NOTE:
Air drier is tested to ensure valve maintains a minimum pressure of 8-14 psi (.56-.98 kg/cm2
) in air adjustable shock absorbers.

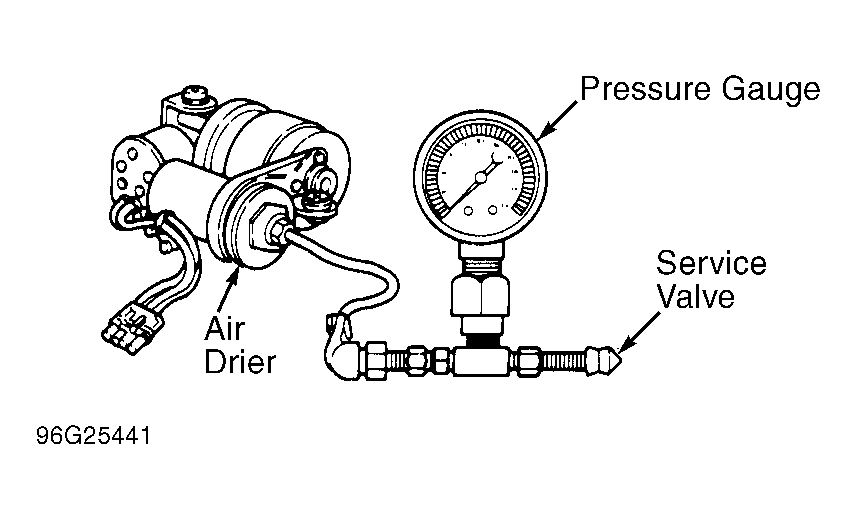

- Install Pressure Gauge (J-22124-B ) in line between air drier fitting at compressor and existing air line to shock absorbers. See Figure . Turn ignition on. Disconnect link from height sensor metal arm. Move arm upward to inflate shock absorbers. Move arm downward to deflate shock absorbers. Note pressure gauge reading.
- Turn ignition off and deflate shock absorbers through service valve on pressure gauge. Pressure gauge should read 8-14 psi (.56-.98 kg/cm2 ) after air adjustable shock absorbers are deflated. If air pressure reading is not within specification, replace air drier.
