Test D: Door Open Input Test

For test procedures, see Fig 1 .

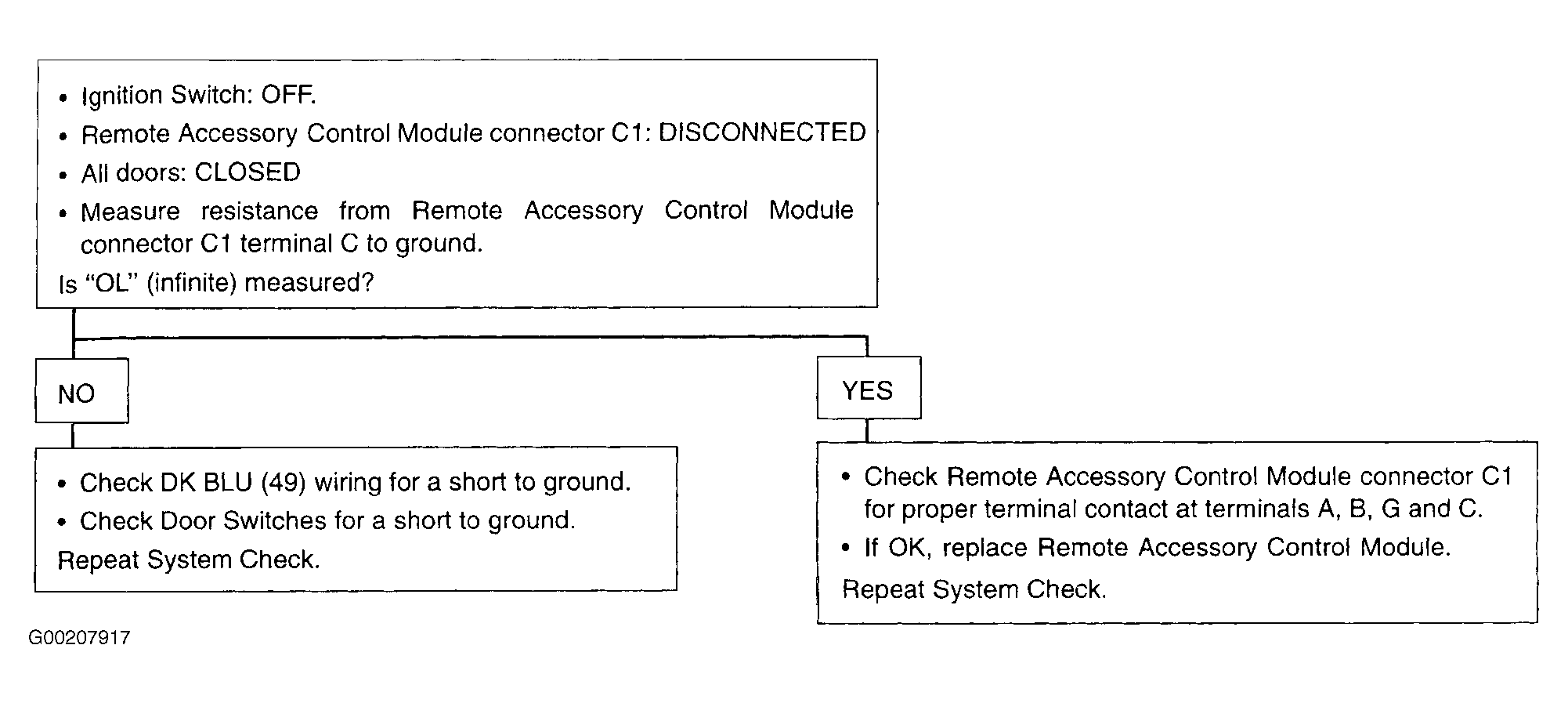

Fig 1: Test D: Door Open Input Test

G00207917

Courtesy of GENERAL MOTORS CORP.
