Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Data Link Connector (DLC) | Below Bottom Of Instrument Panel, Near Steering Column |

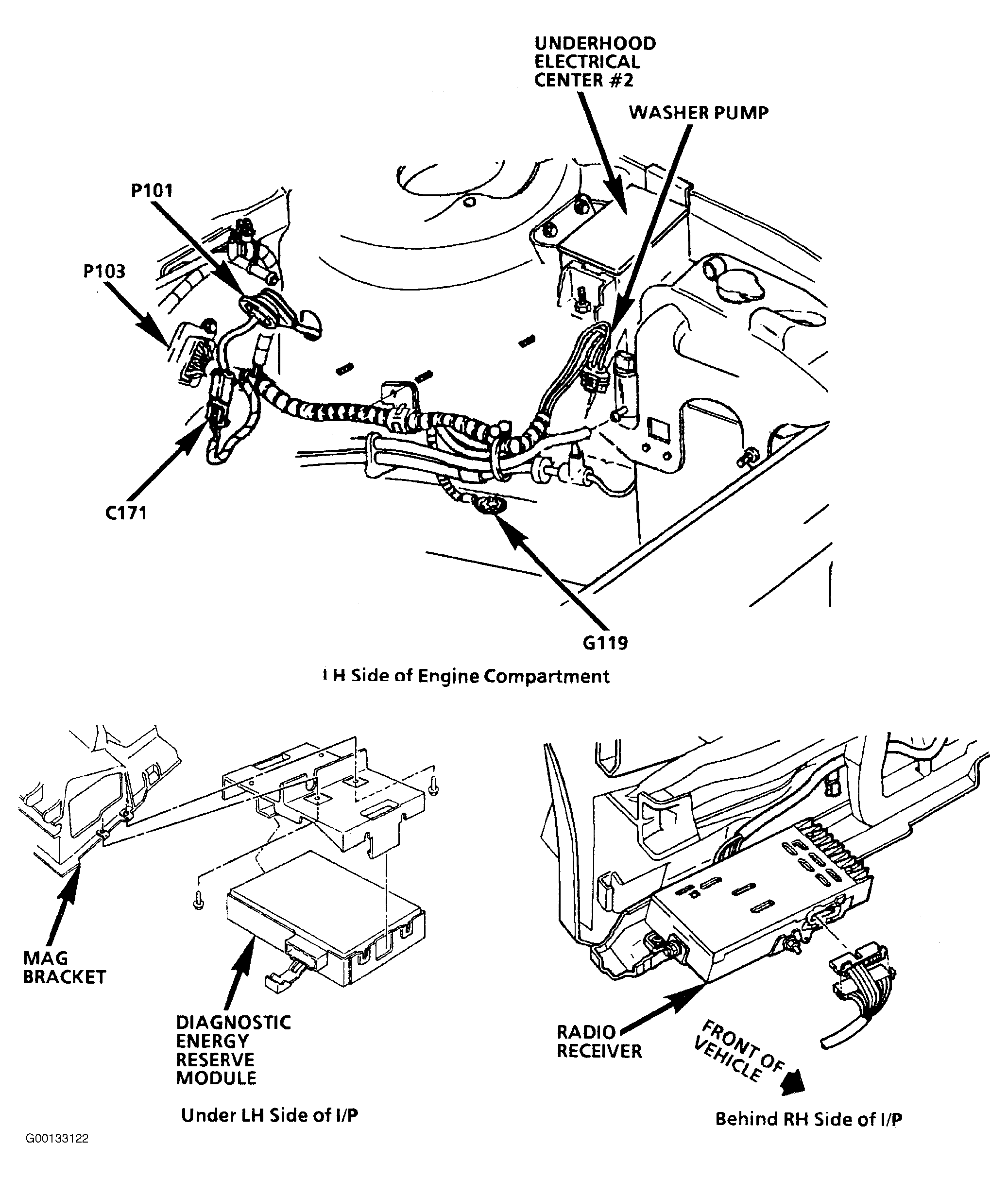

| Diagnostic Energy Reserve Module (DERM) | Behind Driver Side Of Instrument Panel, Left Of Steering Column. See Fig 1 |

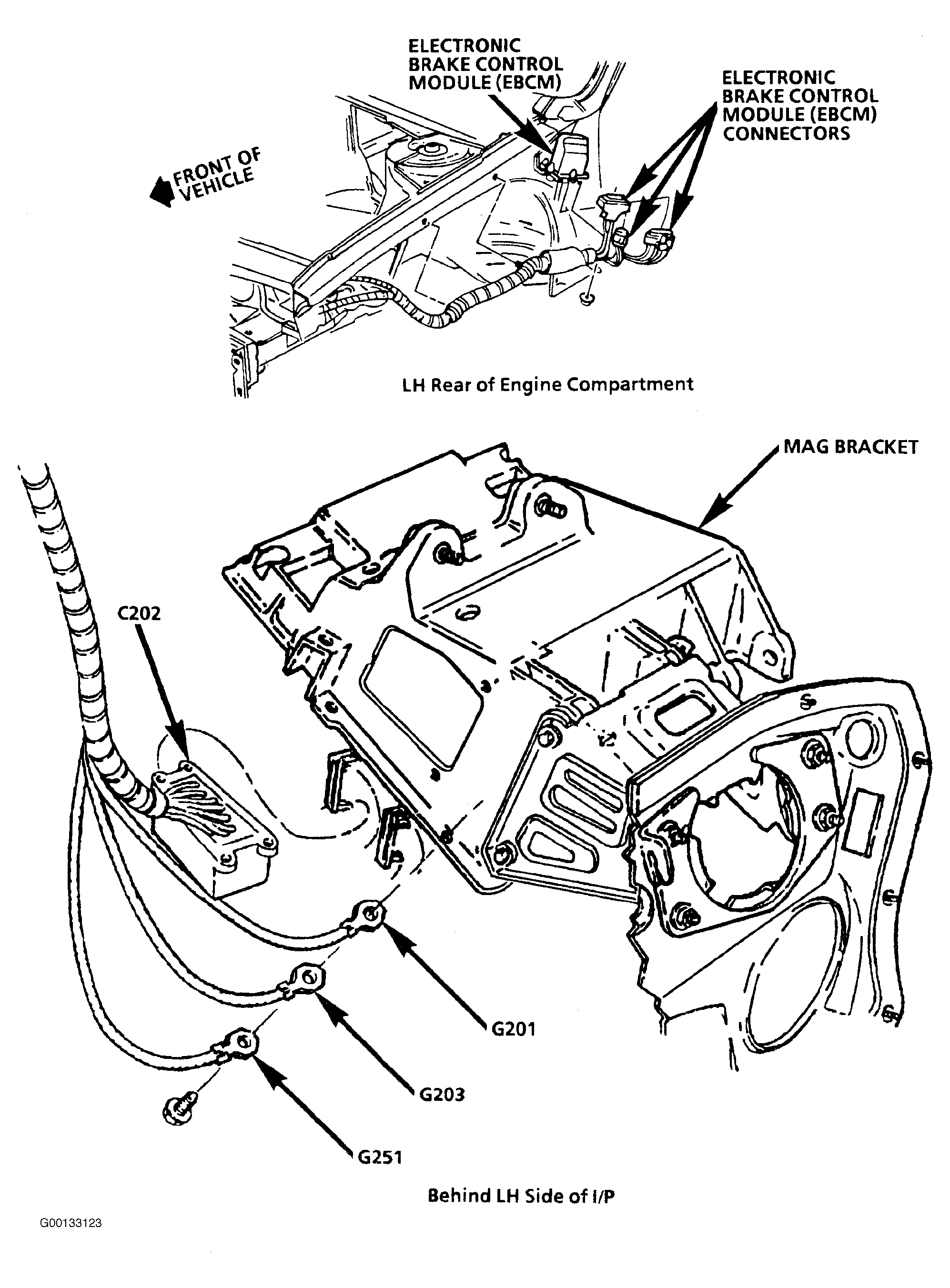

| Electronic Brake Control Module (EBCM) | Driver Side Of Engine Compartment, In Fender. See Fig 2 |
| Radio Control Interface Module | Driver Side Of Instrument Panel, Left Of Steering Column |

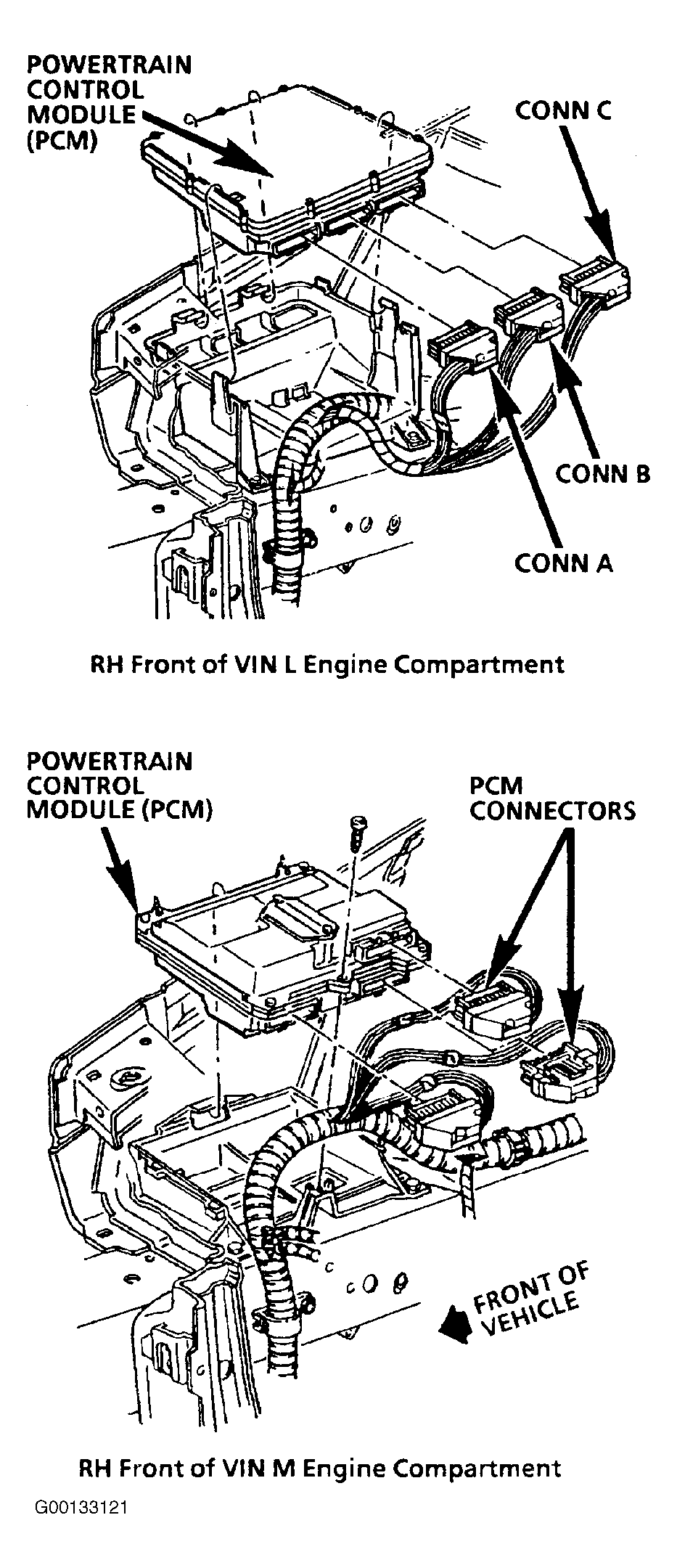

| Powertrain Control Module (PCM) | Behind Passenger Side Of Instrument Panel. See Fig 3 |
| Radio Receiver | Passenger Side Of Instrument Panel. See Fig 1 |
| C100 (36 Terminals) | Passenger Side Of Dash, Behind Strut Tower |
| C215 (10 Terminals) | Behind Driver Side Of Instrument Panel, Left Of Steering Column |
| G201 | Behind Instrument Panel, On Passenger Side Of Mag Bracket. See Fig 2 . |
| P103 | Driver Rear Side Of Engine Compartment, Near Strut Tower. See Fig 1 |
| S211 | Instrument Panel Harness, Near Radio Control Head Breakout |
| S225 | Instrument Panel Harness, Near Radio Control Head |
| S237 | Instrument Panel Harness, Near Headlight Switch Breakout |
