Wiring Diagrams

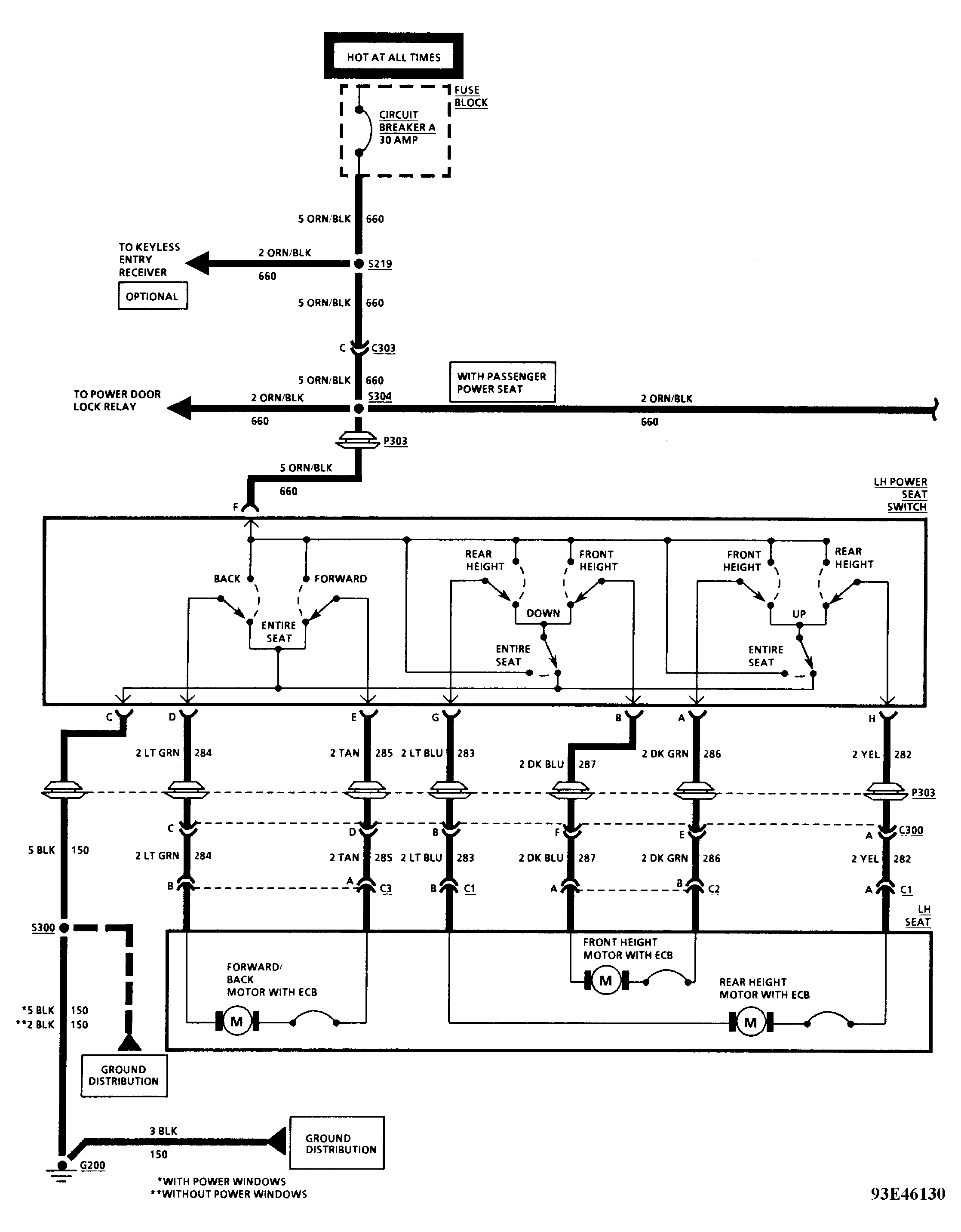

Fig 1: Power Seats Wiring Diagram (Caprice & Roadmaster - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.

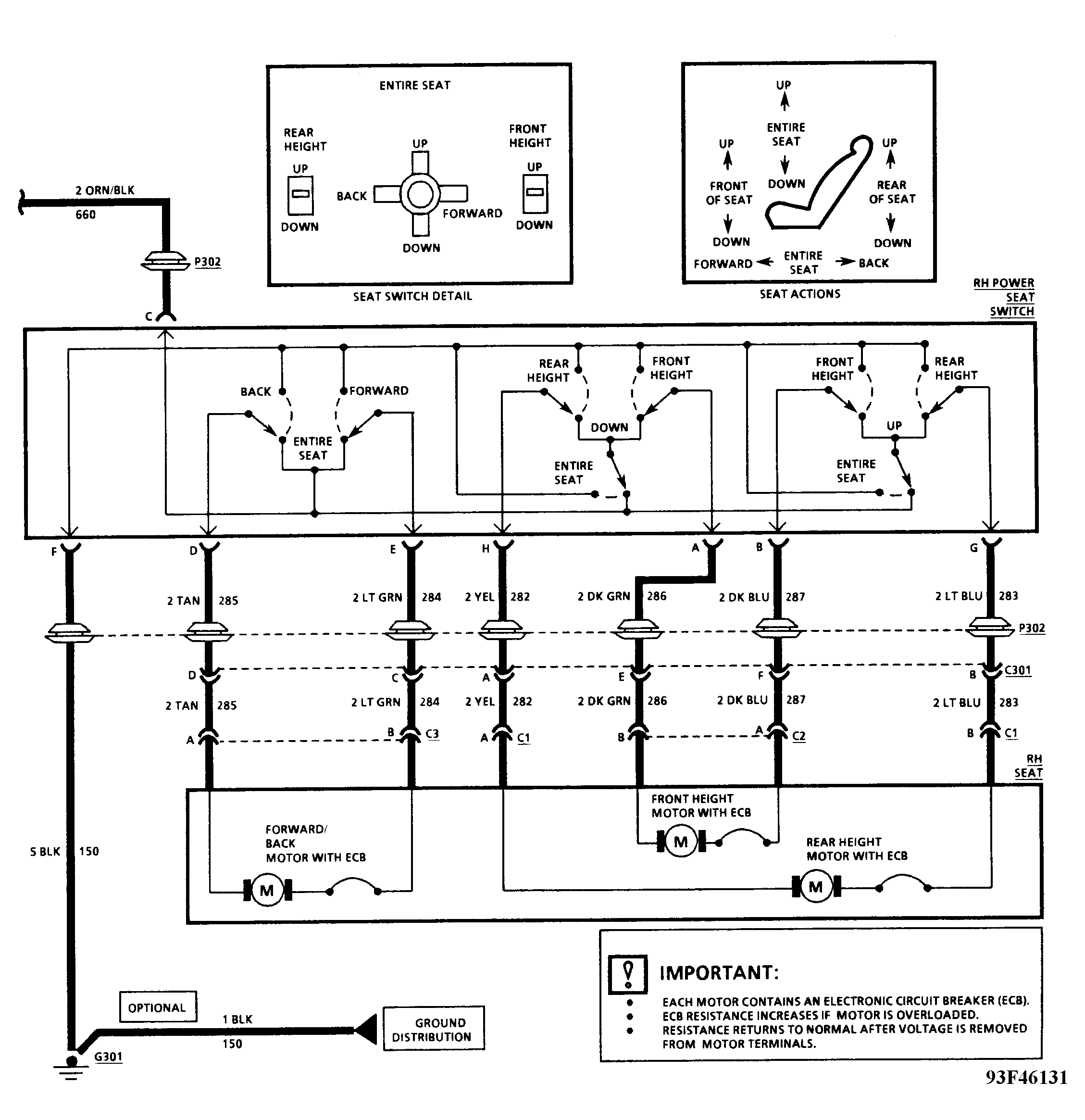

Fig 2: Power Seats Wiring Diagram (Caprice & Roadmaster - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
