Wiring Diagrams

Fig 1: Cruise Control System Wiring Diagram (Caprice)

G93H41035

Fig 2: Cruise Control System Wiring Diagram (Camaro & Firebird)

G93I41036

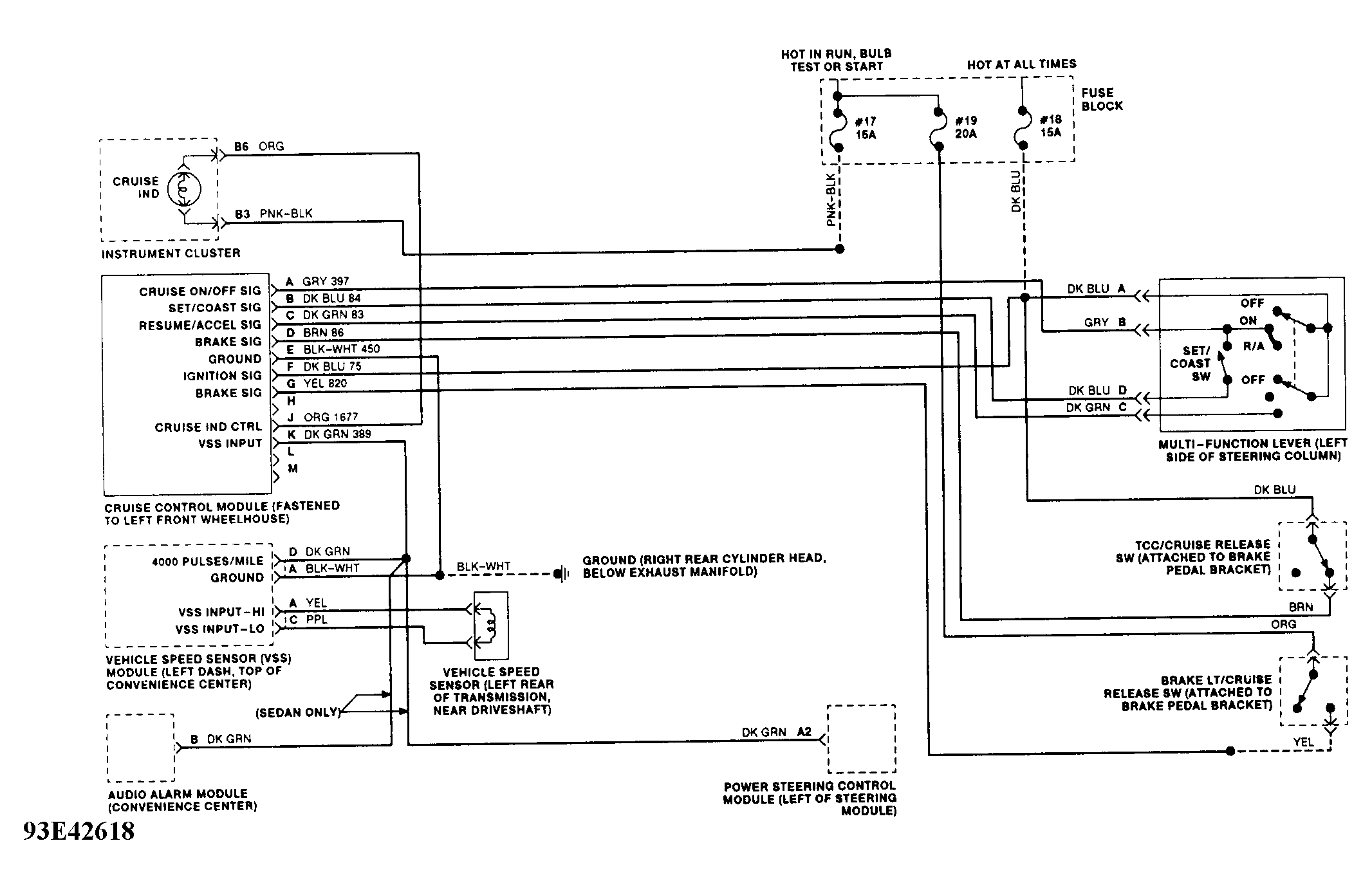

Fig 3: Cruise Control System Wiring Diagram (Roadmaster)

G93E42618
