Symptom Diagnosis

To determine correct diagnosis and testing, refer to SYMPTOM DIAGNOSIS table below.

SYMPTOM DIAGNOSIS

Symptom

Chart No.

Cruise Will Not Engage

⁽¹⁾ 1

Cruise Will Not Resume

Cruise Will Not Accelerate

Cruise Will Not Tap-Up

Cruise Will Not Tap-Down

⁽¹⁾	Also see COMPONENT DIAGNOSIS & TESTING above in this article.

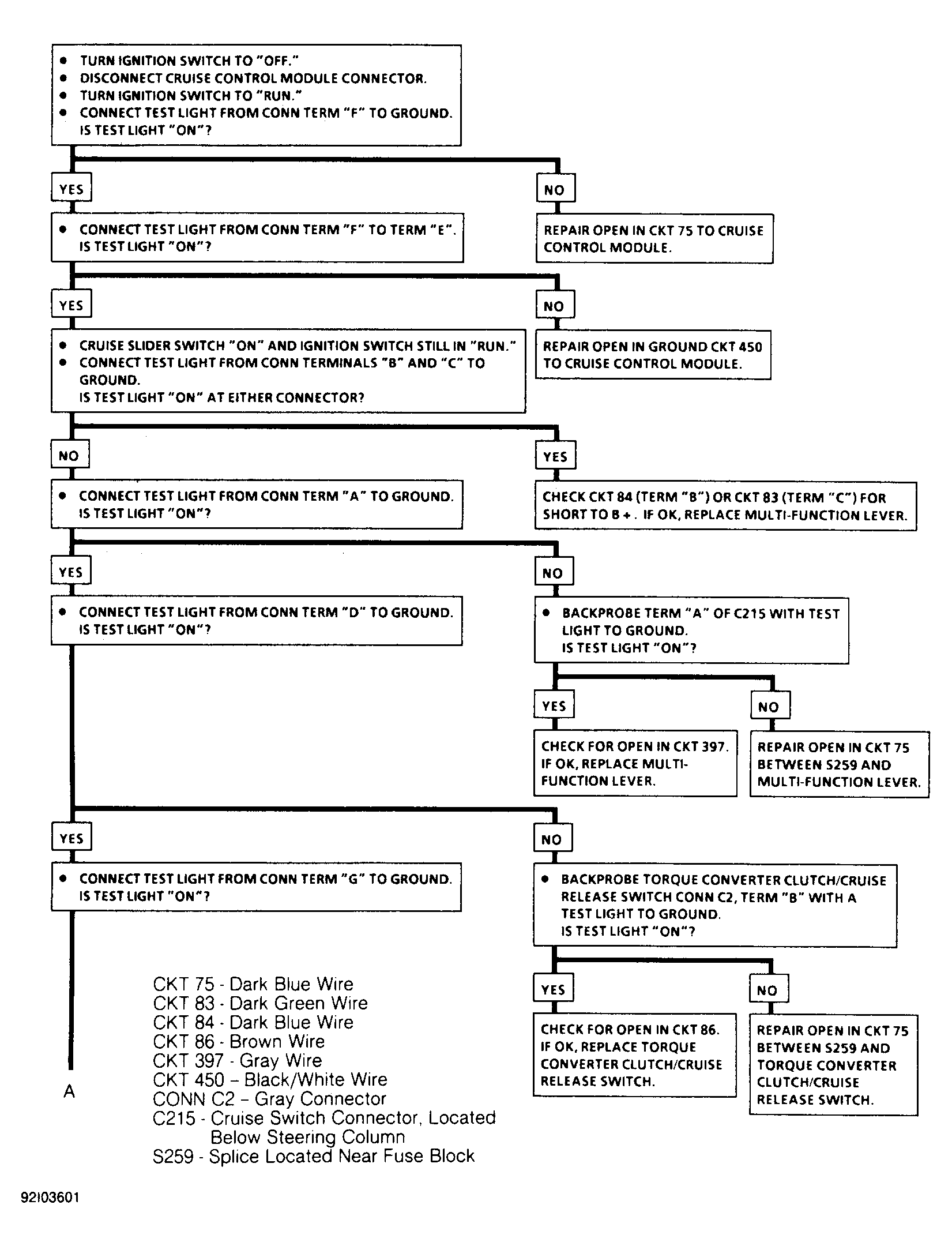

Fig 1: Chart 1 - Cruise Will Not Engage (1 of 2)

Courtesy of GENERAL MOTORS CORP.

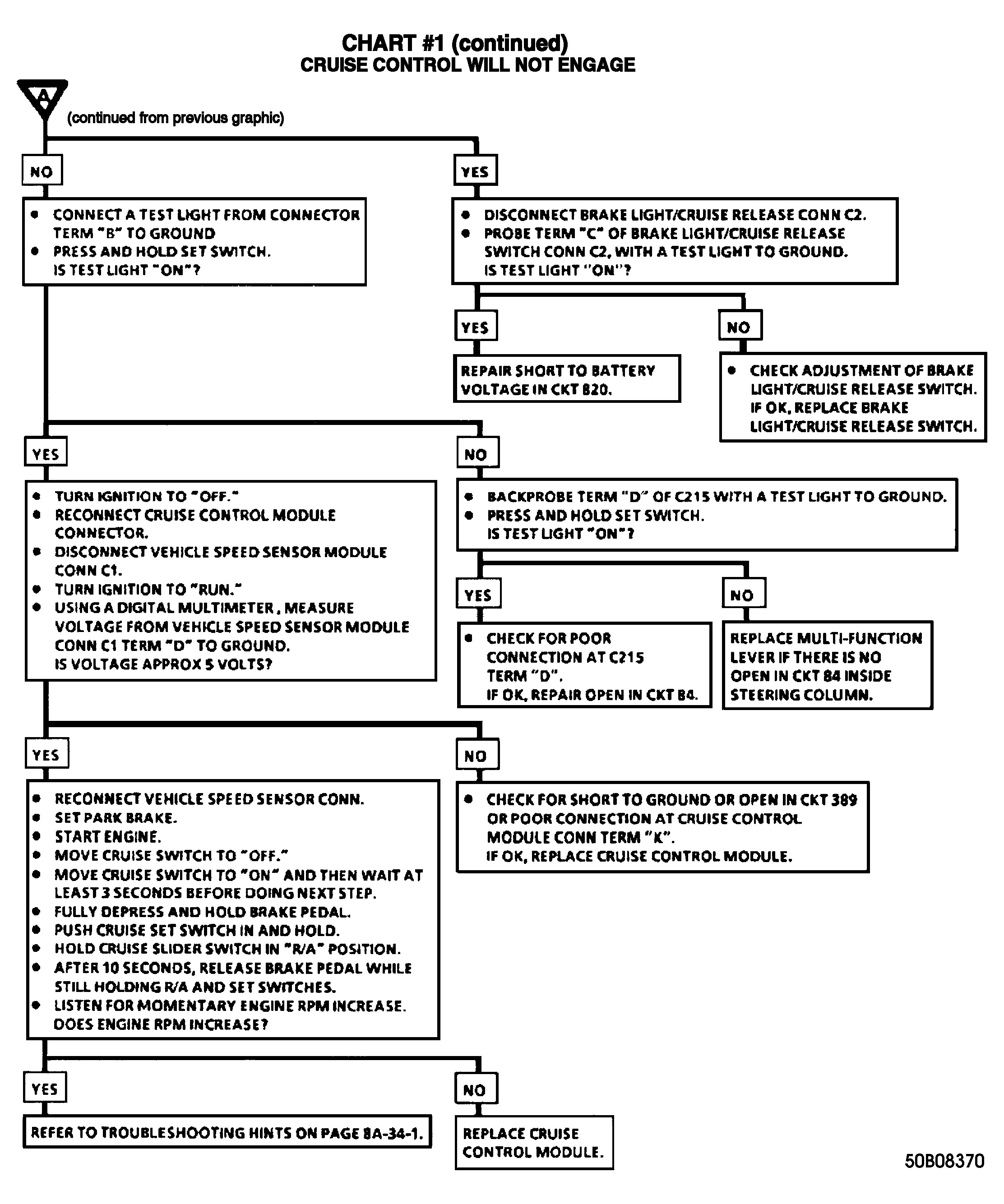

Fig 2: Chart 1 - Cruise Will Not Engage (2 of 2)

Courtesy of GENERAL MOTORS CORP.

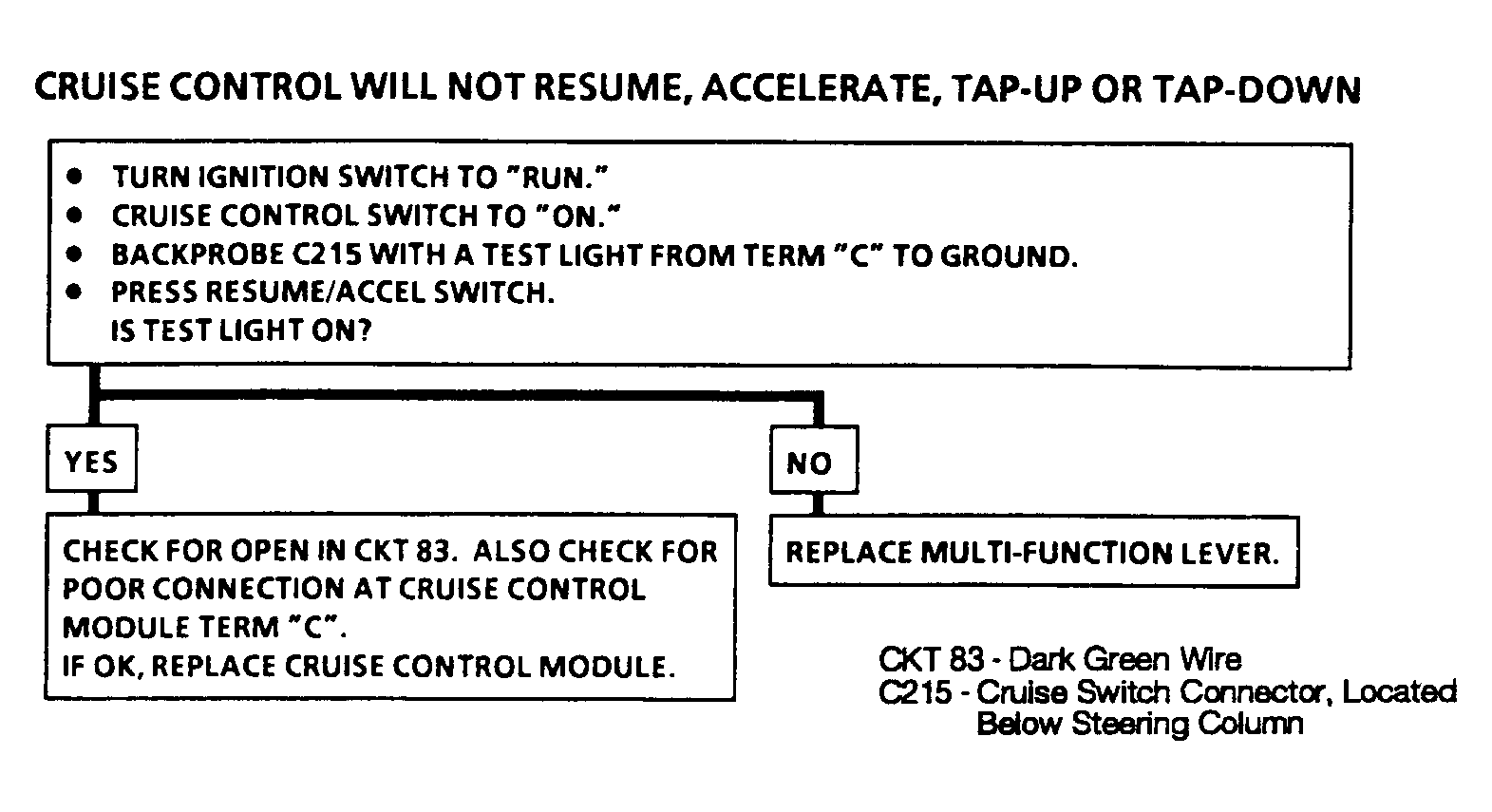

Fig 3: Chart 2 - Will Not Resume, Accelerate, Tap-Up or Tap-Down

Courtesy of GENERAL MOTORS CORP.
