Floor Shift (FWD Models)

  1. Place shift lever in Neutral position. Place transaxle lever in Neutral notch. Loosely assemble nut to pin through transaxle lever with transaxle cable assembled to pin.
  2. Assemble steering column shift lever pin and transaxle control cable bracket. Tighten nut. Lever must be held out of Park when tightening nut. See Fig 1 .

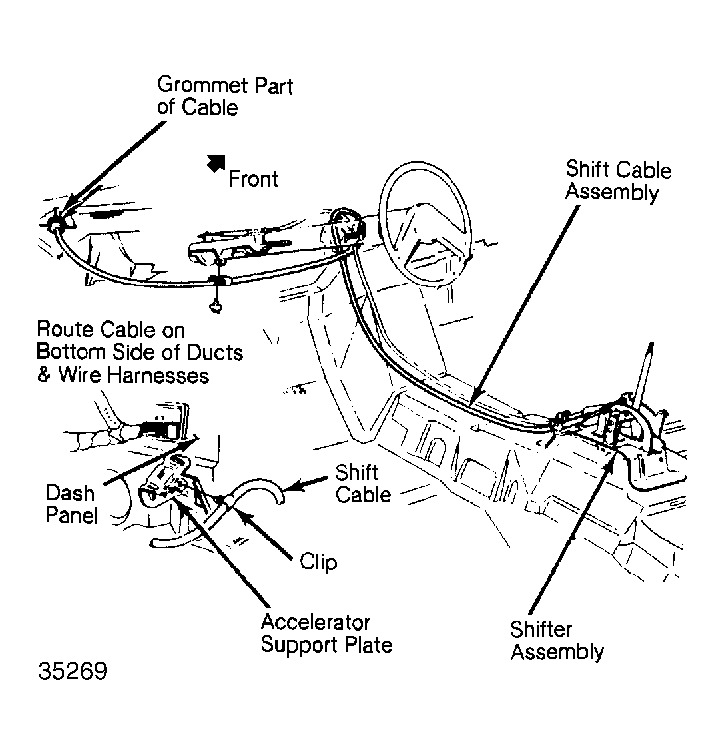

    Fig 1: Floor Shift Linkage (FWD Models)
    G35269
