EXPERTEC TSB (89-1-3)

Publication date: 1988-11-01
Reference number: 89-1-3

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 89-1-3, Date of Issue: 11/01/88

11/01/1988

Buick 89-1-3

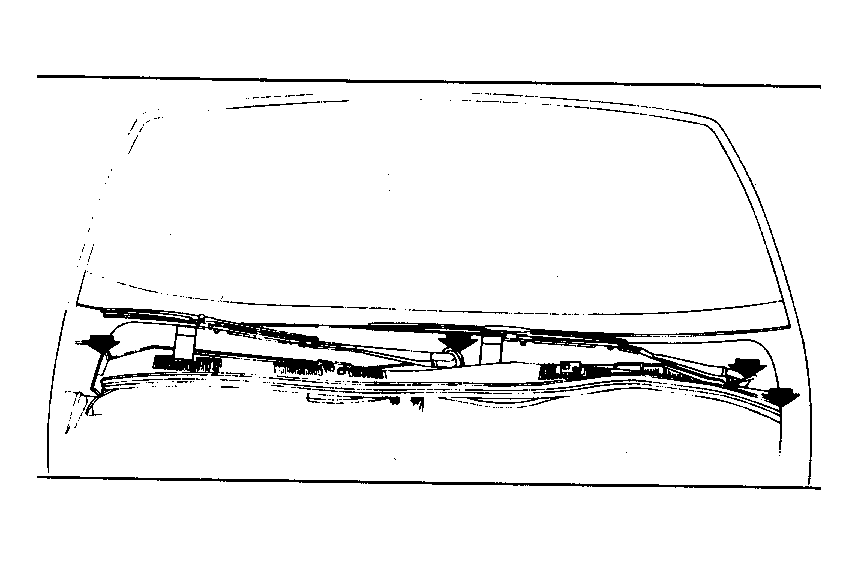

Fig 1: Graphic

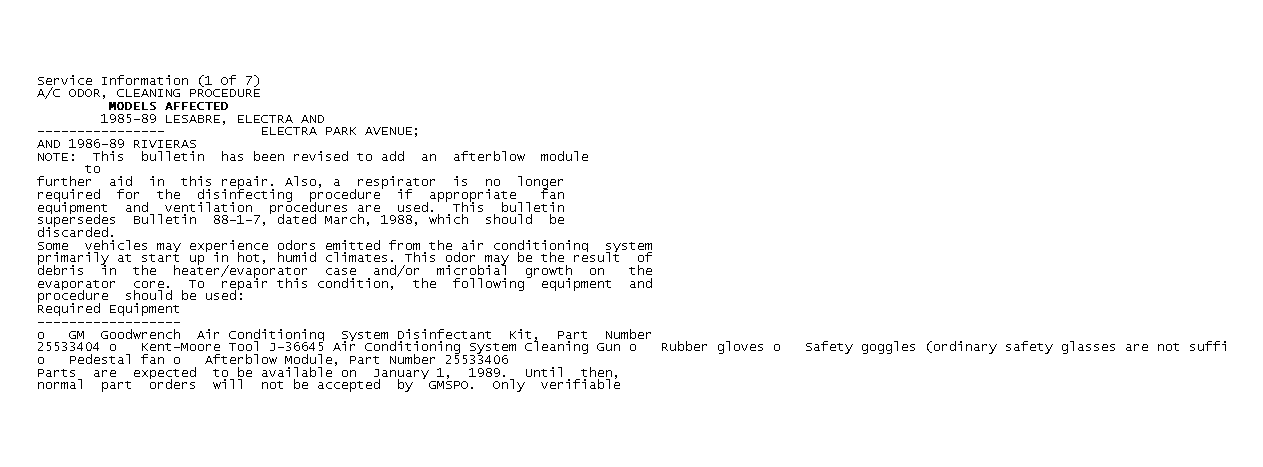

Fig 2: Service Information (1 Of 7)

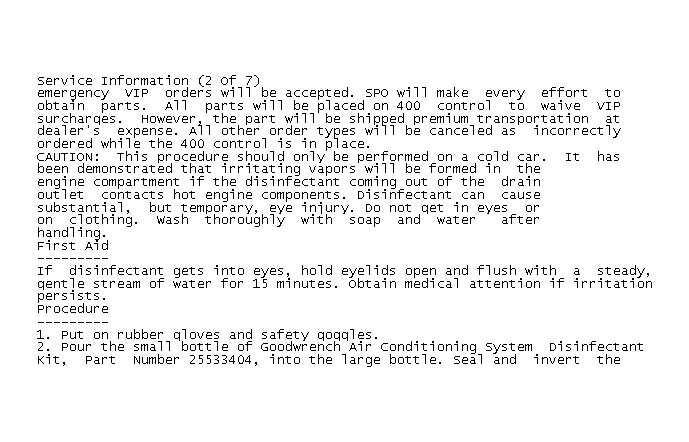

Fig 3: Service Information (2 Of 7)

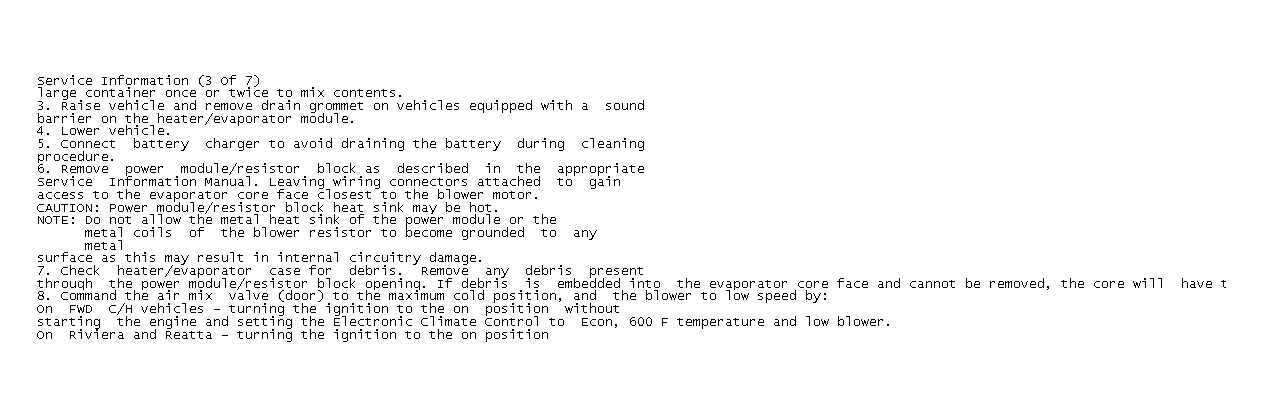

Fig 4: Service Information (3 Of 7)

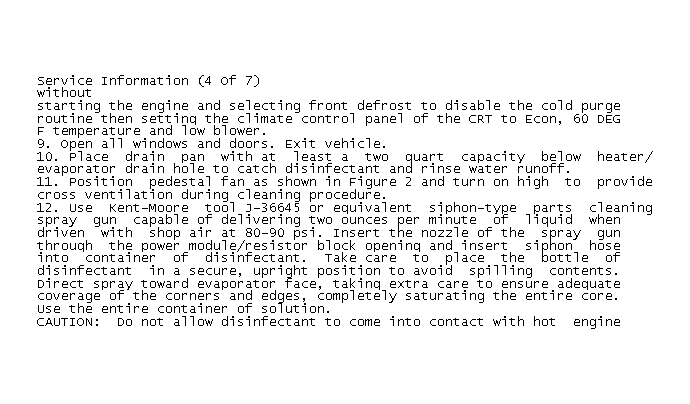

Fig 5: Service Information (4 Of 7)

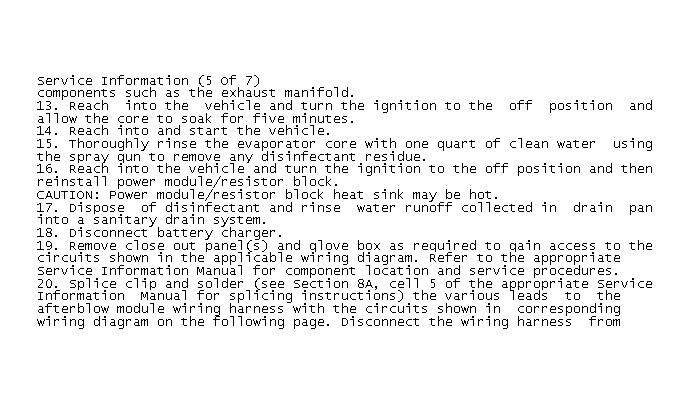

Fig 6: Service Information (5 Of 7)

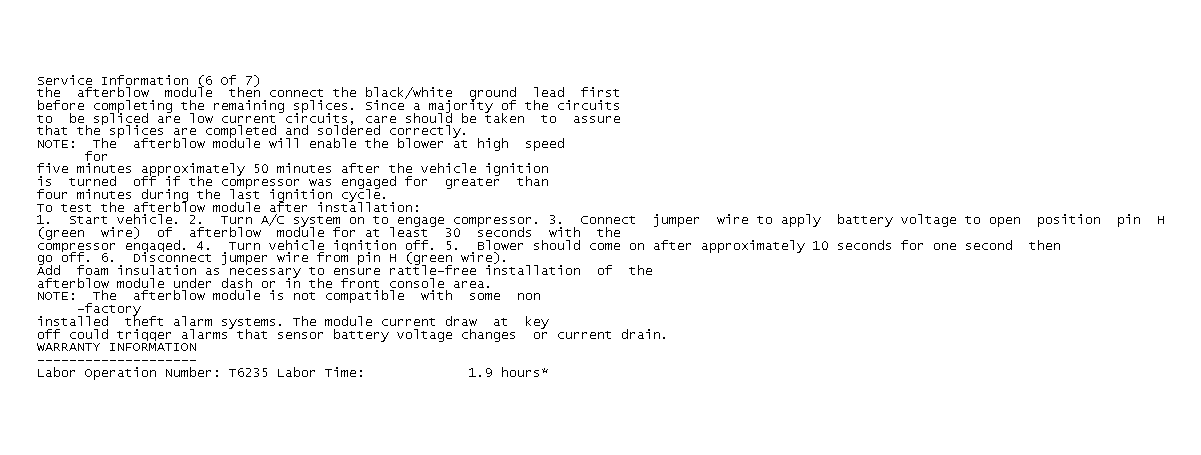

Fig 7: Service Information (6 Of 7)

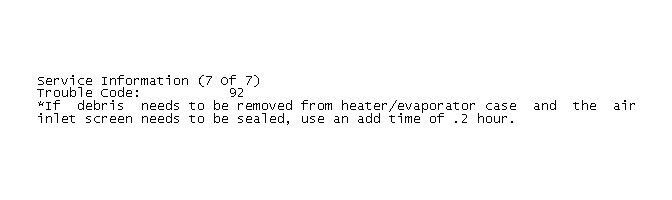

Fig 8: Service Information (7 Of 7)
