Wiring Diagrams

NOTE: Wiring diagram information available for following General Motors vehicles only.

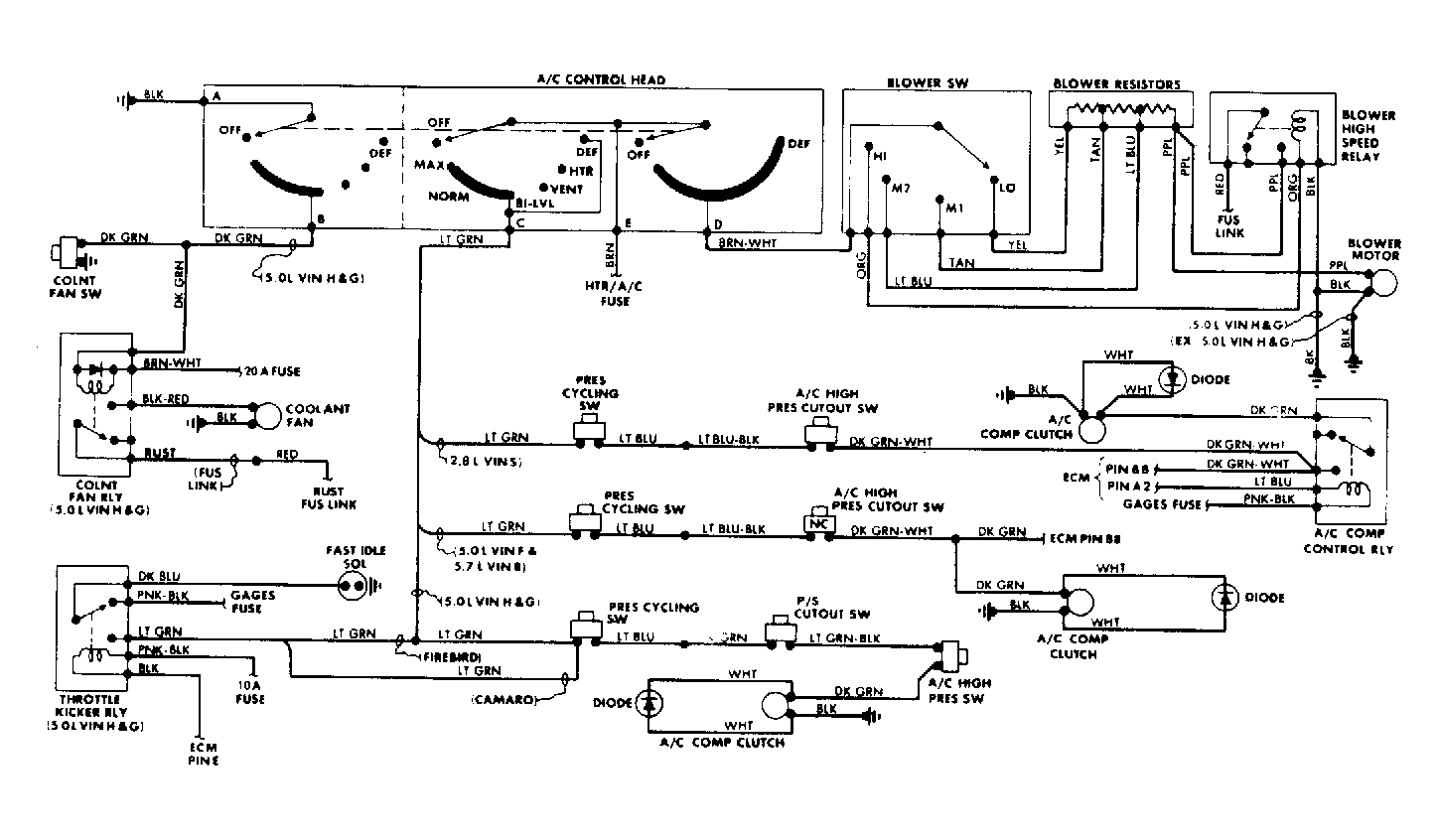

Fig 1: Cooling Fan/Manual A/C-Heater Wiring Diagram - Oldsmobile Ninety Eight and Buick Electra

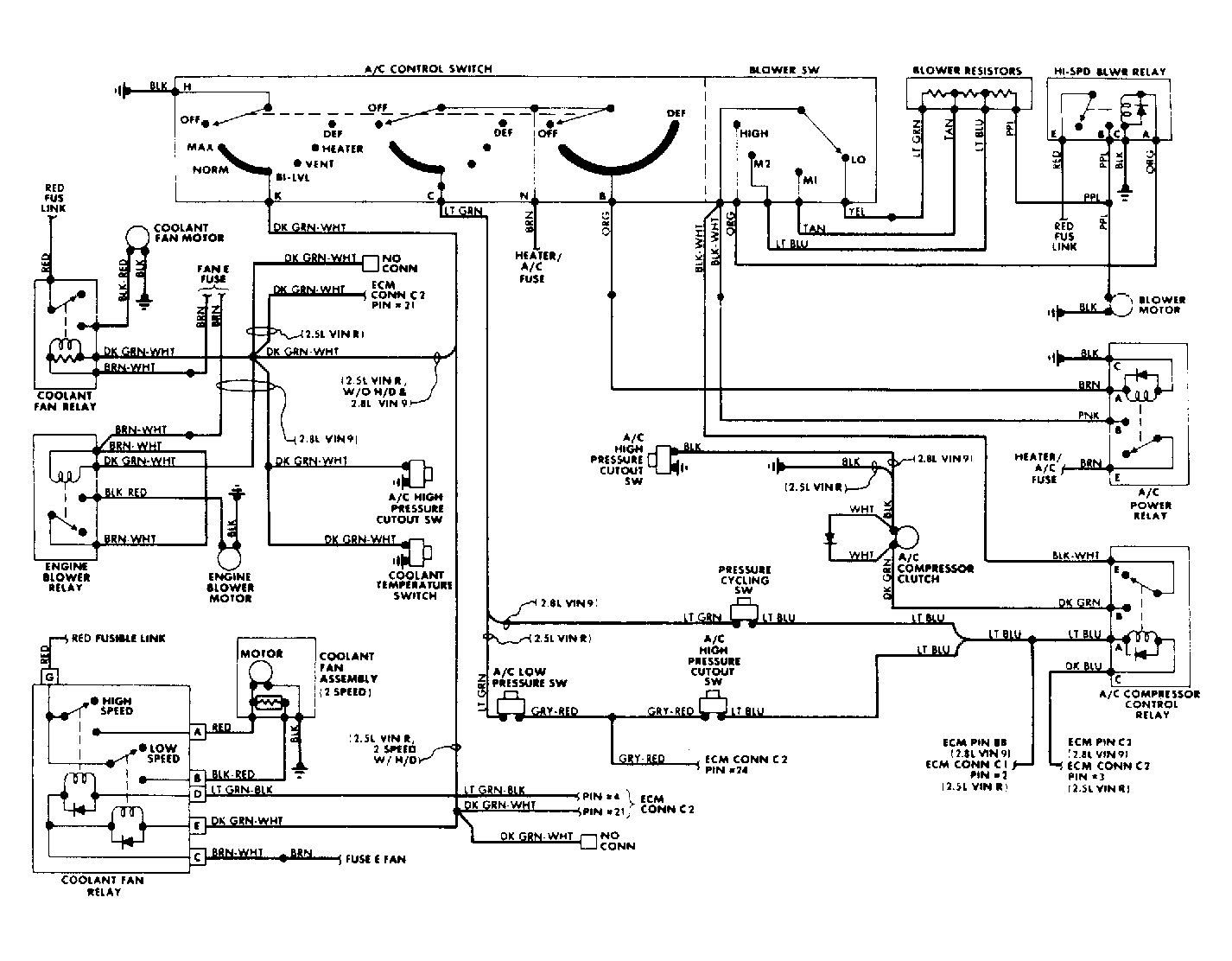

Fig 2: Cooling Fan/Manual A/C-Heater Diagram (3.0L Engine) - Oldsmobile Calais, Pontiac Grand Am, Buick Somerset & Skylark

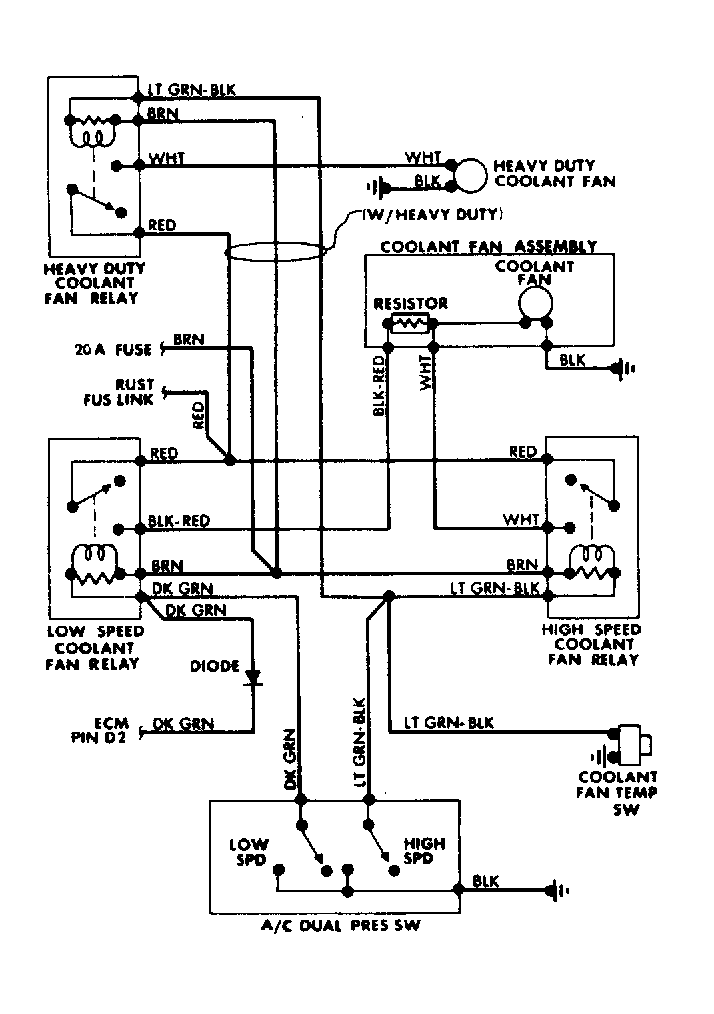

Fig 3: Cooling Fan/Manual A/C-Heater Wiring Diagram - Oldsmobile Delta 88, Buick LeSabre, and Pontiac Bonneville

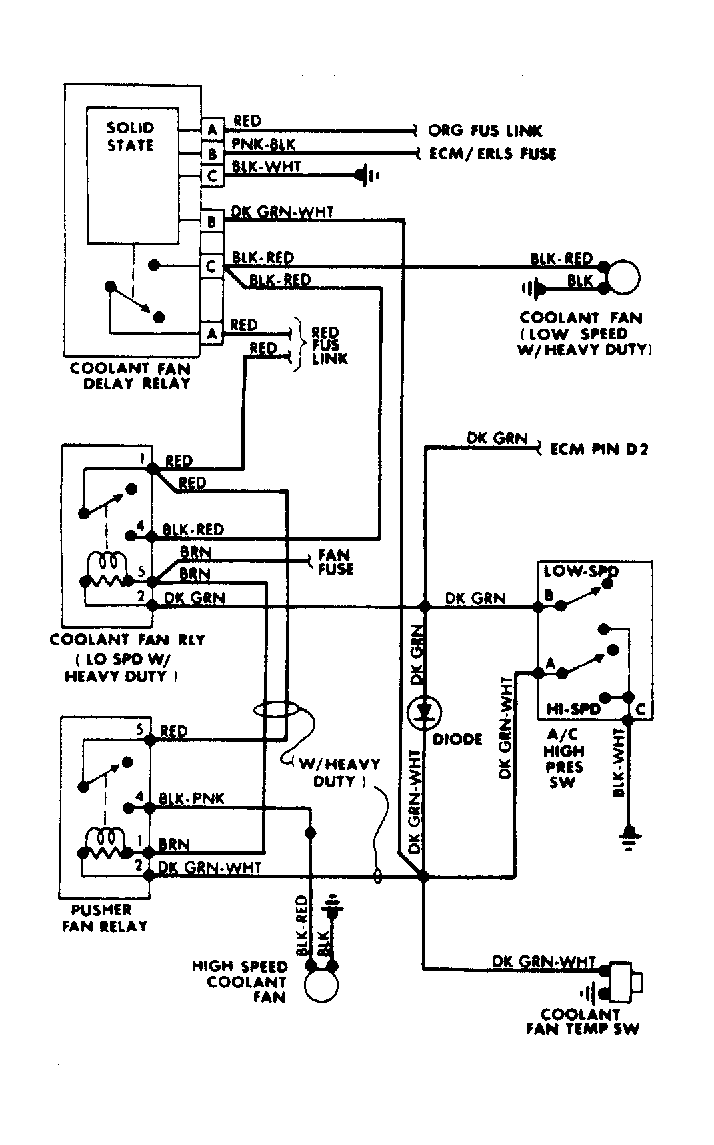

Fig 4: Cooling Fan/Manual A/C-Heater Wiring Diagram - Buick Century with 3.8L engine

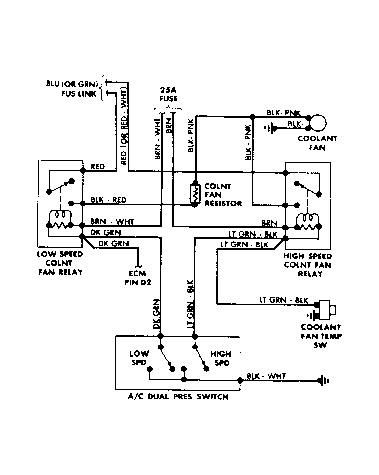

Fig 5: Cooling Fan/Manual A/C-Heater Wiring Diagram - Buick Regal with 3.8L Turbo

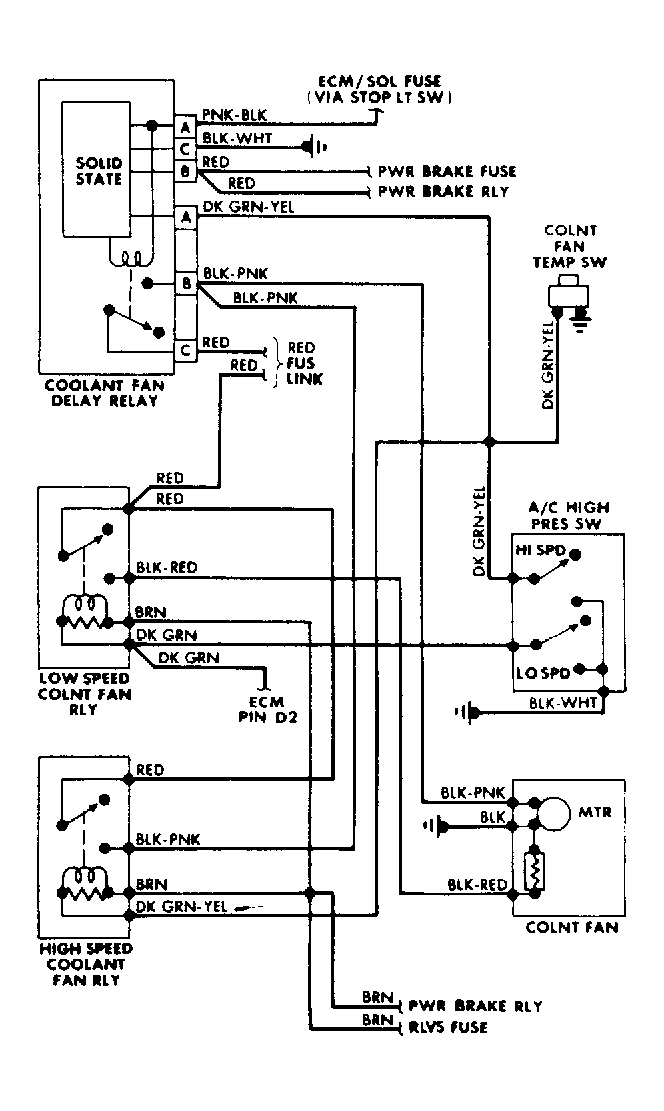

Fig 6: Cooling Fan/Manual A/C-Heater Wiring Diagram - Chevrolet Camaro and Pontiac Firebird

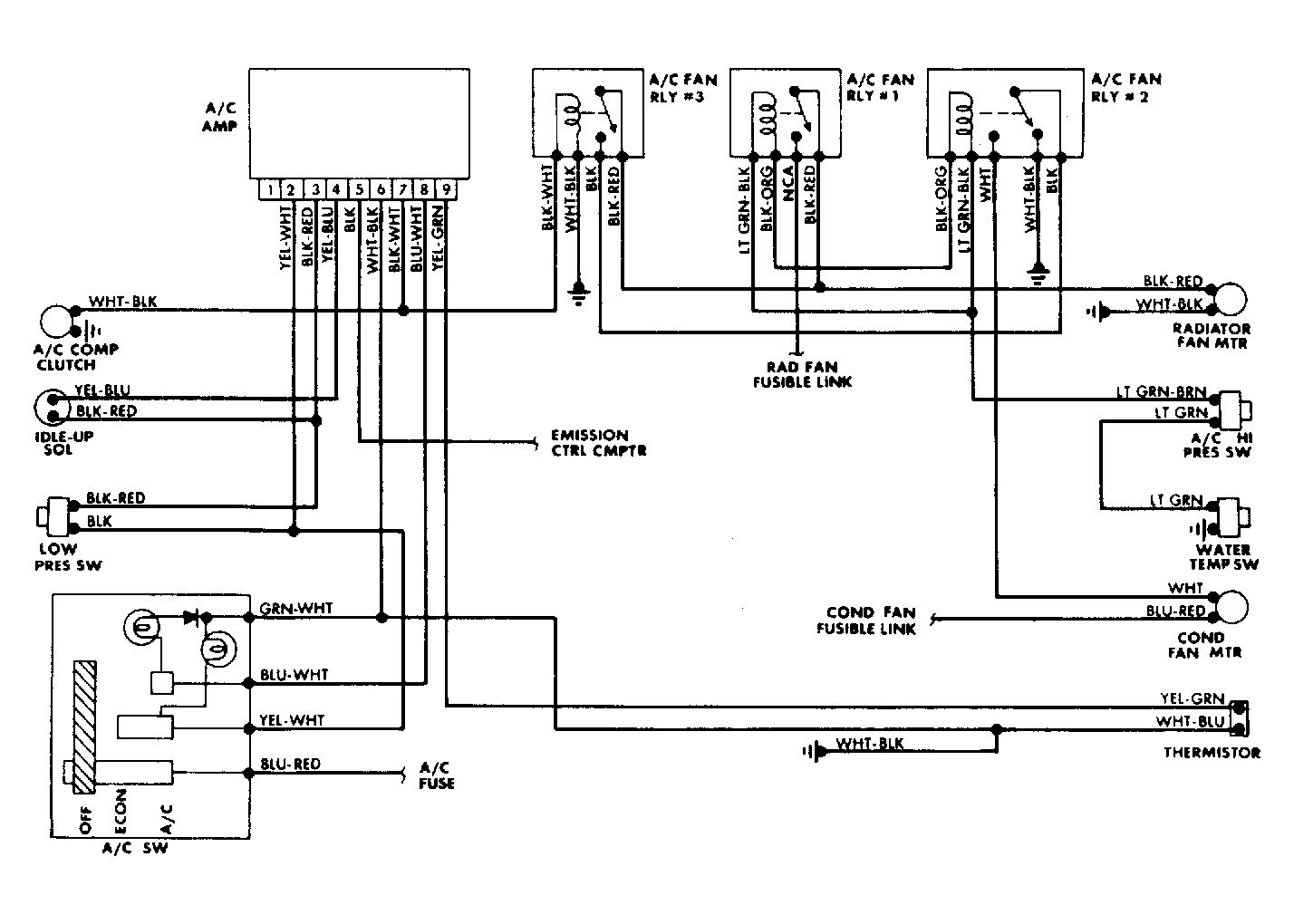

Fig 7: Cooling Fan/Manual A/C-Heater Wiring Diagram - Chevrolet Nova

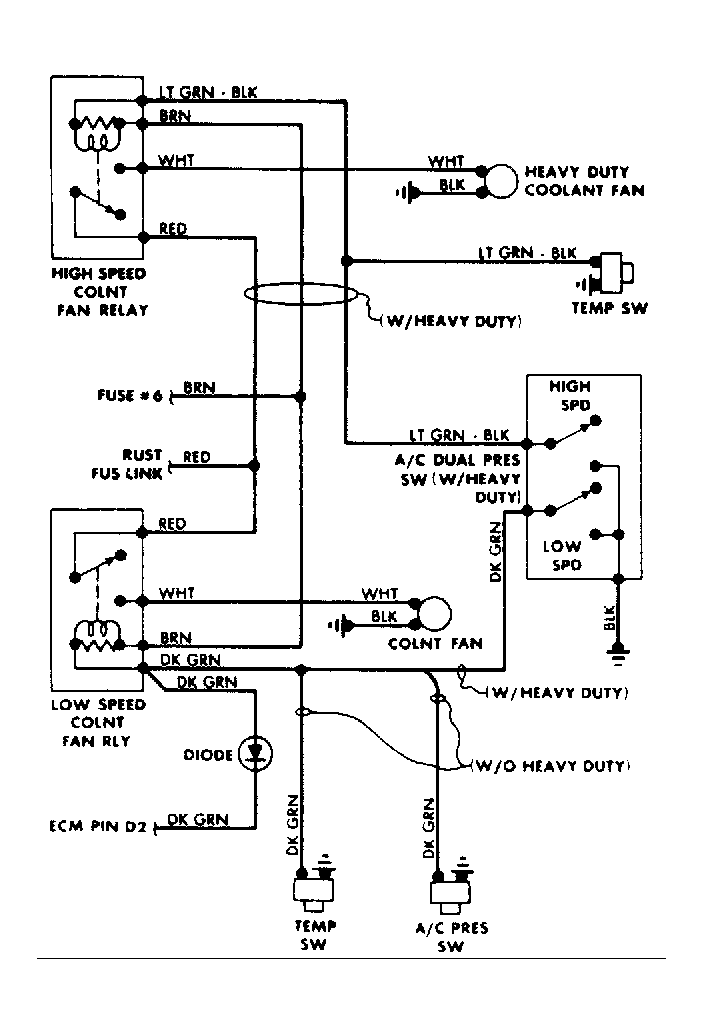

Fig 8: Cooling Fan/Manual A/C-Heater Wiring Diagram - Pontiac Fiero
