Wiring Diagrams

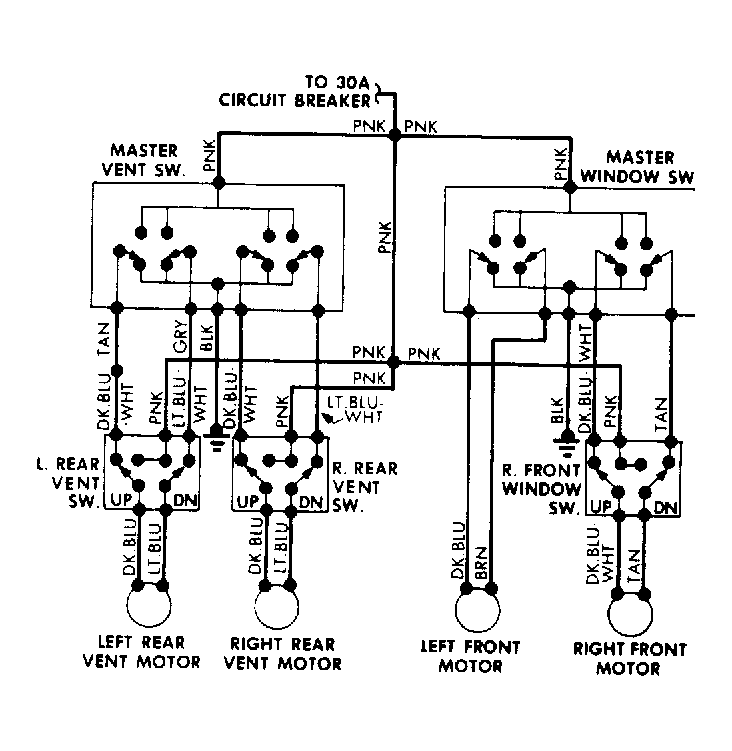

Fig 1: GM Power Rear Vent Wiring Diagram

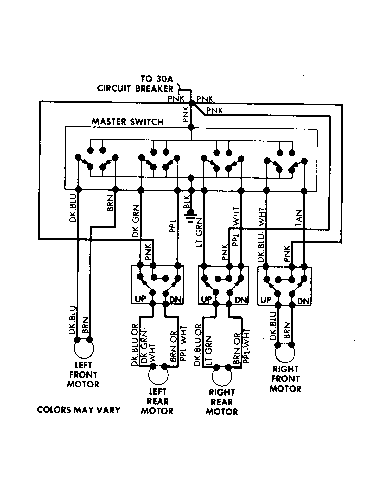

Fig 2: GM 4-Door Power Window Wiring Diagram

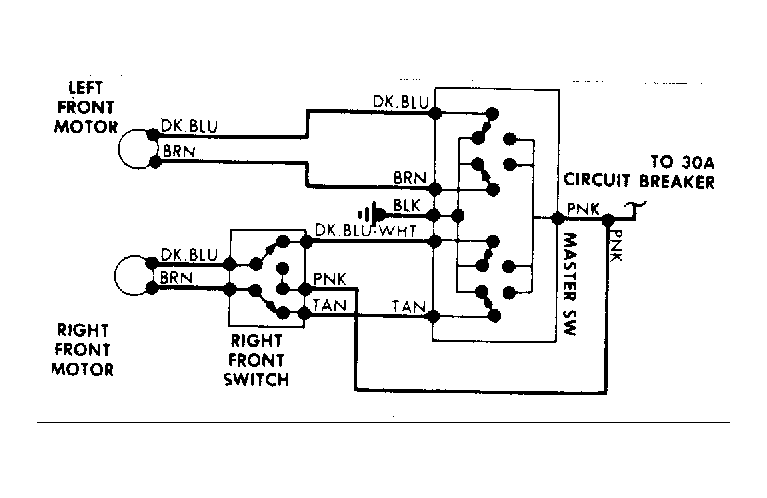

Fig 3: GM 2-Door Power Window Wiring Diagram (Except Camaro, Corvette, and Firebird)

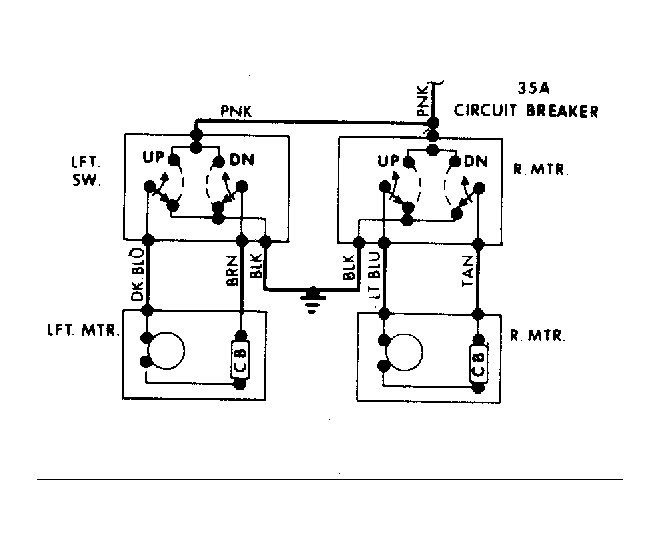

Fig 4: GM Power Window Wiring Diagram (Camaro, Corvette, and Firebird)
