Choke Unloader

NOTE: Choke coil lever and choke rod (fast idle cam) adjustments must be correct before performing this adjustment. Adjustment is performed with choke valve angle gauge. See ANGLE GAUGE ADJUSTMENT TOOL  procedure at the beginning of ADJUSTMENTS. DO NOT  remove rivets and choke cover to perform this adjustment.

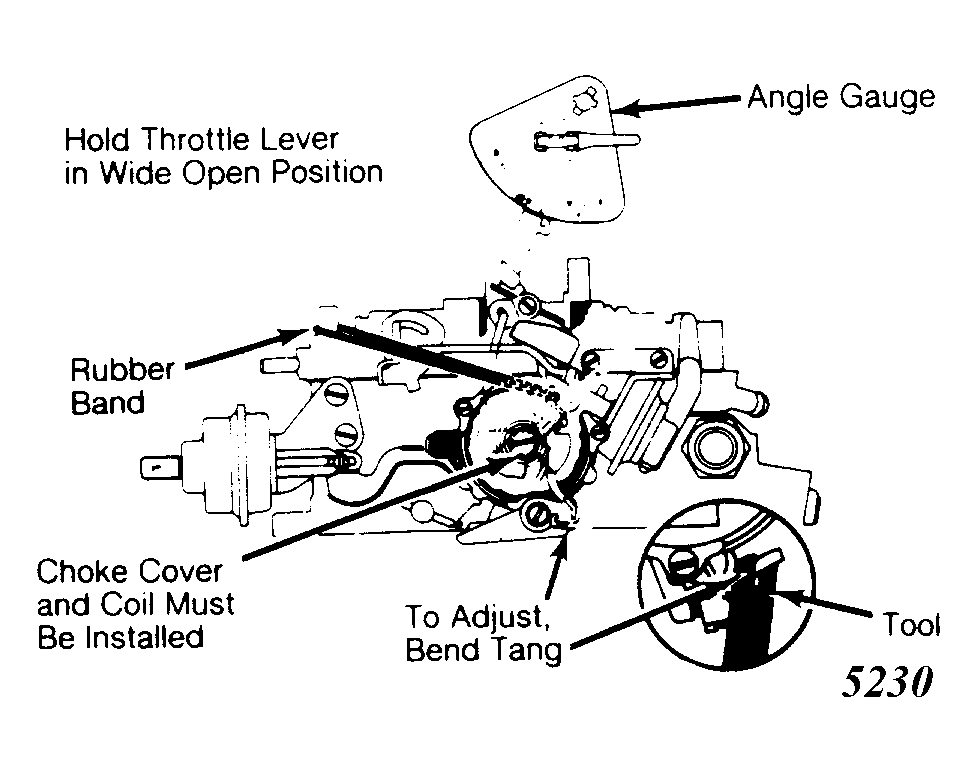

Fig 1: Choke Unloader Adjustment Bend tang to adjust.
G5230
  1. Attach rubber band to Green tang of intermediate choke shaft. Open throttle to allow choke valve to close. Set angle gauge on choke valve and set to specified angle. See Fig 1 .
  2. Hold throttle lever in wide open position. To adjust, bend choke unloader tang on fast idle lever until bubble of choke valve angle gauge is centered. Remove gauge.
