Wiring Diagrams

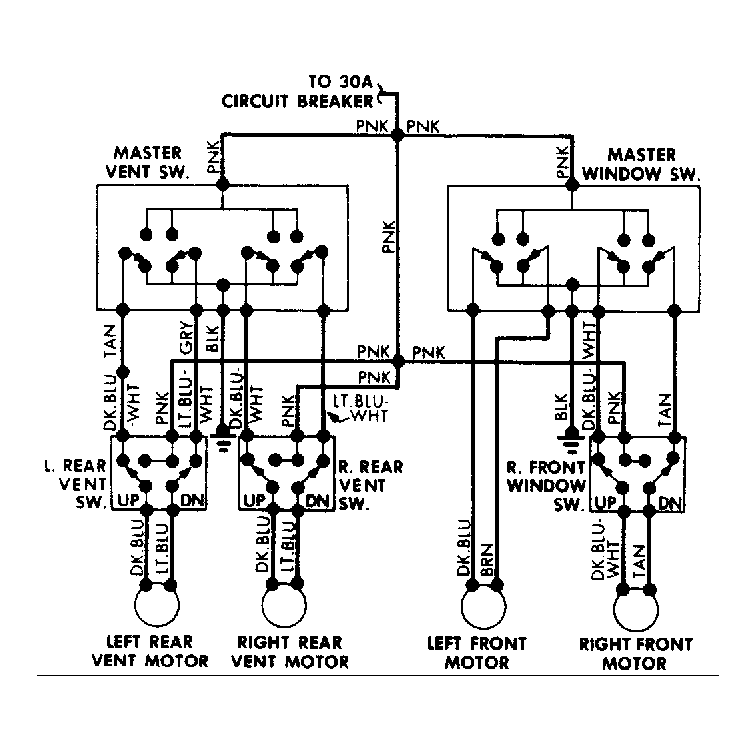

Fig 1: GM Power Rear Vent Wiring Diagram

G932

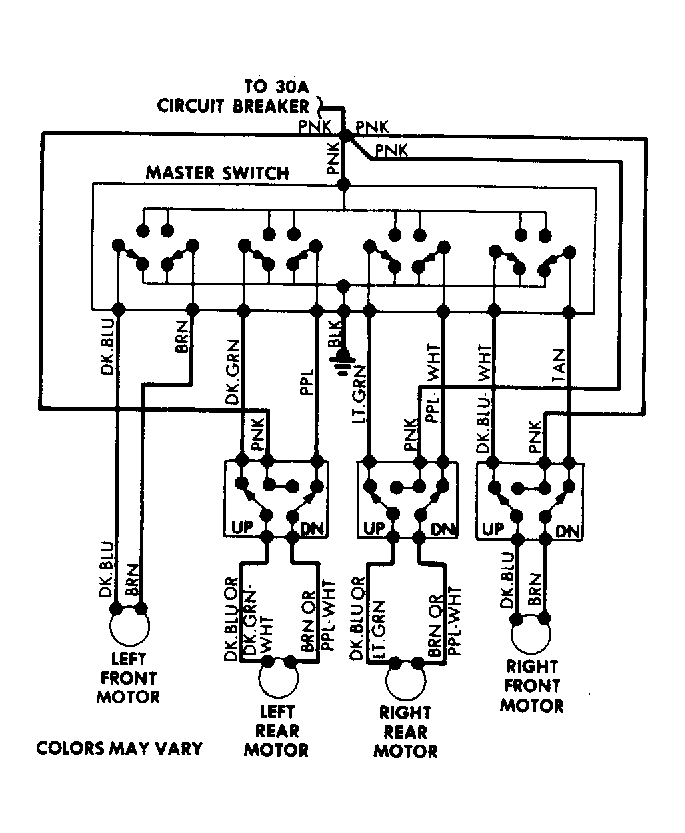

Fig 2: GM 4-Door Power Window Wiring Diagram

G930

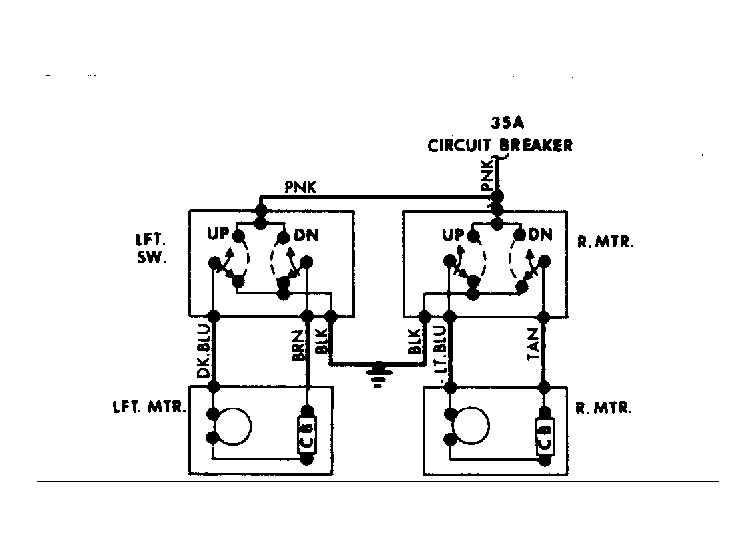

Fig 3: Power Window Wiring Diagram (Camaro, Corvette, and Firebird)

G2068

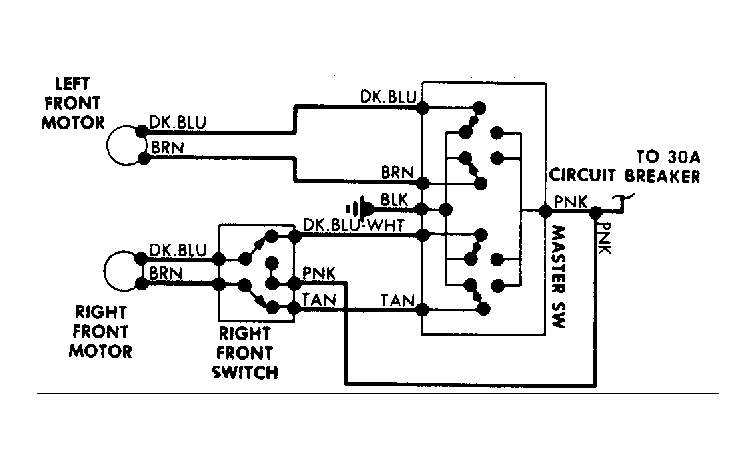

Fig 4: Power Window Wiring Diagram (Except Camaro, Corvette, and Firebird)

G933
