Removing all grab handles
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.

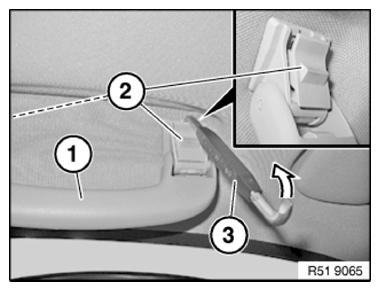

- Expand the grab handle (1) towards the bottom.
- Disengage the locking insert (2) and pull it out with an angle screwdriver (3).
- Repeat the procedure at the rear locking insert (2).

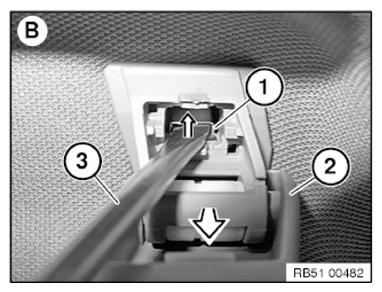

- Slightly pull the grab handle (2) inward manually and keep it under a preload while using a screwdriver (3) to detach the lower and upper release tab (1) in arrow direction.
- Remove the grab handle (2) and place to one side.
