Install Both Actuators (Engine Removed)

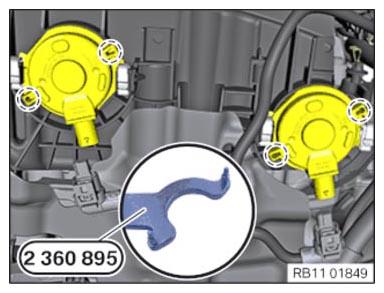

NOTE: The figure shows the rear of the engine.

• Position special tool 2 360 895  correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

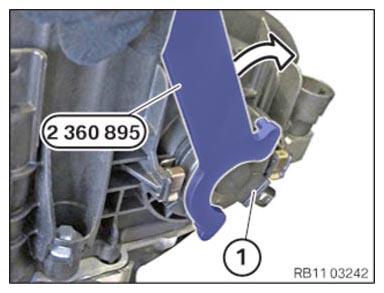

• Position the actuator (1) of the exhaust side and turn in the arrow direction with the special tool 2 360 895  until the limit stops tap the clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

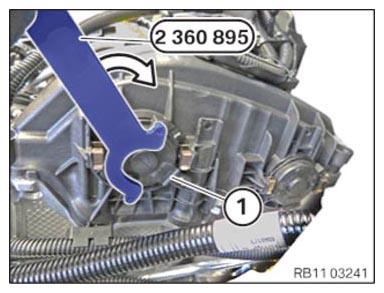

• Position the actuator (1) of the intake side and turn in the arrow direction with the special tool 2 360 895  until the limit stops tap the clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

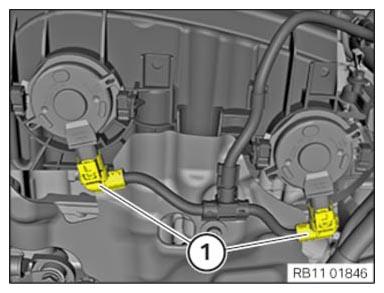

  NOTE: The figure shows the rear of the engine.
• Connect both connectors (1) lay the cable correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
