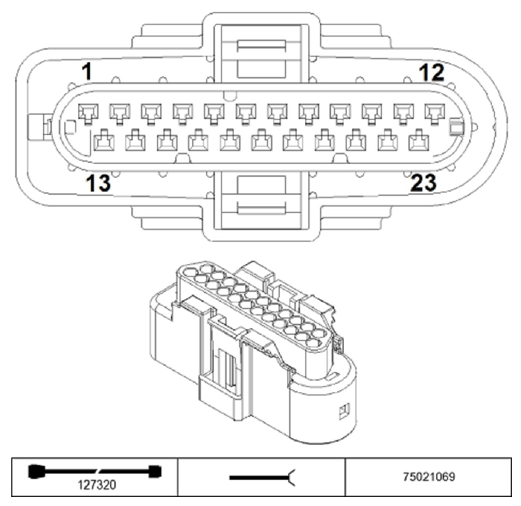

Variable Valve Timing Gear Control Module X60212 Connector End View
Pin Assignments At Plug Connector X60212
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 87 | Fuse F42 |
| 2 | A | Supply, position sensor for variable valve timing gear | Eccentric shaft sensor |
| 3 | E | Signal, position sensor for variable valve timing gear | Eccentric shaft sensor |
| 4 | E | Signal, position sensor for variable valve timing gear | Eccentric shaft sensor |
| 5 | E | Signal, position sensor for variable valve timing gear | Eccentric shaft sensor |
| 6 | -- | Not occupied | |
| 7 | E/A | Signal, CAN bus | DME control module |
| 8 | -- | Not occupied | |
| 9 | A | Supply, position sensor for variable valve timing gear | Eccentric shaft sensor 2 |
| 10 | E | Signal, position sensor for variable valve timing gear | Eccentric shaft sensor 2 |
| 11 | E | Signal, position sensor for variable valve timing gear | Eccentric shaft sensor 2 |
| 12 | E | Signal, position sensor for variable valve timing gear | Eccentric shaft sensor 2 |
| 13 | E/A | Signal, VVT control module | DME control module |
| 14 | -- | Not occupied | |
| 15 | M | Shielding | Eccentric shaft sensor |
| 16 | M | Ground, position sensor for variable valve timing gear | Eccentric shaft sensor |
| 17 | E | Signal, position sensor for variable valve timing gear | Eccentric shaft sensor |
| 18 | E | Signal, position sensor for variable valve timing gear | Eccentric shaft sensor |
| 19 | E/A | Signal, CAN bus | DME control module |
| 20 | M | Shielding | Eccentric shaft sensor 2 |
| 21 | M | Ground, position sensor for variable valve timing gear | Eccentric shaft sensor 2 |
| 22 | E | Signal, position sensor for variable valve timing gear | Eccentric shaft sensor 2 |
| 23 | E | Signal, position sensor for variable valve timing gear | Eccentric shaft sensor 2 |
