31 00... Notes on repairing threads: Notes

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.

NOTE: Damaged threads on the engine support may be repaired with Helicoil thread inserts. Follow the procedure described in the example.

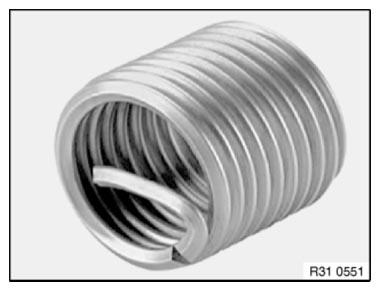

Fig 1: Identifying Damaged Threads On Engine Support

Courtesy of BMW OF NORTH AMERICA, INC.
