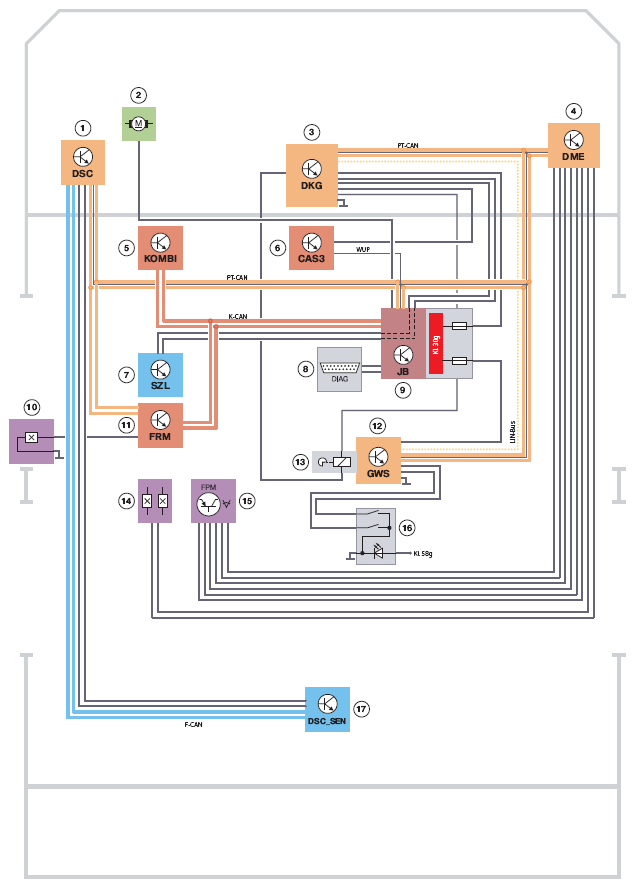

M DCT System Circuit Diagram
EXPLANATION REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | DSC control unit (Dynamic Stability Control) |
| 2 | Auxiliary water pump |
| 3 | M DCT electronics (integrated into the Mechatronics module) |
| 4 | DME/ECM (Digital Engine Electronics) |
| 5 | Instrument cluster |
| 6 | CAS control unit (Car Access System) |
| 7 | Steering column switch cluster |
| 8 | Diagnostics interface |
| 9 | Junction box electronics |
| 10 | Door contact switch |
| 11 | Footwell module |
| 12 | M gear selector switch (M GWS) |
| 13 | Parking lock electromagnet |
| 14 | Brake light switch |
| 15 | Accelerator pedal module |
| 16 | Drivelogic program selector button |
| 17 | DSC sensor unit |
