Electrical System

The electrical equipment and bus structure of the M3 are based on the E92.

The optional MDrive menu can be used to preset/configure the standard Servotronic and the M engine dynamics control (enhanced with "Sport Plus"), the optional electronic damper control EDC-K (in the E9x series only available in the M3) and the DSC M dynamic mode.

In the E9x series, the BMW Individual High End audio system is offered for the first time in the M3.

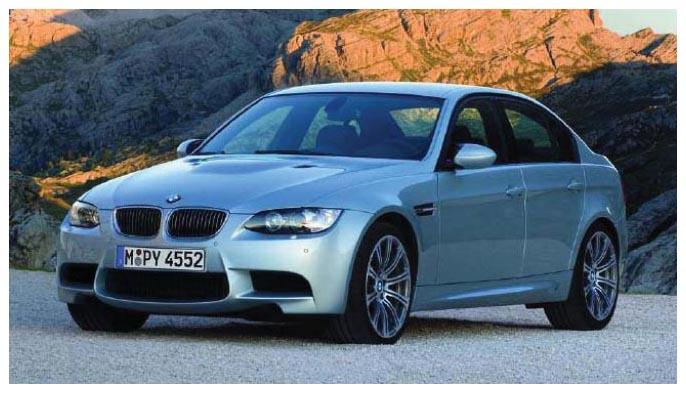

Fig 1: Identifying Complete Vehicle (E9X Series)
G06896875Courtesy of BMW OF NORTH AMERICA, INC.
