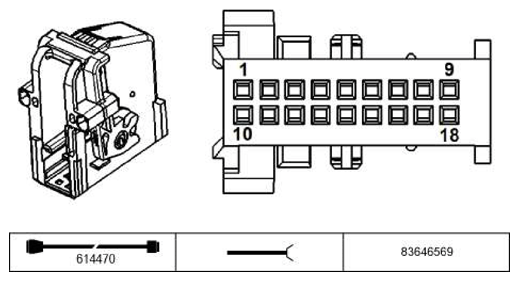

Video Module X18806 Connector End View
Pin Assignments At Plug Connector X18806
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | Not occupied | ||
| 2 | Not occupied | ||
| 3 | A | Navigation AF signal | Navigation system |
| 4 | Not occupied | ||
| 5 | Not occupied | ||
| 6 | E | Signal, outside mirror camera ON | Outside mirror, passenger's side |
| 7 | M | Navigation RGB video signals Ground | Navigation system |
| 8 | A | Signal Navigation | Navigation system |
| 9 | Not occupied | ||
| 10 | Not occupied | ||
| 11 | Not occupied | ||
| 12 | M | Navigation AF signal Ground | Navigation system |
| 13 | Not occupied | ||
| 14 | Not occupied | ||
| 15 | A | Signal, outside mirror camera ON Ground | Outside mirror, passenger's side |
| 16 | A | Video signal Navigation signal green | Navigation system |
| 17 | A | Video signal Navigation signal blue | Navigation system |
| 18 | A | Video signal Navigation signal red | Navigation system |
