Band Brakes

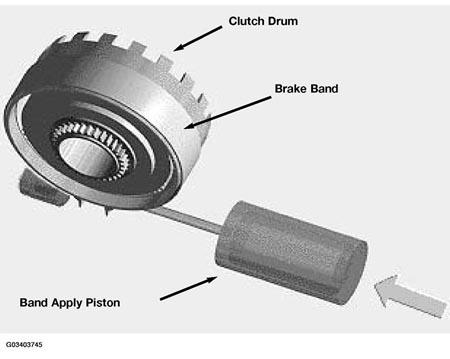

On some BMW transmissions there is a band type brake used for some applications. The A4S270/310R and the A5S310Z use a band type brake. The brake band is a circular band with friction material bonded to the inner surface. The band wraps around a particular planetary component (clutch drum) and locks that component to the transmission case. The brake band is applied and released by the clutch apply piston.
The brake band is not adjustable on the A5S310Z, however there is some adjustment allowed when needed on the A4S270/310R.
The brake band functions in the following manner on BMW transmissions:
- A4S270/310R - The brake band is active (applied) in first and second gear. The brake band holds the reaction sun drum stationary. The reaction sun drum is splined to the reaction sun gear.
- A5S310Z - The brake band is active (applied) in second, third and fifth gear. The brake band holds the forward sun gear to the case.
