86 21 ... Installing sponge rubber seal

NOTE: Removing old sponge rubber seal: Pull off old sponge rubber seal. Remove remaining traces of adhesive with universal cleaner, refer to BMW Operating Fluids .

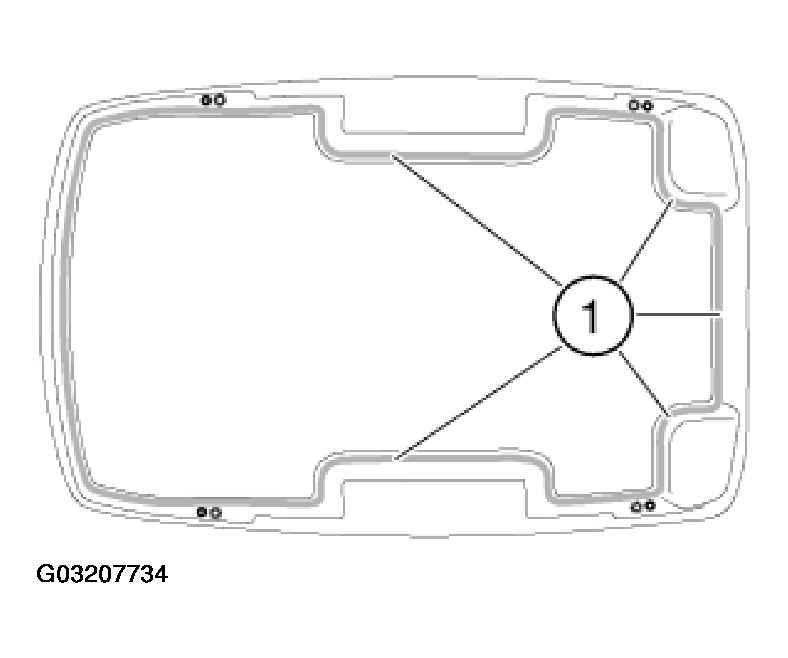

Sponge rubber seal runs along area marked gray (1).

Fig 1: Identifying Area Of Sponge Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

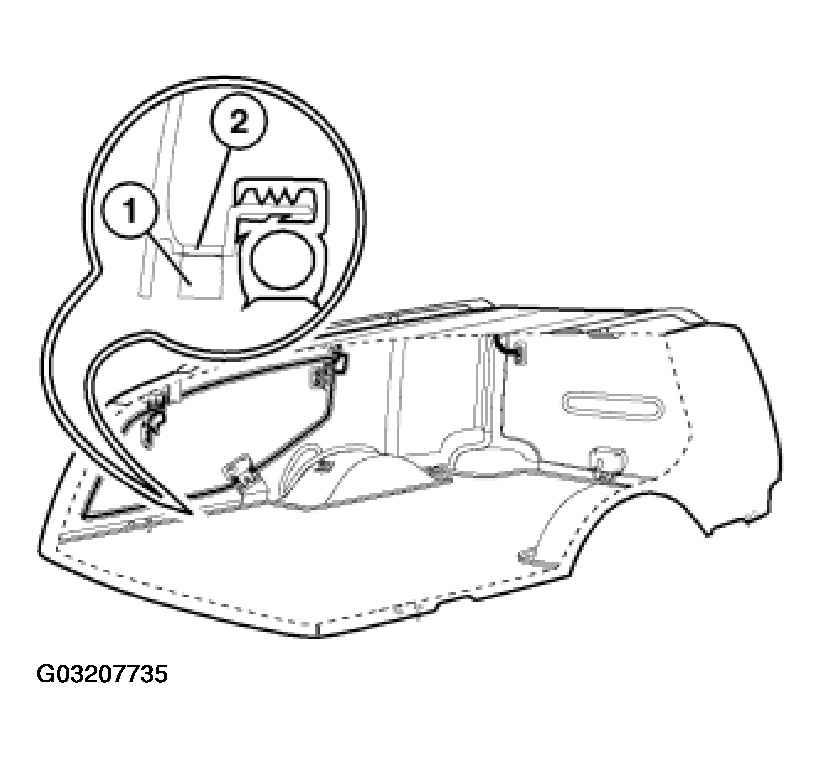

Lay sponge rubber seal (1) in middle of hood contact surface (2).

Fig 2: Laying Sponge Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Degrease contact surface (2) with benzine and rub down with a dry cloth. Stick on sponge rubber seal (1) according to manufacturer's instructions. Position end face of seal (1) in a straight area.
