Oil Line Disconnect Tool (04 17 00)

Publication date: 2000-07-01
Reference number: 04 17 00

OIL LINE DISCONNECT TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): 04 17 00, Date of Issue: July, 2000

BMW:	E52 Z8
GROUP:	04 - Tools and Equipment

SUBJECT

Oil Line Disconnect Tool

SITUATION

Distribution of the following tool will not be through the Automatic Tool Shipment Program. Tools may be purchased through your PDC.

TOOL INFORMATION

Oil line disconnect tool P/N 90 88 6 114 240

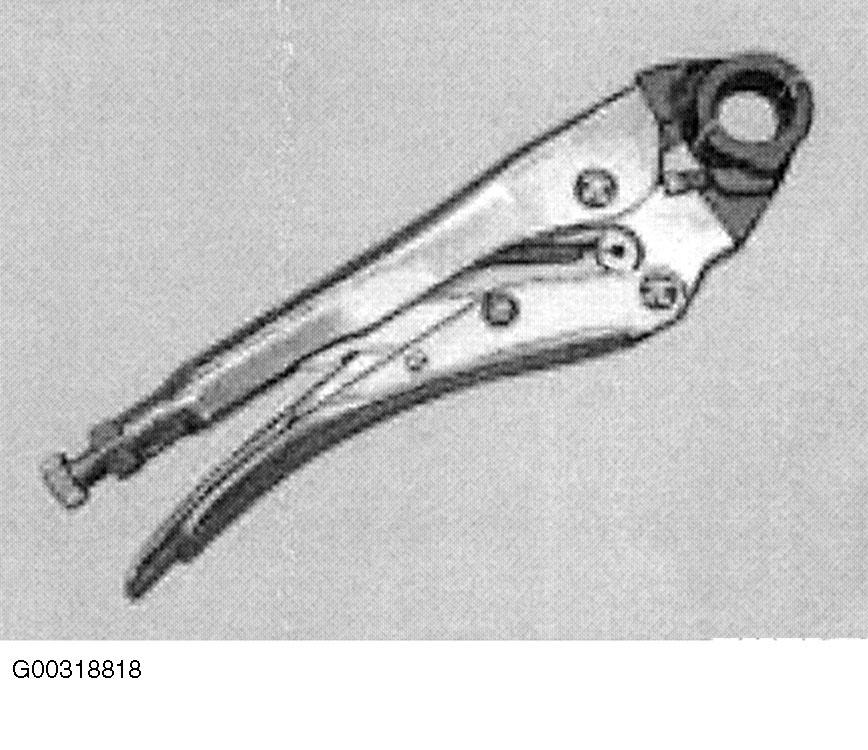

Fig 1: Oil Line Disconnect Tool

This tool has been developed to aid oil line removal due to the remote location of the oil lines and oil filter housing (different from the E39 M5). Refer to repair manual section 11 42 030.

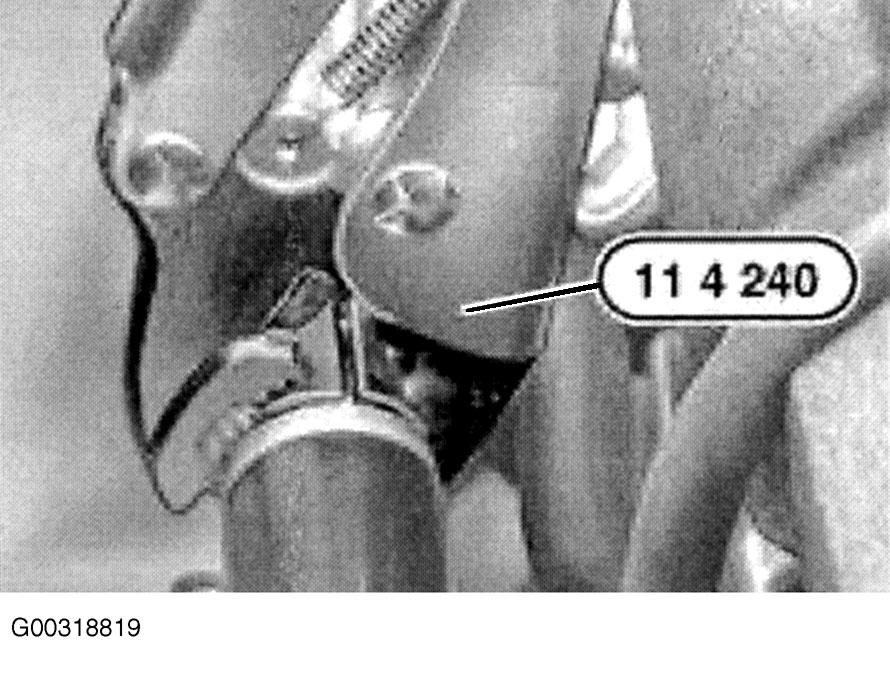

Fig 2: Removing Oil Line

WARRANTY INFORMATION

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
