86 21 ... Installing rubber roof strip

NOTE: Pull off old rubber roof strip and remove remaining traces of adhesive with universal cleaner, refer to BMW Operating Fluids . Rub down with a dry cloth.

Select rubber roof strip according to length of roof recess (1).

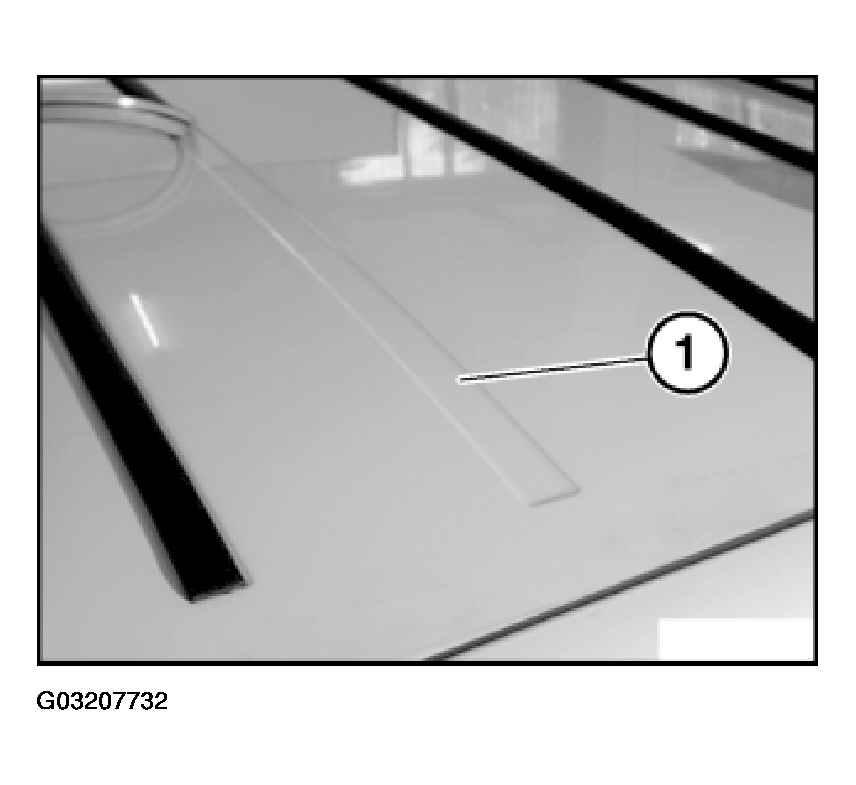

Fig 1: Identifying Roof Recess

Courtesy of BMW OF NORTH AMERICA, INC.

Arrange chamfered ends of rubber roof strip to match shape of roof recess (1).

Installation:

Pretreat bonding area and stick on rubber roof strip according to manufacturer's instructions.
