Checking For Leaks

Check all visible connections, hoses, lines and steering gear for traces of fluid. See Fig 1.

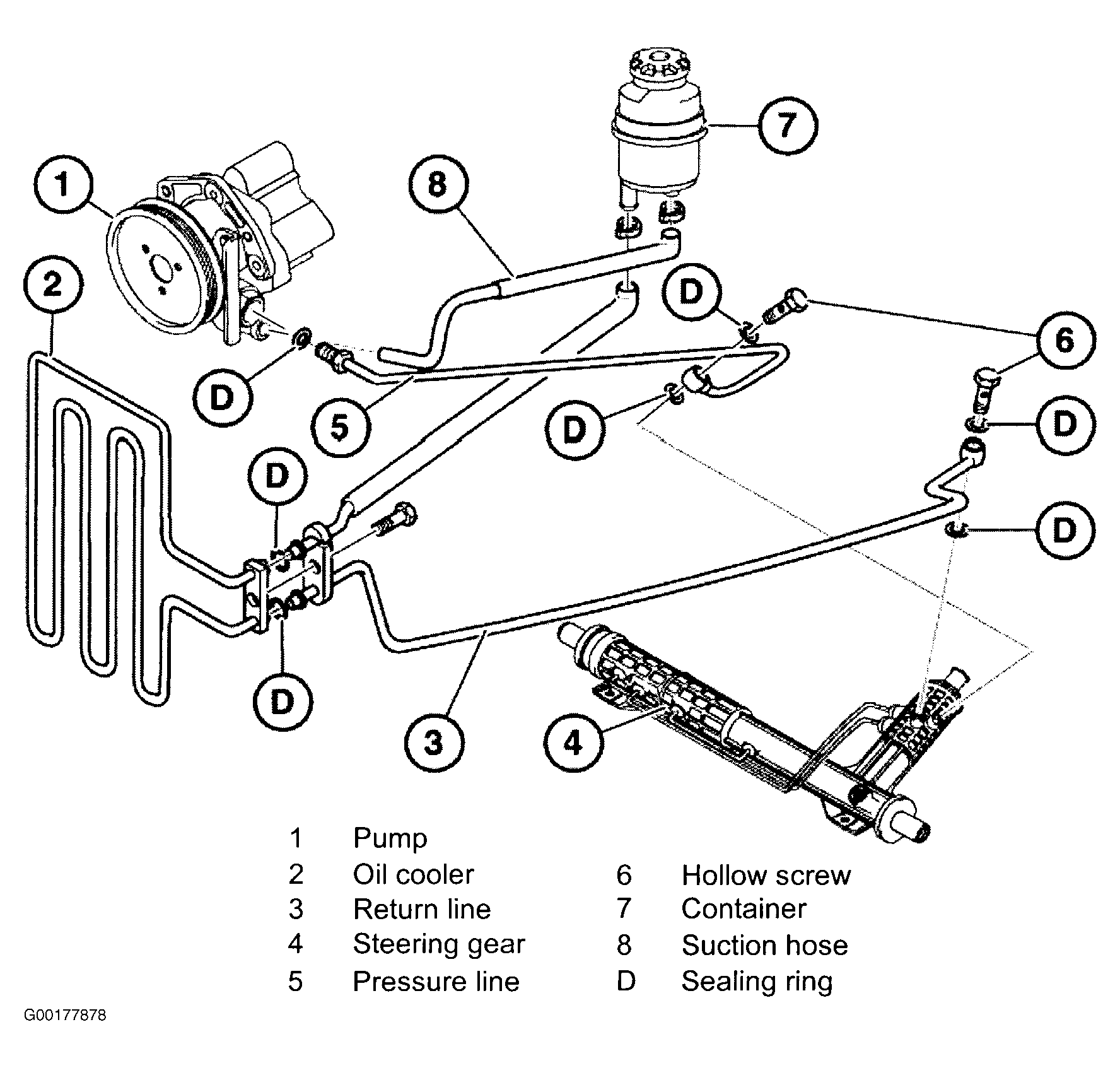

Fig 1: Power Steering Components & Lines
G00177878Courtesy of BMW OF NORTH AMERICA, INC.
