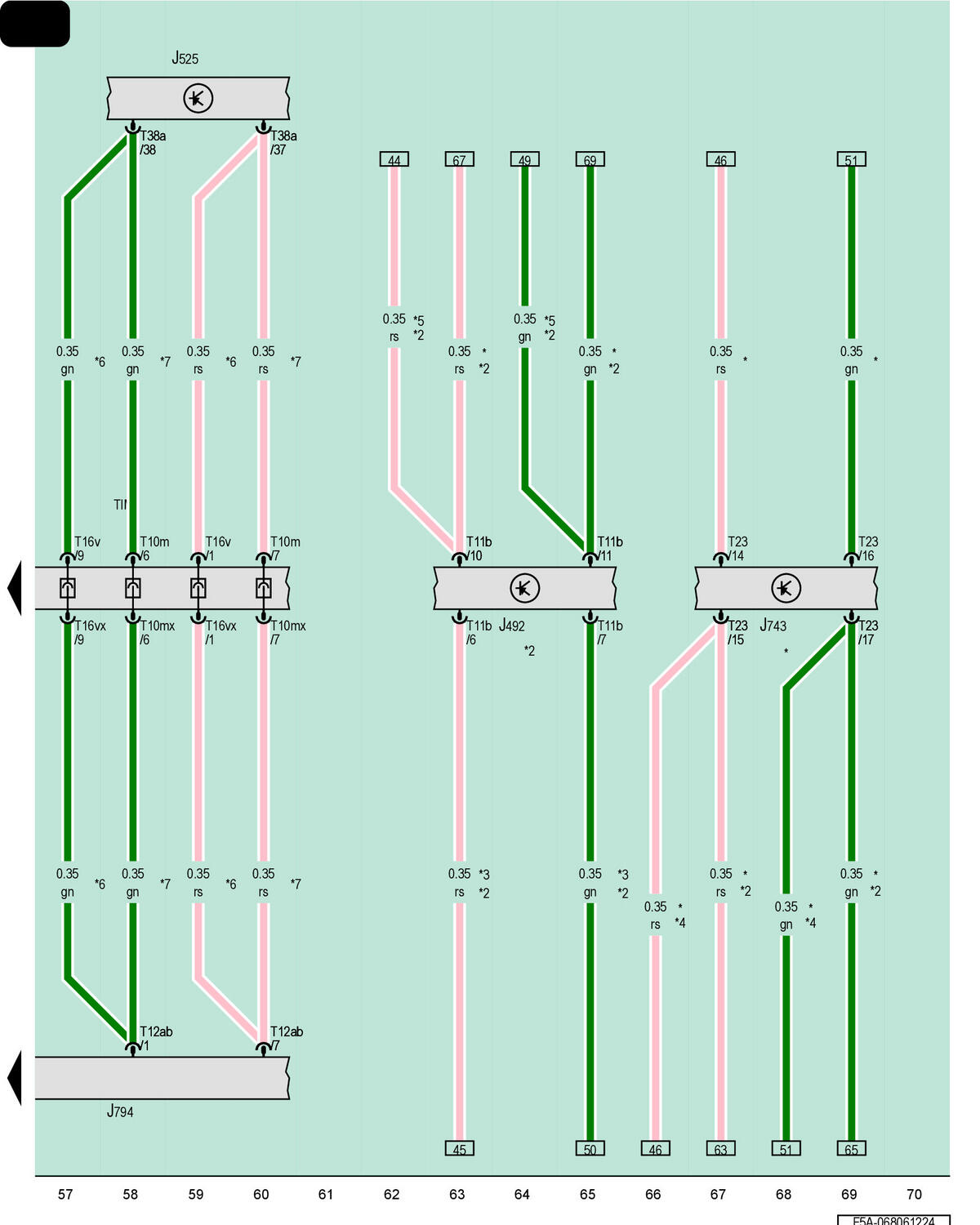

All-Wheel Drive Control Module, Digital Sound System Control Module, Dual-Clutch Transmission MECHATRONIC, Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J492

All-Wheel Drive Control Module

J525

Digital Sound System Control Module

J743

Dual-Clutch Transmission Mechatronic

J794

Information Electronics Control Module 1

T10m

10-Pin Connector, Black

T10mx

10-Pin Connector, Black

T11b

11-Pin Connector, Black

T12ab

12-Pin Connector, Green

T16v

16-Pin Connector, Brown

T16vx

16-Pin Connector, Brown

T23

23-Pin Connector, Black

T38a

38-Pin Connector, Black

TIM

Coupling Point in Interior, Center

*

For Vehicles with Automatic Transmission (DSG)

*2

For AWD Vehicles

*3

For Vehicles with Automatic Transmission

*4

For Vehicles Without All-Wheel Drive

*5

For Vehicles with a Manual Transmission

*6

From December 2019

*7

Through November 2019
