00 General, Technical Data: Tools

WARNING: This page is about a different car, the 2025 Audi S5 Sportback, 2025 Audi RS 5 Sportback, and 2025 Audi A5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Resistance Spot Welder :VAS6239 A
Resistance Spot Welder :VAS6525
Resistance Spot Welder :VAS6530A
Resistance Spot Welder :VAS6535
Resistance Spot Welder :VAS6545A
Gas-Shielded Welder :VAS6044 or :VAS6045
Welding Unit :VAS2001C
FD Bolt Socket :VAS852007A
Flow Drill Socket Repair Set :VAS6631
Measuring and Alignment System :VAS6526 Basic
Measuring and Alignment System - Professional :VAS6527
Measuring and Alignment System - Professional Plus :VAS6528
Welding Emission Exhaust System :VAS892 003
Fume Extraction Swing Arm :VAS6571/1
Pneumatic Brush Grinder Set :VAS6446A
Drill - 1100 Watt :VAS6267A
Flat Blade Scraper :VAS5448
Pneumatic-Hydraulic Riveter Set :VAS6790
One-Handed Angle Grinder :VAS5167B
Double Cartridge Adhesive Gun :VAS5237

Fig 1: Double Cartridge Adhesive Gun (VAS5237)
Courtesy of AUDI OF AMERICA, LLC
Telescoping Gauge - 41.5-92.5cm :VAS5159 or Telescoping Gauge - 92-260cm :VAS5160

Fig 2: Alignment Bracket Set -- VAS5160
Courtesy of AUDI OF AMERICA, LLC
Mechanical Door Brace : VAG1438

Fig 3: Door Brace (V.A.G 1438)
Courtesy of AUDI OF AMERICA, LLC
Double Suction Lifter : VAG1344 or Installation Magnets :VAS6739

Fig 4: Double Suction Lifter
Courtesy of AUDI OF AMERICA, LLC
Gauge - Gap Adjustment :3371

Fig 5: 3371 Special Tool
Courtesy of AUDI OF AMERICA, LLC
Pneumatic Cartridge Gun : VAG1761/1

Fig 6: Compressed Air Gun (V.A.G 1761/1)
Courtesy of AUDI OF AMERICA, LLC
Tensioning Strap :T10038

Fig 7: Identifying Special Tools -- Tensioning Belt T10038
Courtesy of AUDI OF AMERICA, LLC
Pneumatic Jig Saw :VAS5108 or Body Saw :VAS6598 or Pneumatic Body Saw :VAS6780

Fig 8: Aluminum Shielded Arc Welder - (VAS6388)
Courtesy of AUDI OF AMERICA, LLC

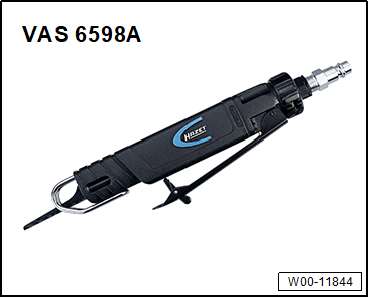

Pneumatic Body Saw :VAS6598A

Courtesy of AUDI OF AMERICA, LLC
Spot-Weld Breaker :VAS6322 A or

Fig 9: Spot Weld Breaker (VAS6322 A)
Courtesy of AUDI OF AMERICA, LLC
Spot Weld Breaker :VAS882001

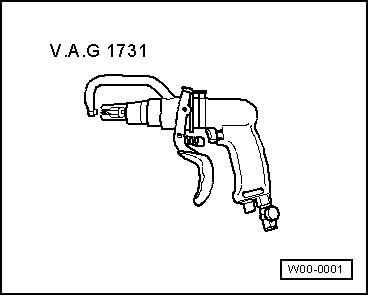

Fig 10: Spot Weld Breaker (VAG1731)
Courtesy of AUDI OF AMERICA, LLC
Cartridge Heater : VAG1939 A

Fig 11: Cartridge Heater
Courtesy of AUDI OF AMERICA, LLC

Rechargeable Riveter :VAS843 001

Fig 12: Aluminum Shielded Arc Welder - (VAS6388)

Courtesy of AUDI OF AMERICA, LLC
