Body Front: Notes

WARNING: This page is about a different car, the 2025 Audi S5 Sportback, 2025 Audi RS 5 Sportback, and 2025 Audi A5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

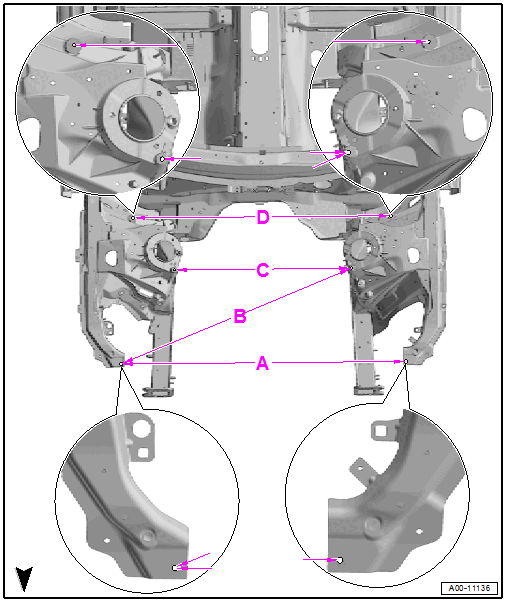

Fig 1: Body Front Dimensions And Measurement Points
GWWA00-11136Courtesy of AUDI OF AMERICA, LLC
  1. A -

    1250 mm ± 2.0 mm

    Distance between fender mounts.

  2. B -

    1092 mm ± 2.0 mm

    Diagonal dimension of suspension strut tower mounts.

  3. C -

    780 mm ± 2.0 mm

    Distance for suspension strut tower mounts.

  4. C -

    1130 mm ± 2.0 mm

    Distance to the rear suspension strut tower mount.

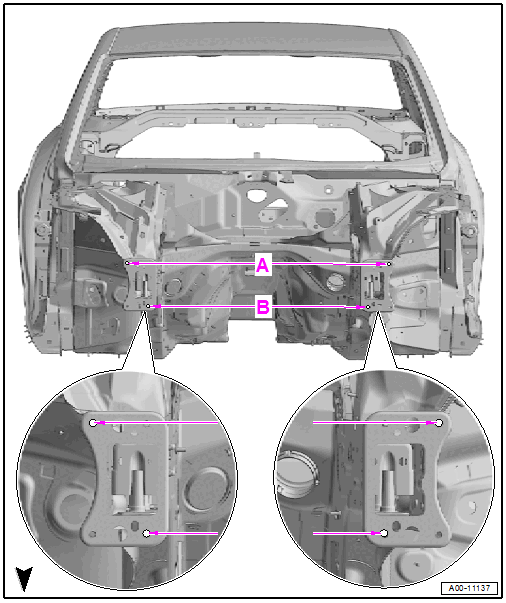

Fig 2: Body Front Dimensions And Measurement Points
GWWA00-11137Courtesy of AUDI OF AMERICA, LLC
  1. A -

    1015 mm ± 2.0 mm

    Distance between the impact absorber mounts.

  2. B -

    853 mm ± 2.0 mm

    Distance between the impact absorber mounts.
