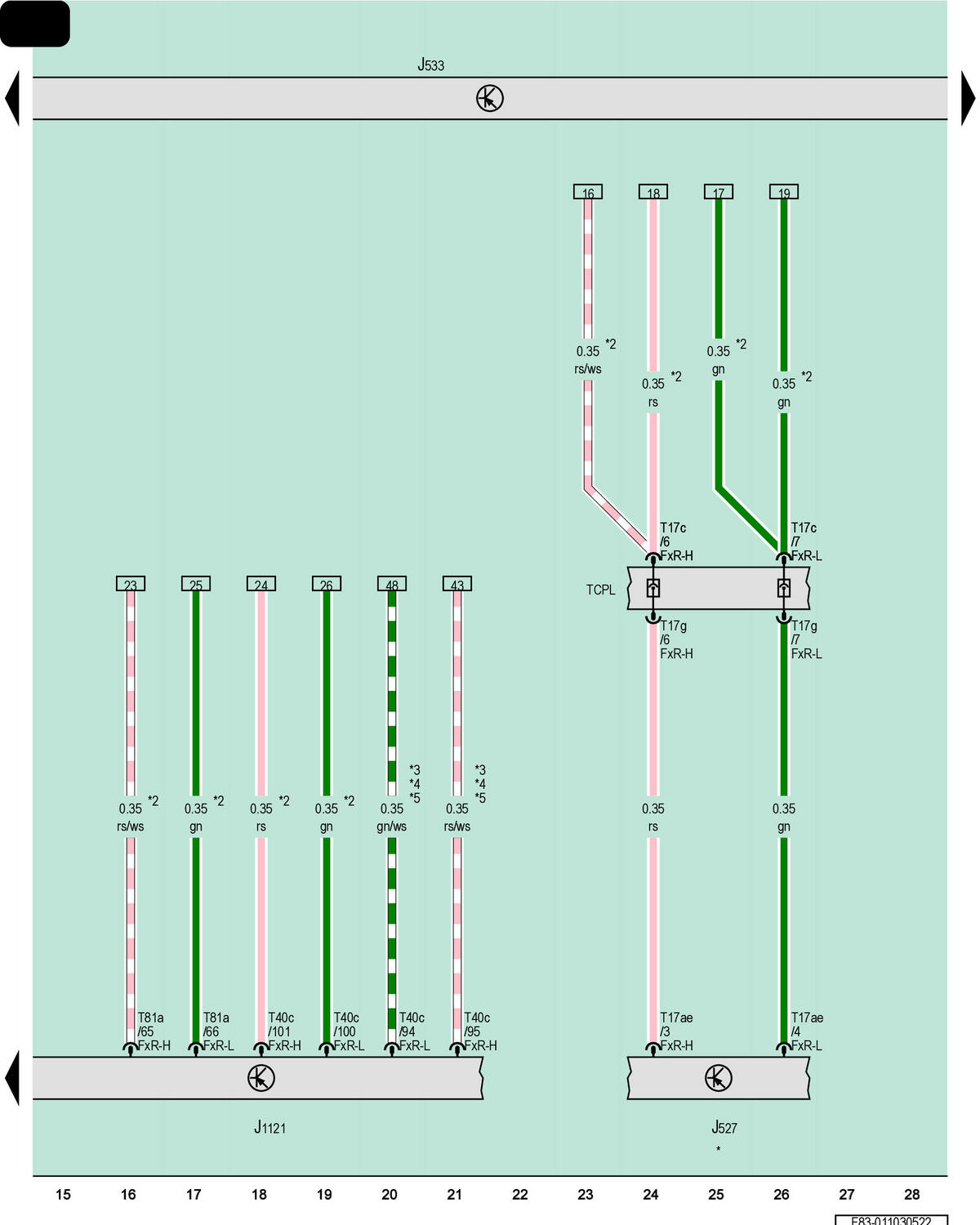

Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Driver Assistance Systems Control Module
J527
Steering Column Electronics Control Module
J533
Data Bus on Board Diagnostic Interface
J1121
Driver Assistance Systems Control Module
T17ae
17-Pin Connector, Yellow
T17c
17-Pin Connector, Red
T17g
17-Pin Connector, Red
T40c
40-Pin Connector, Black
T81a
81-Pin Connector, Black
TCPL
Coupling Point on Instrument Panel, Left
*
Refer to Applicable Steering Wheel Wiring Diagram
*2
Depending on Equipment
*3
For Vehicles Without Parallel Parking Assistance
*4
For Vehicles Without Intersection Assistant
*5
From November 2021
