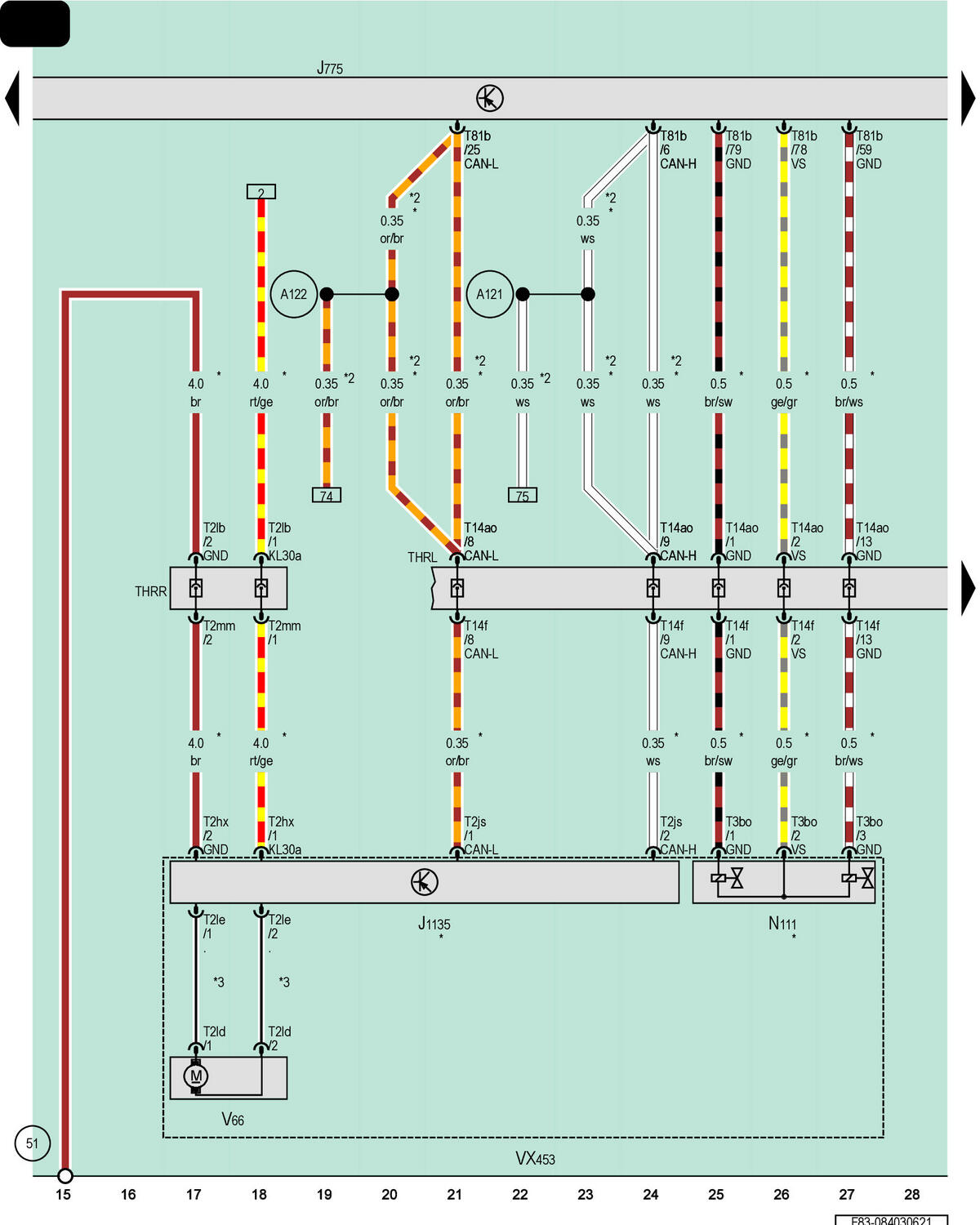

Drivetrain Control Module, Air Compressor For Ride Control

Courtesy of AUDI OF AMERICA, LLC

J775

Drivetrain Control Module

J1135

Level Control System Compressor Electronics

N111

Level Control System Solenoid

T2hx

2-Pin Connector, Brown

T2js

2-Pin Connector, Black

T2lb

2-Pin Connector, Black

T2ld

2-Pin Connector

T2le

2-Pin Connector

T2mm

2-Pin Connector, Black

T3bo

3-Pin Connector, Black

T14ao

14-Pin Connector, Black

T14f

14-Pin Connector, Black

T81b

81-Pin Connector, Black

THRL

Coupling Point in Luggage Compartment, Left

THRR

Coupling Point in Luggage Compartment, Right

V66

Level Control System Compressor Motor

VX453

Air Compressor for Ride Control

51

Ground Connection in Luggage Compartment, Right

A121

High Bus Connection (in Instrument Panel Wiring Harness)

A122

Low Bus Connection (in Instrument Panel Wiring Harness)

*

For Vehicles with Air Suspension

*2

Depending on Equipment

*3

Adapter Cable
