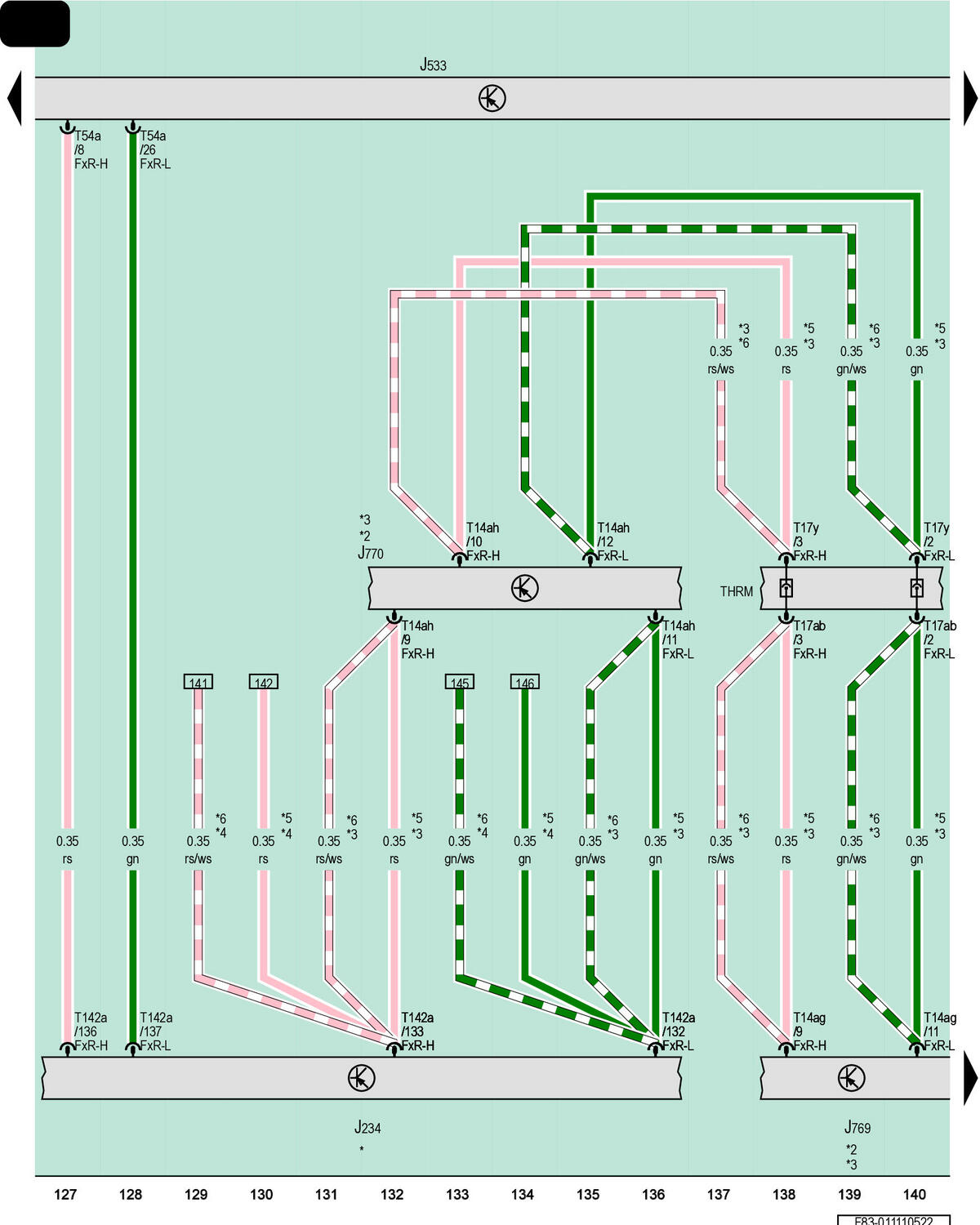

Airbag Control Module, Data Bus On Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2
J234
Airbag Control Module
J533
Data Bus on Board Diagnostic Interface
J769
Lane Change Assistance Control Module
J770
Lane Change Assistance Control Module 2
T14ag
14-Pin Connector, Black
T14ah
14-Pin Connector, Black
T17ab
17-Pin Connector, Red
T17y
17-Pin Connector, Red
T54a
54-Pin Connector, Black
T142a
142-Pin Connector, Yellow
THRM
Coupling Point in Luggage Compartment, Center
*
Refer to Applicable Airbag Wiring Diagram
*2
Refer to Applicable Lane Change Assistance Wiring Diagram
*3
For Vehicles with Lane Change Assistance Control Module
*4
For Vehicles Without Lane Change Assistance Control Module
*5
Omitted as a Running Change
*6
Running Change
