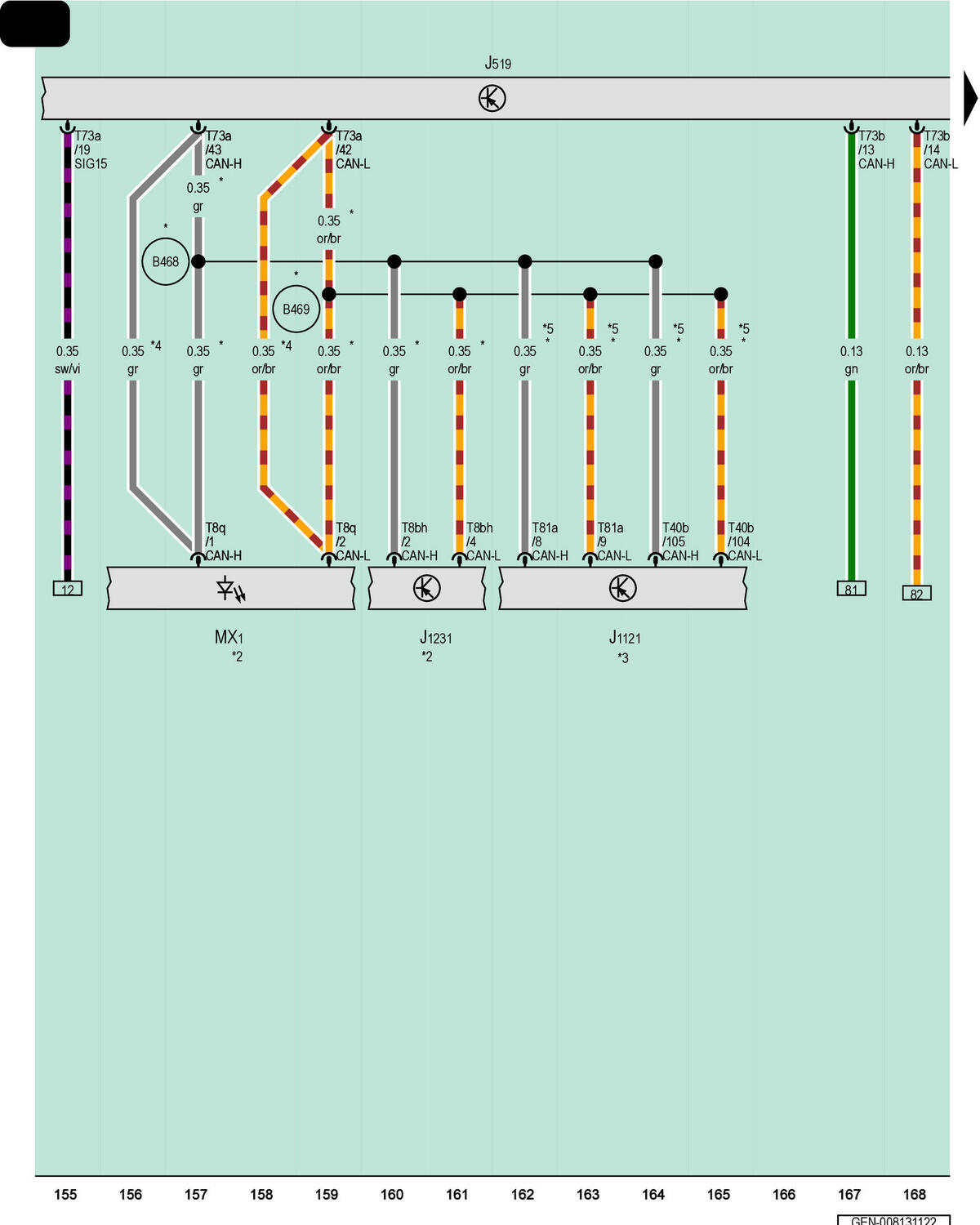

Vehicle Electrical System Control Module, Driver Assistance Systems Control Module, Control Module For Projection Module In Matrix Headlamps, Left Front Headlamp

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J1121

Driver Assistance Systems Control Module

J1231

Control Module for Projection Module in Matrix Headlamps

MX1

Left Front Headlamp

T8bh

8-Pin Connector, Black

T8q

8-Pin Connector, Black

T40b

40-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

T81a

81-Pin Connector, Black

B468

Connection 4 (in Main Wiring Harness)

B469

Connection 5 (in Main Wiring Harness)

*

For Driver Assistance System

*2

Refer to Applicable Wiring Diagram for LED Headlamps

*3

Refer to Applicable Wiring Diagram

*4

Not for Vehicles with Driver Assistance System

*5

Depending on Equipment
