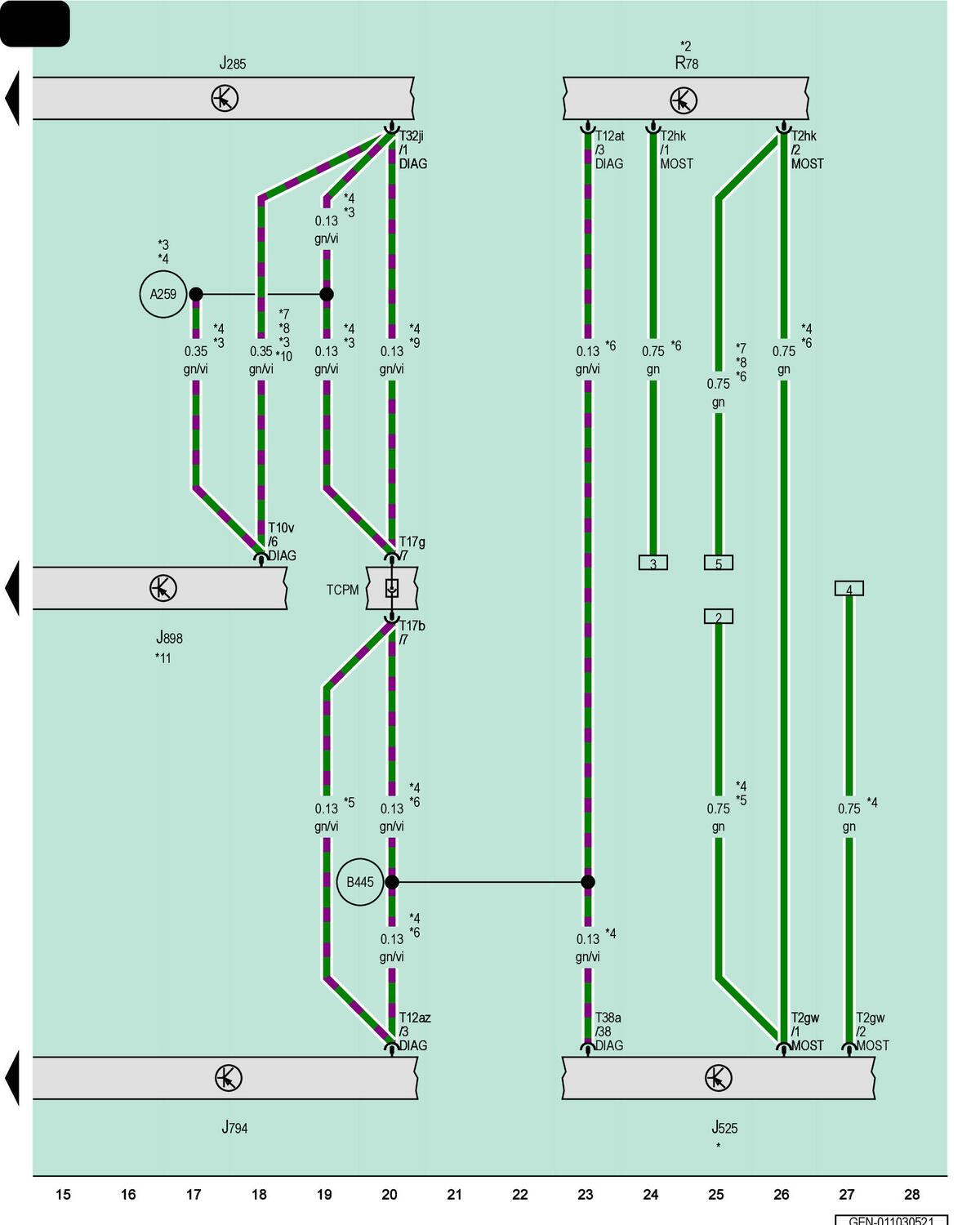

Instrument Cluster Control Module, Digital Sound System Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module, TV Tuner
J285
Instrument Cluster Control Module
J794
Information Electronics Control Module 1
J898
Windshield Projection Head Up Display Control Module
R78
TV Tuner
T2hk
2-Pin Connector, Black
T12at
12-Pin Connector, Black
T12az
12-Pin Connector, Gray
T17b
17-Pin Connector, Blue
T17g
17-Pin Connector, Blue
T18a
18-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
A259
Connection 3 (in Instrument Panel Wiring Harness)
B445
OBD Connection 2 (in Main Wiring Harness)
*
For Vehicles with Windshield Projection
*2
For Vehicles with TV Tuner
*3
For Vehicles Without TV Tuner
*4
For Vehicles Without Windshield Projection
*5
Refer to Applicable Wiring Diagram for Instrument Cluster
*6
Refer to Applicable MMI (Information Electronics) Wiring Diagram
