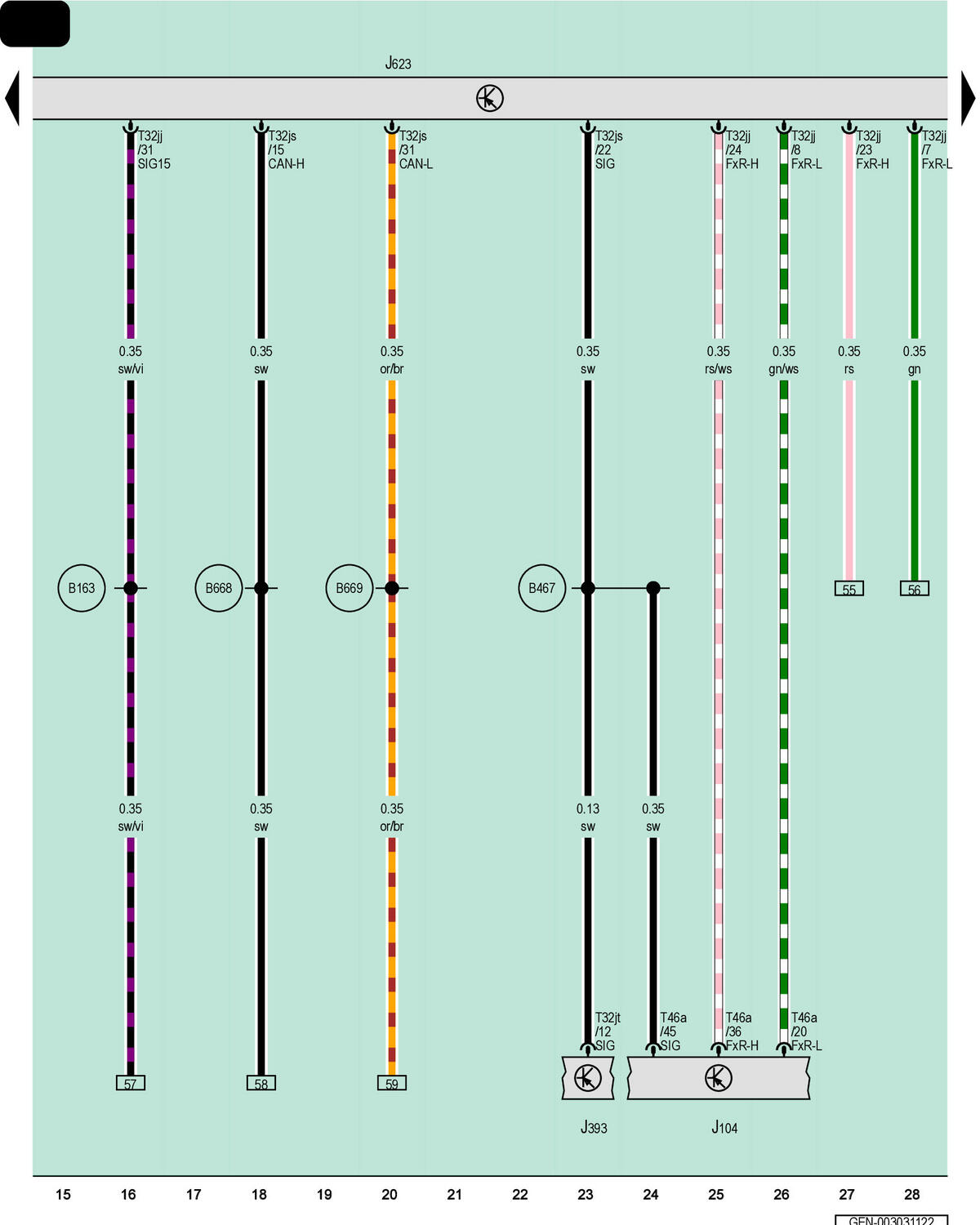

Abs Control Module, Comfort System Central Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

J393

Comfort System Central Control Module

J623

Engine/Motor Control Module

T32jj

32-Pin Connector, Gray

T32js

32-Pin Connector, Blue

T32jt

32-Pin Connector, Black

T46a

46-Pin Connector, Black

B163

Positive Connection 1 (15) (in Interior Wiring Harness)

B467

Connection 3 (in Main Wiring Harness)

B668

CAN Bus Extended High Connection 2 (in Main Wiring Harness)

B669

CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
