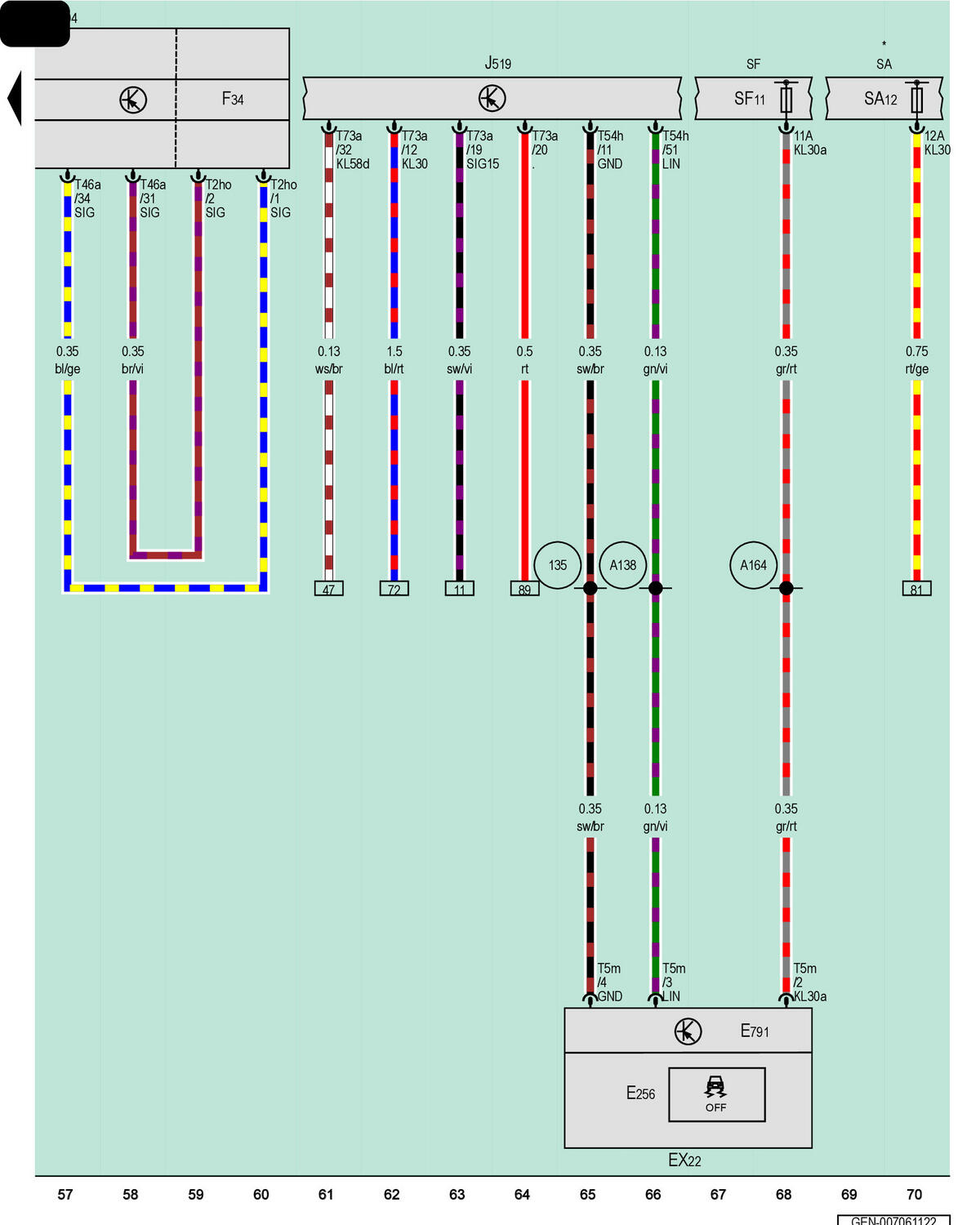

Center Instrument Panel Switch Module, ASR/Esp Button, Abs Control Module, Vehicle Electrical System Control Module, Fuse Panel A
EX22
Center Instrument Panel Switch Module
E256
ASR/ESP Button
E791
Control Unit 1 for Driving and Convenience Functions
F34
Brake Fluid Level Warning Switch
J104
ABS Control Module
J519
Vehicle Electrical System Control Module
SA
Fuse Panel A
SF
Fuse Panel F
SF11
Fuse 11 (On Fuse Panel F)
SA12
Fuse 12 (On Fuse Panel A)
T2ho
2-Pin Connector, Gray
T5m
5-Pin Connector, Brown
T46a
46-Pin Connector, Black
T54h
54-Pin Connector, Black
T73a
73-Pin Connector, Black
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
A138
Connection 2 (in Instrument Panel Wiring Harness)
A164
Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
