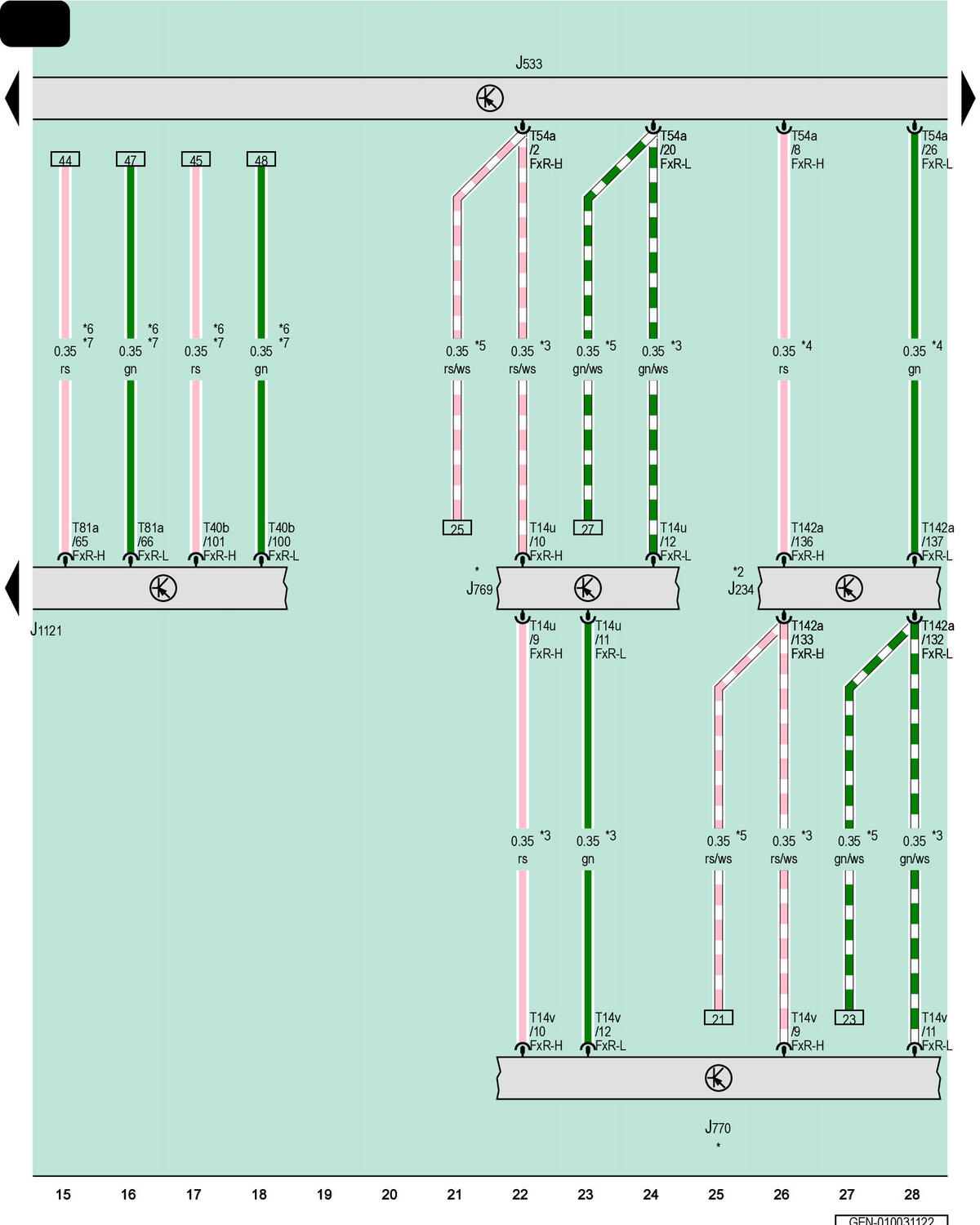

Airbag Control Module, Data Bus On Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J533

Data Bus on Board Diagnostic Interface

J769

Lane Change Assistance Control Module

J770

Lane Change Assistance Control Module 2

J1121

Driver Assistance Systems Control Module

T14u

14-Pin Connector, Black

T14v

14-Pin Connector, Black

T40b

40-Pin Connector, Black

T54a

54-Pin Connector, Black

T81a

81-Pin Connector, Black

T142a

142-Pin Connector, Yellow

*

Refer to Applicable Lane Change Assistance Wiring Diagram

*2

Refer to Applicable Airbag Wiring Diagram

*3

For Vehicles with Lane Change Assistance

*4

For Vehicles with Adaptive Cruise Control (ACC)

*5

For Vehicles Without Lane Assistance

*6

Depending on Equipment

*7

For Driver Assistance System
