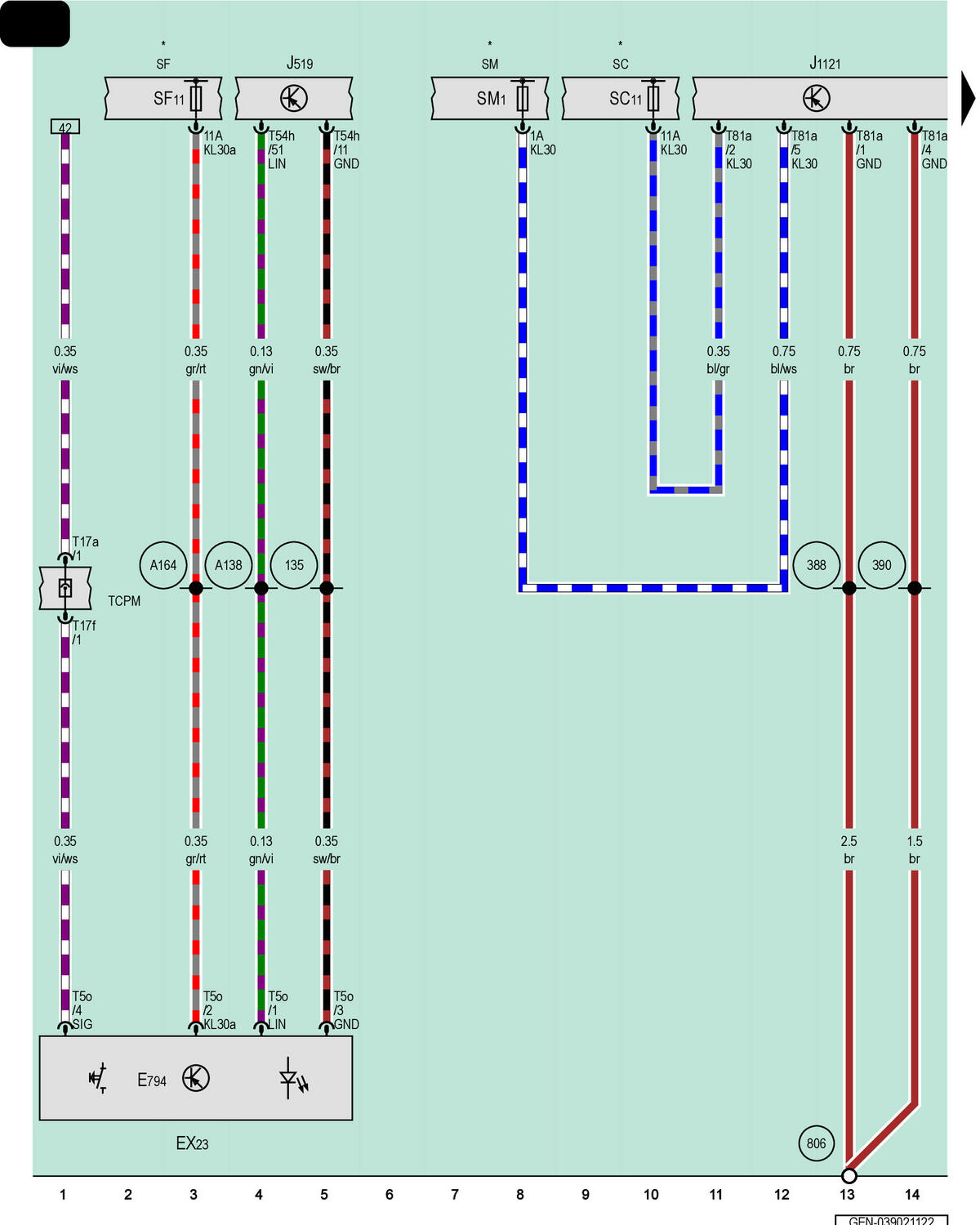

Center Console Switch Module 1, Vehicle Electrical System Control Module, Driver Assistance Systems Control Module
EX23
Center Console Switch Module 1
E794
Control Unit 2 for Driving and Convenience Functions
J519
Vehicle Electrical System Control Module
J1121
Driver Assistance Systems Control Module
SC
Fuse Panel C
SC11
Fuse 11 (On Fuse Panel C)
SF
Fuse Panel F
SM
Fuse Panel M
SM1
Fuse 1 on Fuse Panel M
SF11
Fuse 11 (On Fuse Panel F)
T5o
5-Pin Connector, Black
T17a
17-Pin Connector, Red
T17f
17-Pin Connector, Red
T54h
54-Pin Connector, Black
T81a
81-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
388
Ground Connection 23 (in Main Wiring Harness)
390
Ground Connection 25 (in Main Wiring Harness)
806
Ground Connection 4 on Center Tunnel
A138
Connection 2 (in Instrument Panel Wiring Harness)
A164
Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
