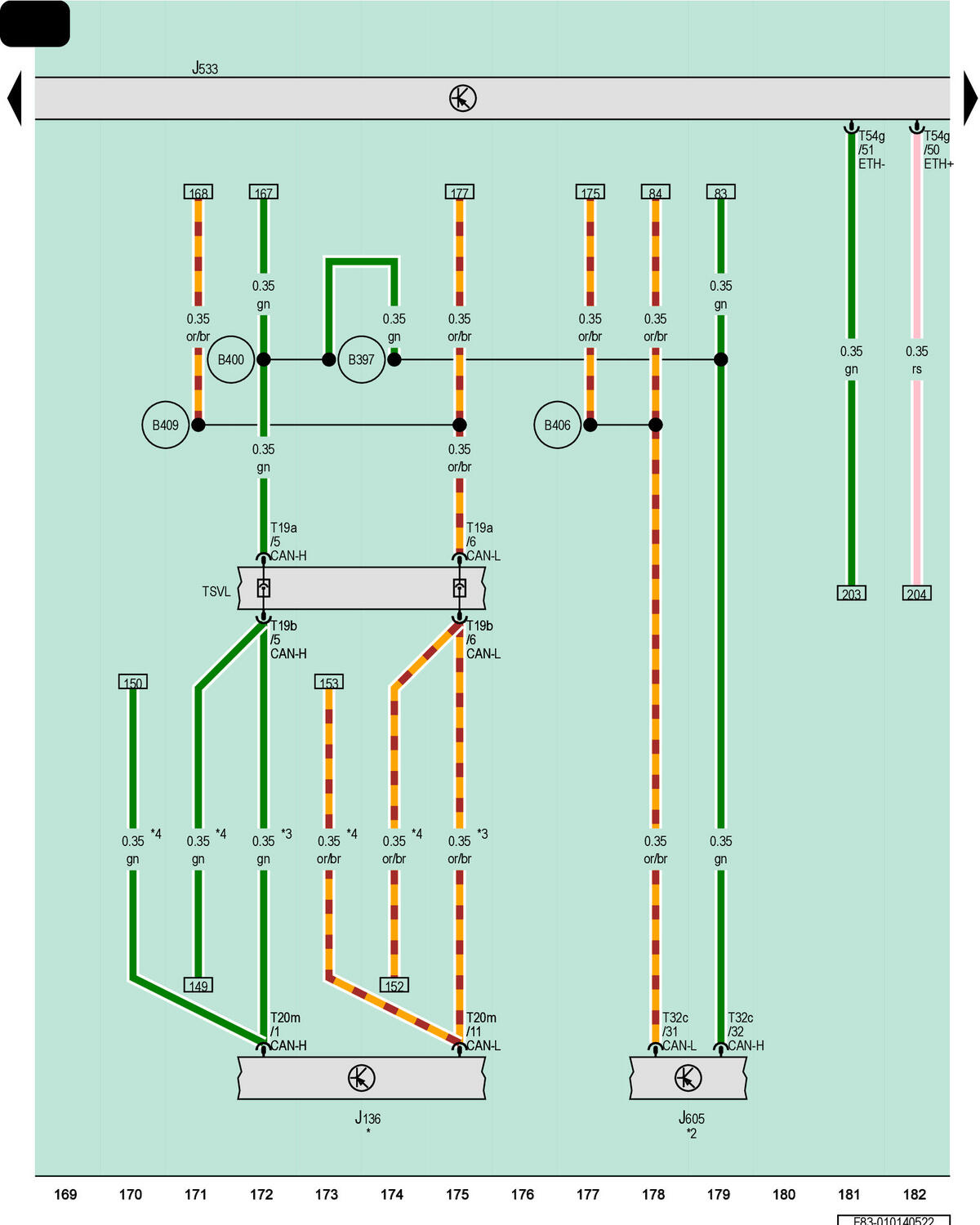

Memory Seat/Steering Column Adjustment Control Module, Data Bus On Board Diagnostic Interface, Rear Lid Control Module

Courtesy of AUDI OF AMERICA, LLC

J136

Memory Seat/Steering Column Adjustment Control Module

J533

Data Bus on Board Diagnostic Interface

J605

Rear Lid Control Module

T19a

19-Pin Connector, Black

T19b

19-Pin Connector, Black

T20m

20-Pin Connector, Black

T32c

32-Pin Connector, Black

T54g

54-Pin Connector, Gray

TSVL

Left Front Seat Coupling Station

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B400

Comfort System CAN Bus High Connection 4 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B409

Comfort System CAN Bus Low Connection 4 (in Main Wiring Harness)

*

Refer to Applicable Seat Adjustment Wiring Diagram

*2

Refer to Applicable Power Rear Lid Wiring Diagram

*3

For LHD Vehicles

*4

For RHD Vehicles
