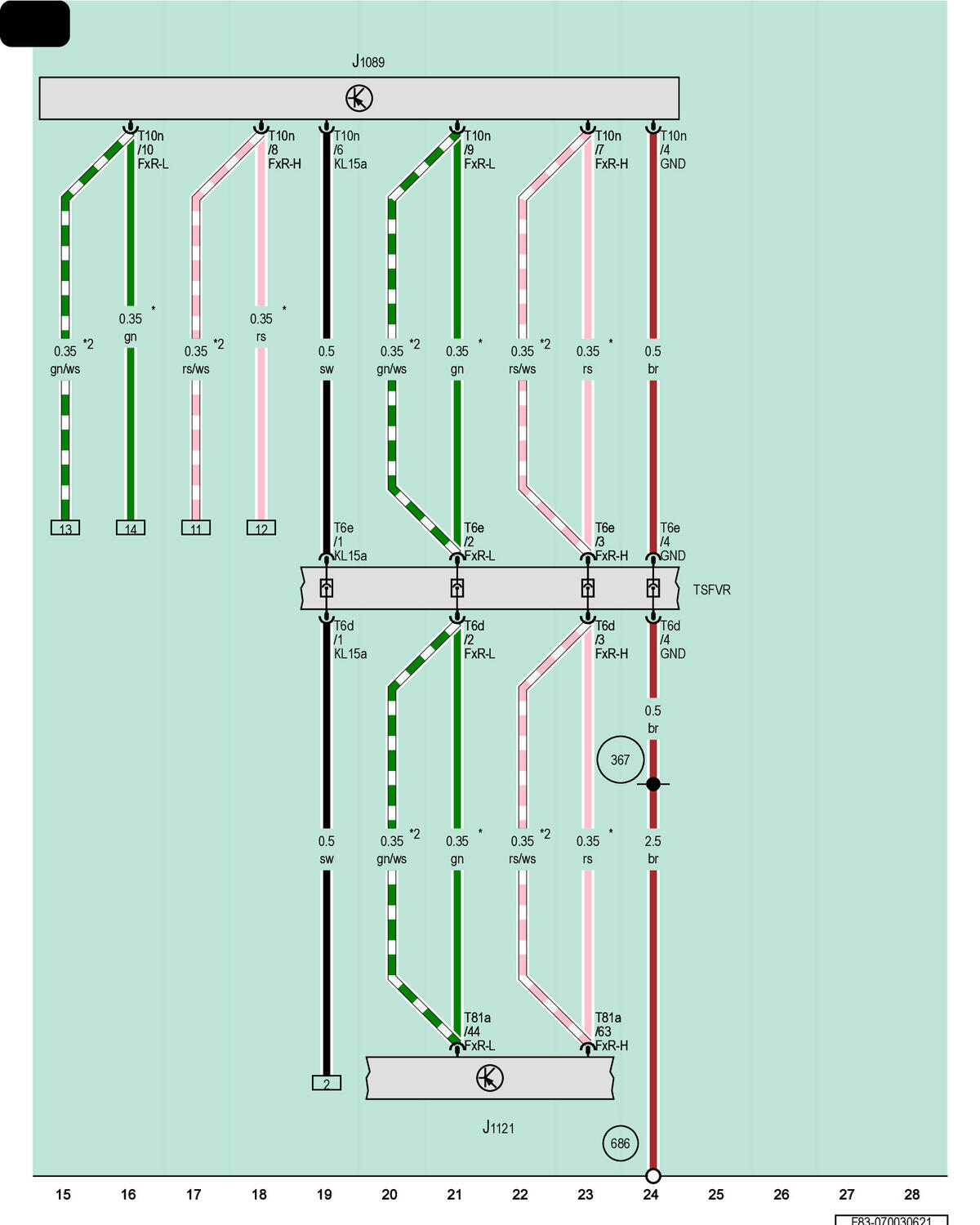

Control Module For Right Front Object Detection Radar Sensor, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J1089

Control Module for Right Front Object Detection Radar Sensor

J1121

Driver Assistance Systems Control Module

T6d

6-Pin Connector, Black

T6e

6-Pin Connector, Black

T10n

10-Pin Connector, Black

T81a

81-Pin Connector, Black

TSFVR

Coupling Point on Right Front Bumper

367

Ground Connection 2 (in Main Wiring Harness)

686

Ground Connection 2 on Right Front Longitudinal Member

*

Omitted as a Running Change

*2

Running Change
