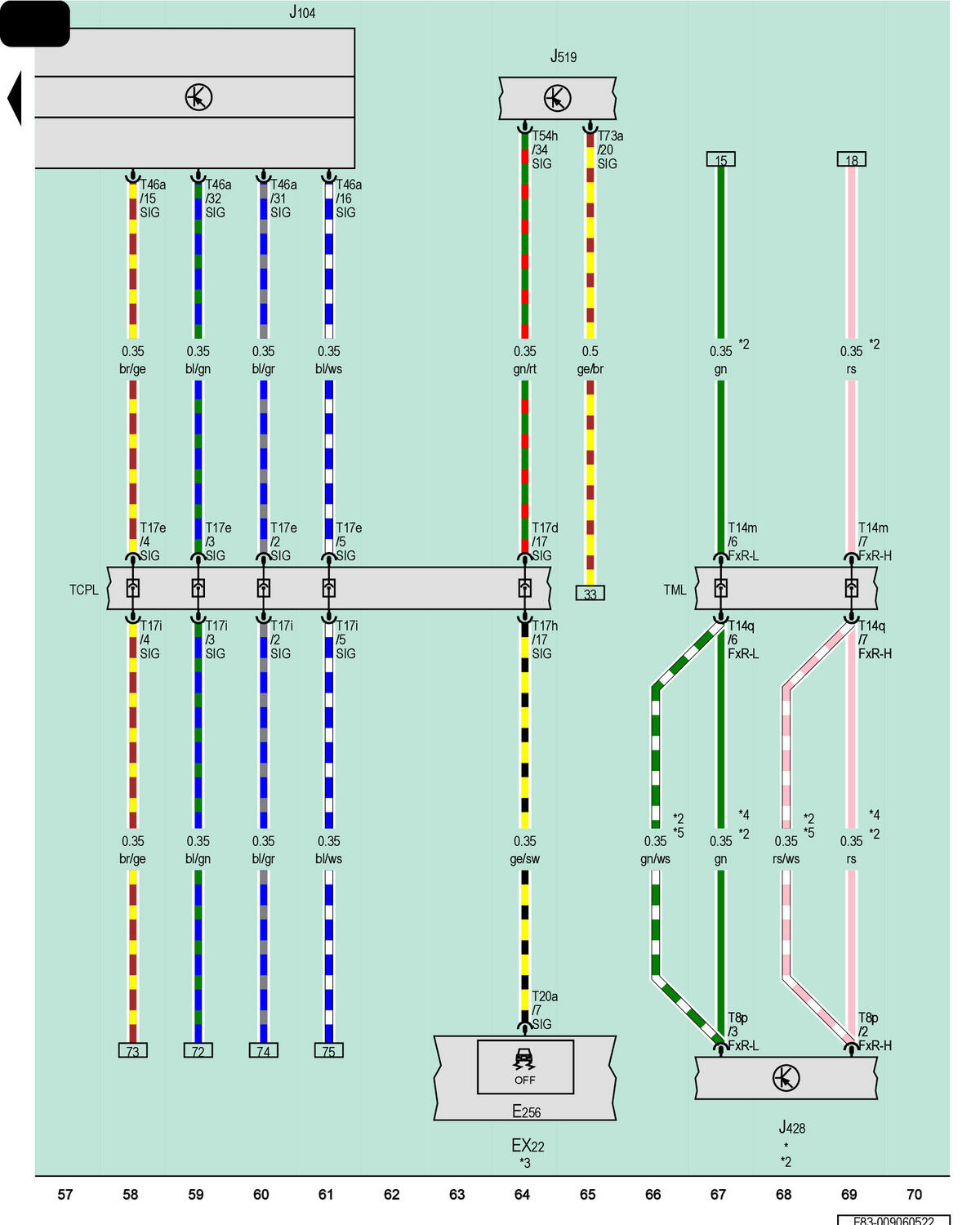

Center Instrument Panel Switch Module, Abs Control Module, Control Module For Adaptive Cruise Control, Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

EX22

Center Instrument Panel Switch Module

E256

ASR/ESP Button

J104

ABS Control Module

J428

Control Module for Adaptive Cruise Control

J519

Vehicle Electrical System Control Module

T8p

8-Pin Connector, Black

T14m

14-Pin Connector, Gray

T14q

14-Pin Connector, Gray

T17d

17-Pin Connector, Blue

T17e

17-Pin Connector, Black

T17h

17-Pin Connector, Blue

T17i

17-Pin Connector, Black

T20a

20-Pin Connector, Black

T46a

46-Pin Connector, Black

T54h

54-Pin Connector, Black

T73a

73-Pin Connector, Black

TCPL

Coupling Point on Instrument Panel, Left

TML

Coupling Point in Engine/Motor Compartment, Left

*

Refer to Applicable Wiring Diagram for Adaptive Cruise Control

*2

For Vehicles with Adaptive Cruise Control (ACC)

*3

Refer to the Applicable Wiring Diagram for the Switch and Center Console

*4

Omitted as a Running Change

*5

Running Change
