Vehicle Electrical System Control Module J519 Mount, Removing And Installing: Removing

-- Remove the Vehicle Electrical System Control Module -J519-. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE J519, REMOVING AND INSTALLING .

-- Remove the Emergency Call Module Speaker -R335- and bracket. Refer to EMERGENCY CALL MODULE SPEAKER -R335-, REMOVING AND INSTALLING .

-- Remove the Thermal Management Control Module -J1024-. Refer to THERMAL MANAGEMENT CONTROL MODULE J1024, REMOVING AND INSTALLING .

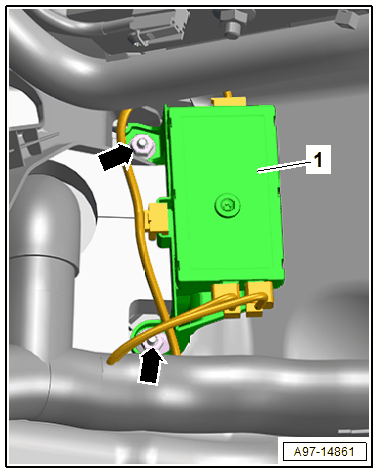

Vehicles with Radio-Controlled Parking Control Module -J1182-.

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Move the mount with control module to the side.

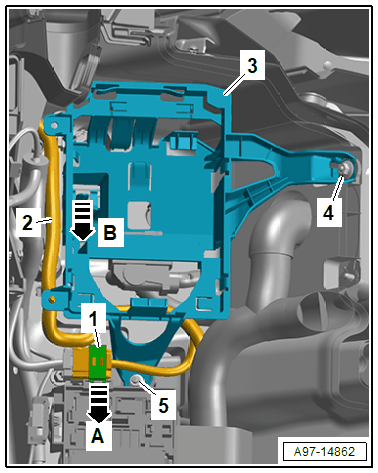

LHD vehicle

-- Release the catch -arrow A- and remove the mount -1- for the connector station.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -4-, -5-.

-- Free up the wiring harness -2-.

-- Release the catch -arrow B- and mount -3-.

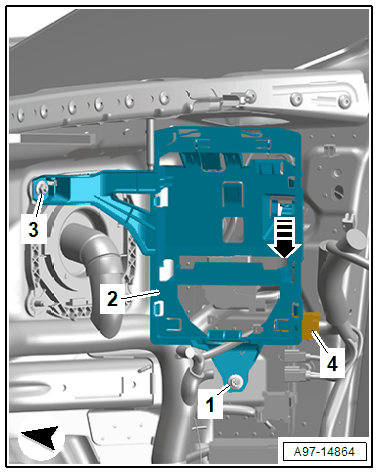

RHD vehicles

-- Disconnect the connector -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1-, -3-.

-- Release the catch -arrow- and mount -2-.

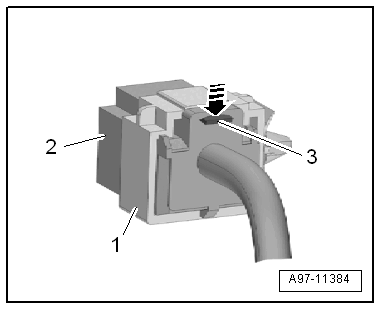

RHD vehicles

-- Release the retainer -3- -arrow- and push the connector terminal -2- out of the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness.

Continuation for all vehicles
