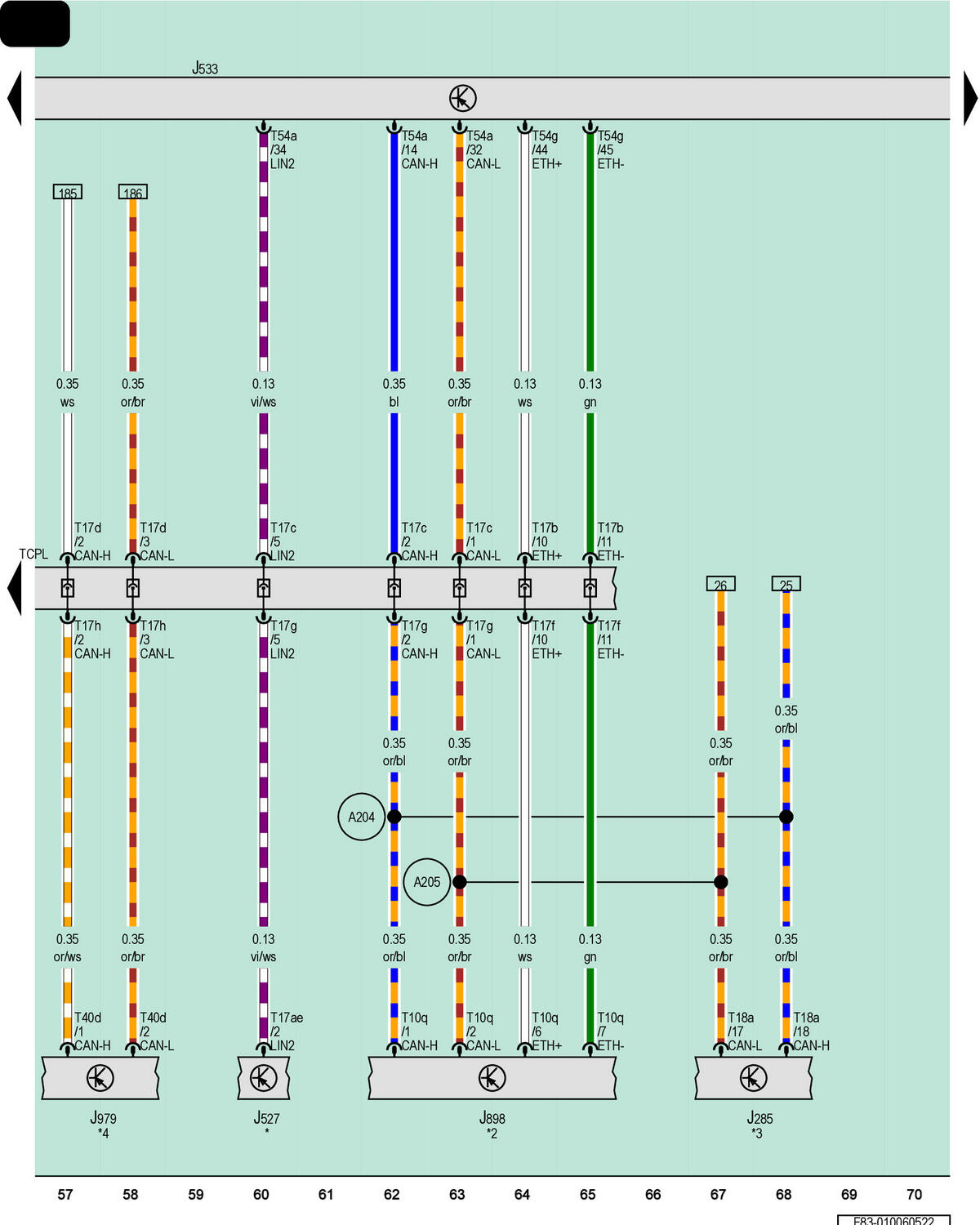

Instrument Cluster Control Module, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Windshield Projection Head Up Display Control Module, Heating And Air Conditioning Control Module
J285
Instrument Cluster Control Module
J527
Steering Column Electronics Control Module
J533
Data Bus on Board Diagnostic Interface
J898
Windshield Projection Head Up Display Control Module
J979
Heating and Air Conditioning Control Module
T10q
10-Pin Connector, Black
T17ae
17-Pin Connector, Yellow
T17b
17-Pin Connector, Brown
T17c
17-Pin Connector, Red
T17d
17-Pin Connector, Blue
T17f
17-Pin Connector, Brown
T17g
17-Pin Connector, Red
T17h
17-Pin Connector, Blue
T18a
18-Pin Connector, Black
T40d
40-Pin Connector, Black
T54a
54-Pin Connector, Black
T54g
54-Pin Connector, Gray
TCPL
Coupling Point on Instrument Panel, Left
A204
Instrument Cluster CAN Bus High Connection (in Instrument Panel Wiring Harness)
A205
Instrument Cluster CAN Bus Low Connection (in Instrument Panel Wiring Harness)
*
Refer to Applicable Steering Wheel Wiring Diagram
*2
Refer to Applicable Windshield Projection Wiring Diagram
*3
Refer to Applicable Wiring Diagram for Instrument Cluster
*4
Refer to Applicable A/C System Wiring Diagram
