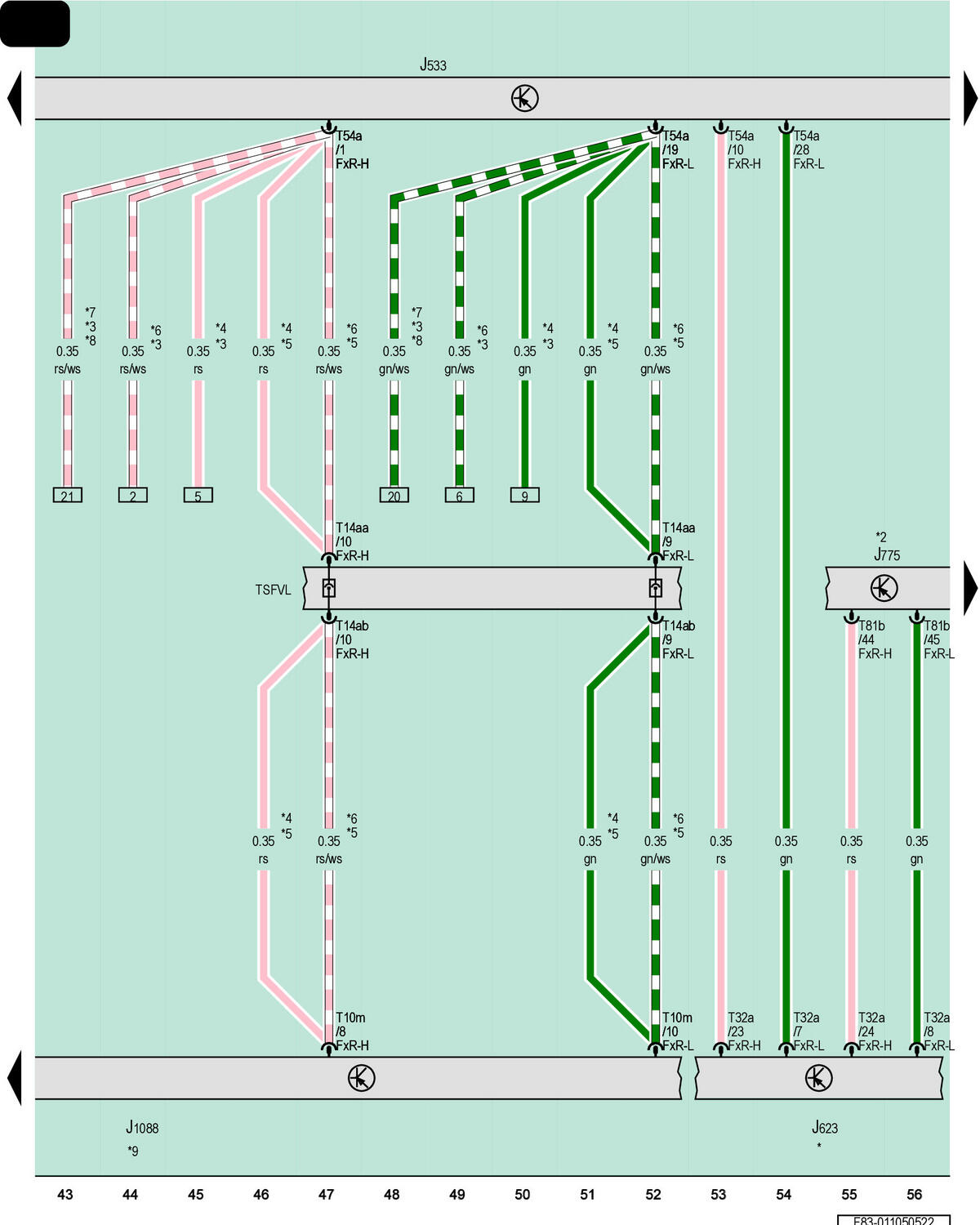

Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Drivetrain Control Module, Control Module For Left Front Object Detection Radar Sensor
J533
Data Bus on Board Diagnostic Interface
J623
Engine/Motor Control Module
J775
Drivetrain Control Module
J1088
Control Module for Left Front Object Detection Radar Sensor
T10m
10-Pin Connector, Black
T14aa
14-Pin Connector, Brown
T14ab
14-Pin Connector, Brown
T32a
32-Pin Connector, Gray
T54a
54-Pin Connector, Black
T81b
81-Pin Connector, Black
TSFVL
Coupling Point on Left Front Bumper
*
Refer to Applicable Electric Drive System Wiring Diagram
*2
Refer to Applicable Wiring Diagram for the Self-Leveling System
*3
For Vehicles Without Intersection Assistant
*4
Omitted as a Running Change
*5
For Vehicles with Intersection Assistant
*6
Running Change
*7
For Vehicles Without Parallel Parking Assistance
*8
From November 2021
*9
Refer to the Applicable Assistance Systems Wiring Diagram
