Connected Gateway, Replacing Emergency Battery: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Switch off the ignition and all electrical equipment and remove the ignition key.

-- Remove the carpet on the driver side. Refer to CARPET, REMOVING AND INSTALLING .

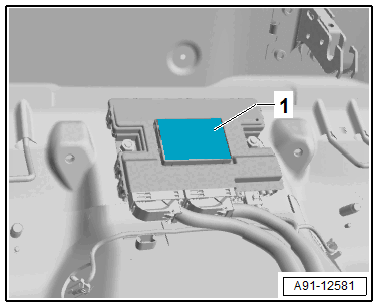

-- Release the retainers and remove the cover -1- from the Connected Gateway upward in the direction of the -arrow-.

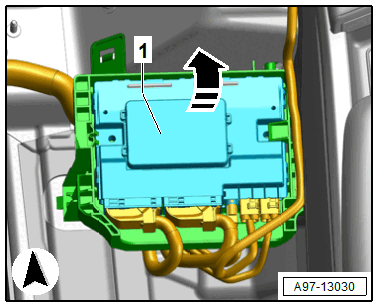

-- Tilt the Emergency Battery -- -1- out of the Data Bus on Board Diagnostic Interface -J533-.

Fig 1: Telematics Emergency Battery -A16-

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector.
