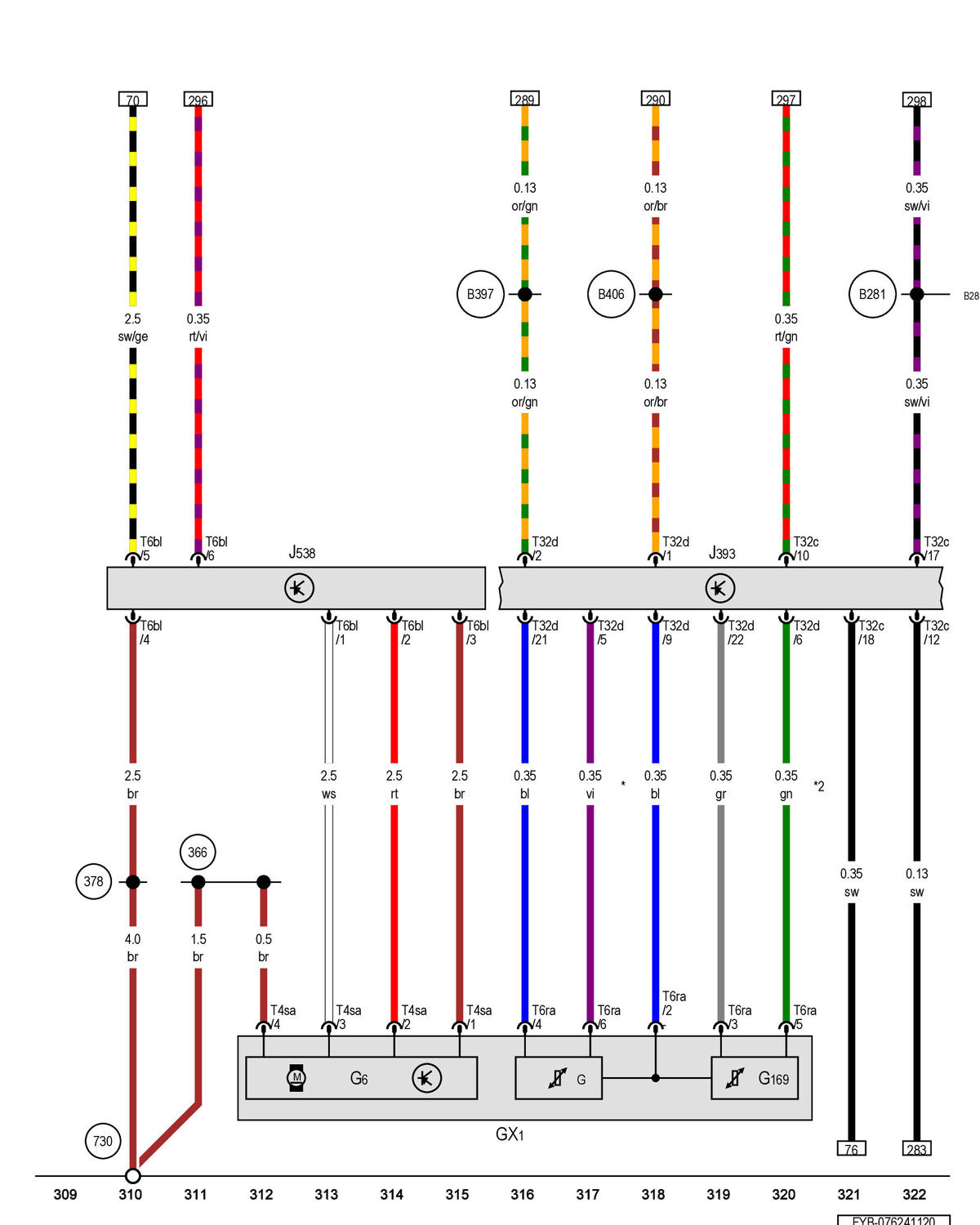

Fuel Delivery Unit, Comfort System Central Control Module, Fuel Pump Control Module
G - Fuel Level Sensor
GX1 - Fuel Delivery Unit
G6 - Transfer Fuel Pump
G169 - Fuel Level Sensor 2
J393 - Comfort System Central Control Module
J538 - Fuel Pump Control Module
T4sa - 4-Pin Connector, Black
T6bl - 6-Pin Connector, Black
T6ra - 6-Pin Connector, Black
T32c - 32-Pin Connector, Black
T32d - 32-Pin Connector, Blue
366 - Ground Connection 1 (in Main Wiring Harness)
378 - Ground Connection 13 (in Main Wiring Harness)
730 - Ground Connection 1 on Right Rear Wheel Housing
B281 - Positive Connection 5 (15a) (in Main Wiring Harness)
B397 - Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B406 - Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
