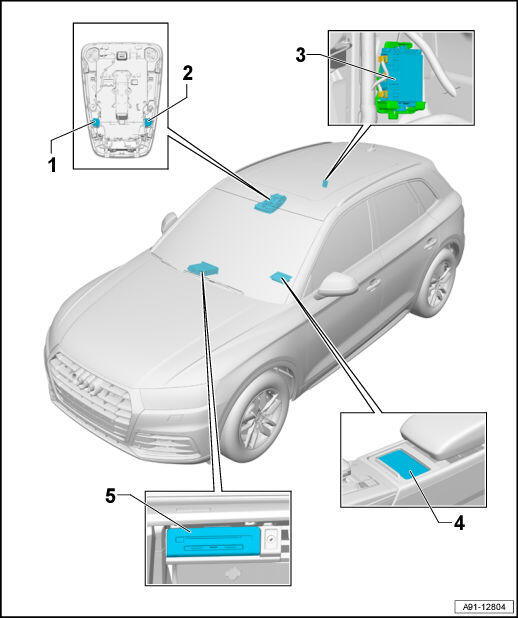

Component Location Overview - Telephone System
- Left Front Microphone -R140-
- In the Front Roof Module -WX3-
- Microphone unit overview. Refer to OVERVIEW - MICROPHONE UNIT .
- Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- Right Front Microphone -R141-
- In the Front Roof Module -WX3-
- Microphone unit overview. Refer to OVERVIEW - MICROPHONE UNIT .
- Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- Telephone Baseplate -R126-
- In the rear luggage compartment on the upper right side
- Removing and installing. Refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING .
- Cellular Telephone Amplifier -R86-
- In the rear center console storage compartment
- Audi phone box
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
